Output Configuration
HDMI Loop Out
Audio
— Establishes which audio stream is routed to the HDMI Loop Out. The three
7
options are No Audio, Follow Input audio, or the Downmix audio.
HDCP Status — Indicates the HDCP status of the output device. The HDMI input
8
negotiates and authenticates HDCP with the sink device, if the sink requires HDCP
encryption.
HDCP Mode — Allows the user to either Always Encrypt Output or to Follow
9
Input. When Always Encrypt Output is selected, the digital input reports as an
HDCP authorized sink to a source. For source devices that require encryption, enable
the HDCP Authorized checkbox (see figure 28,
Listening Mode Setup
This panel allows you to adjust the listening mode depending on the input and source
format (see figure 29).

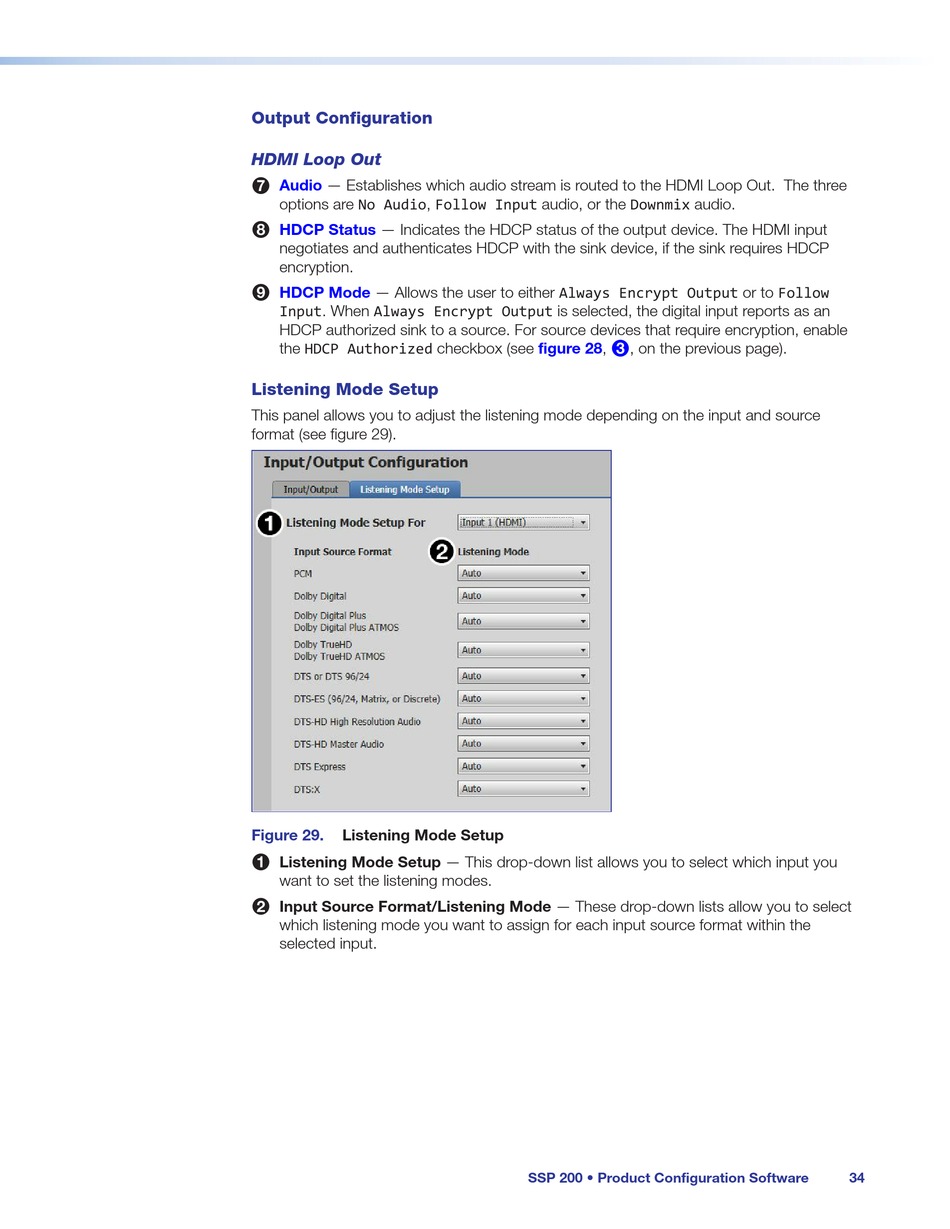

Figure 29. Listening Mode Setup
Listening Mode Setup — This drop‑down list allows you to select which input you
1
want to set the listening modes.
Input Source Format/Listening Mode — These drop‑down lists allow you to select
2
which listening mode you want to assign for each input source format within the
selected input.
, on the previous page).
3
SSP 200 • Product Configuration Software 34
