Selecting test signal source
There are three test signal options: Dolby Noise, Pink Noise, or Active Input. They
are selected from the mutually exclusive Signal Type buttons. The Dolby Noise and
Pink Noise test signals are generated by the SSP 200.
NOTE: If the active input is selected as the test signal, then its listening mode is set to
Mono to All when the test sequence is active. Its listening mode is automatically
restored once the test sequence is set to Off.
Selecting speakers to be tested
The speakers enabled in the speaker configuration are displayed in the Send Test Signal
panel. Speakers that are not enabled are not displayed. Clicking on a speaker within the

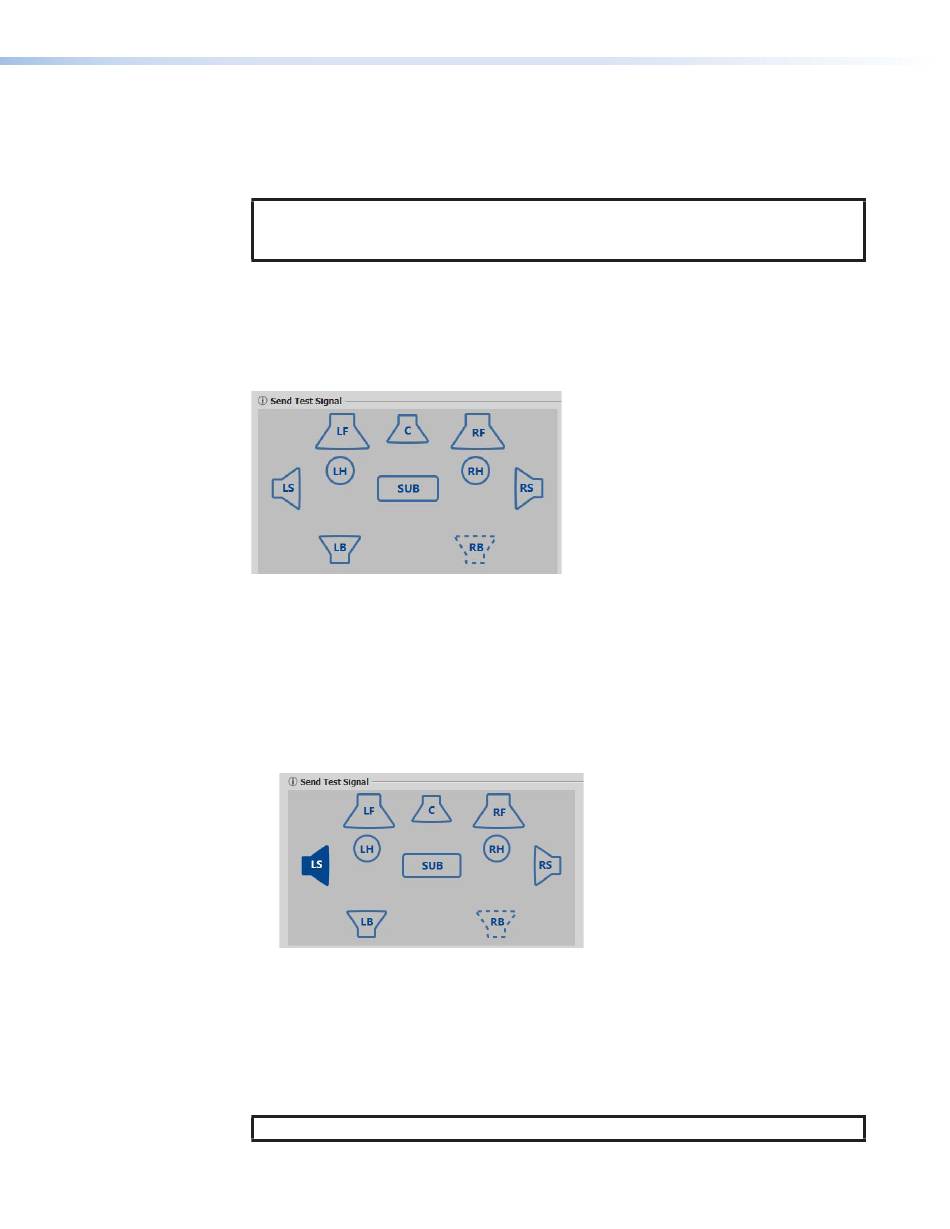

graphics box selects or deselects it from the list of speakers to be tested. For an example,
the Right Back (RB) speaker in the illustration below has been deselected.
Speaker test sequence
To run an automatic test sequence:
1.
Select the Automatic button.
2.
Select the On button to start the test sequence. This sends the selected test signal to
each speaker channel individually. Each speaker channel receives the test signal for
two seconds before the test signal is routed to the next channel in the sequence. In
the example below, the Left Surround (LS) speaker is shown currently receiving the test
signal.
3.
Select the Off button to switch off the test signal and end the test sequence.
To test the speakers manually:
1.
Select the Manual Selection button.
2.
Select the On button to start the test sequence.
3.
Select a speaker in the graphics box to route the test signal to that speaker channel.
4.
Select the Off button to switch off the test signal and end the test sequence.
Enabling the global Mute in the I/O Panel disables an active test sequence.
NOTE:
SSP 200 • Product Configuration Software
45
