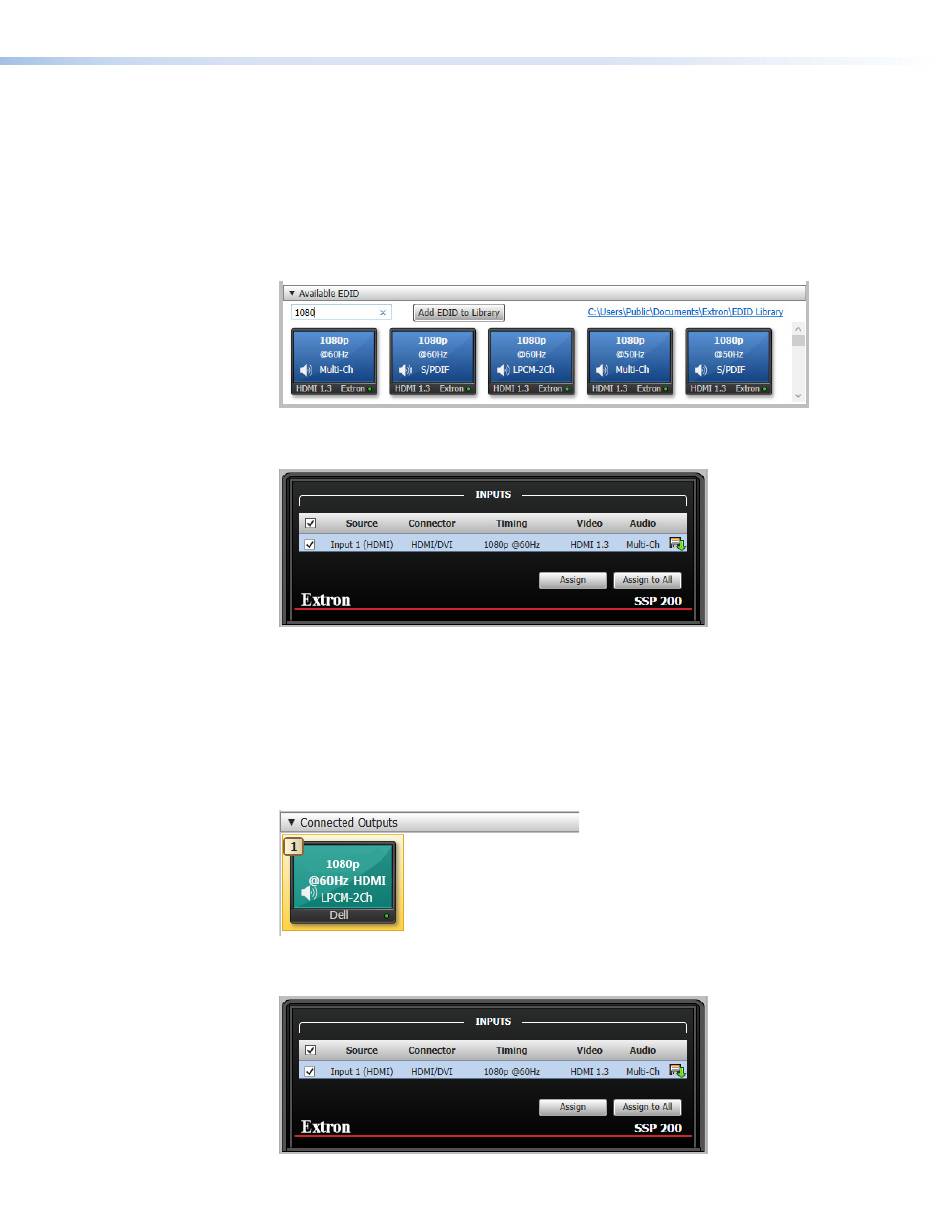

Click Assign. The EDID is assigned to the input and is displayed in the INPUTS panel
4.
Alternately, click Assign to All on the INPUTS panel if you would like to assign the
same EDID to all inputs.
EDID can also be assigned by dragging and dropping the desired EDID directly onto the
Inputs panel.
Assigning a Non-Factory-Default EDID
1.
Navigate to the Available EDID panel on the EDID Minder screen.
2.
Select the desired EDID (represented by a orange display icon).
3.
Select the check box for Input 1 on the INPUTS panel.
Click Assign. The EDID is assigned to the input and is displayed in the INPUTS panel
4.
Alternately, click Assign to All on the INPUTS panel if you would like to assign the
same EDID to all inputs.
EDID can also be assigned by dragging and dropping the desired EDID directly onto the
INPUTS panel.
Assigning EDID from a connected output
1.
Navigate to the Connected Outputs panel on the EDID Minder screen.
2.
Click the EDID displayed (represented by a green display icon).
Select the check box for Input 1 on the INPUTS panel.
3.
SSP 200 • Product Configuration Software
39
