SSP 7.1 Setup Guide
Overview

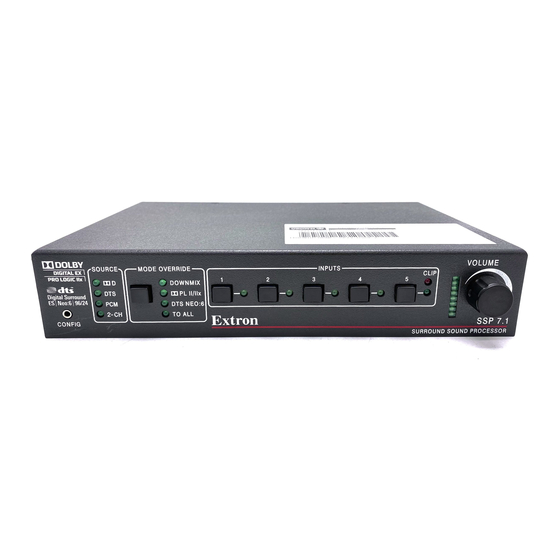

The Extron ® SSP 7.1 is a 7.1 channel surround sound processor with four digital
inputs and one analog input. The unit accepts a range of source formats and
uses various listening mode options for use in 5.1 to 7.1 surround sound system
configurations.
The listening mode determines which audio signals will be passed to the speakers.
Each combination of source format and speaker configuration has a default
listening mode. The default listening mode can be overridden by the front panel
controls and the SSP 7.1 Setup and Control Software to select a mode that matches
the requirements of the room and the personal preferences of the listener.
This guide provides basic instructions for an experienced installer to install and perform the initial configuration of the
SSP 7.1. For further details, see the SSP 7.1 User Manual on the Extron Web site (
SSP 7.1 Installation
Attach the four rubber feet provided with the SSP 7.1, and place the unit on any convenient flat surface. The SSP 7.1 can
also be mounted in a rack with the optional rack-mounting kit (RSU 126, part number 60-190-10), or under furniture with
the optional under-furniture mounting kit (MBU 125, part number 70-077-01). For complete instructions on mounting the
unit, consult the SSP 7.1 User Manual, on the Extron Web site (

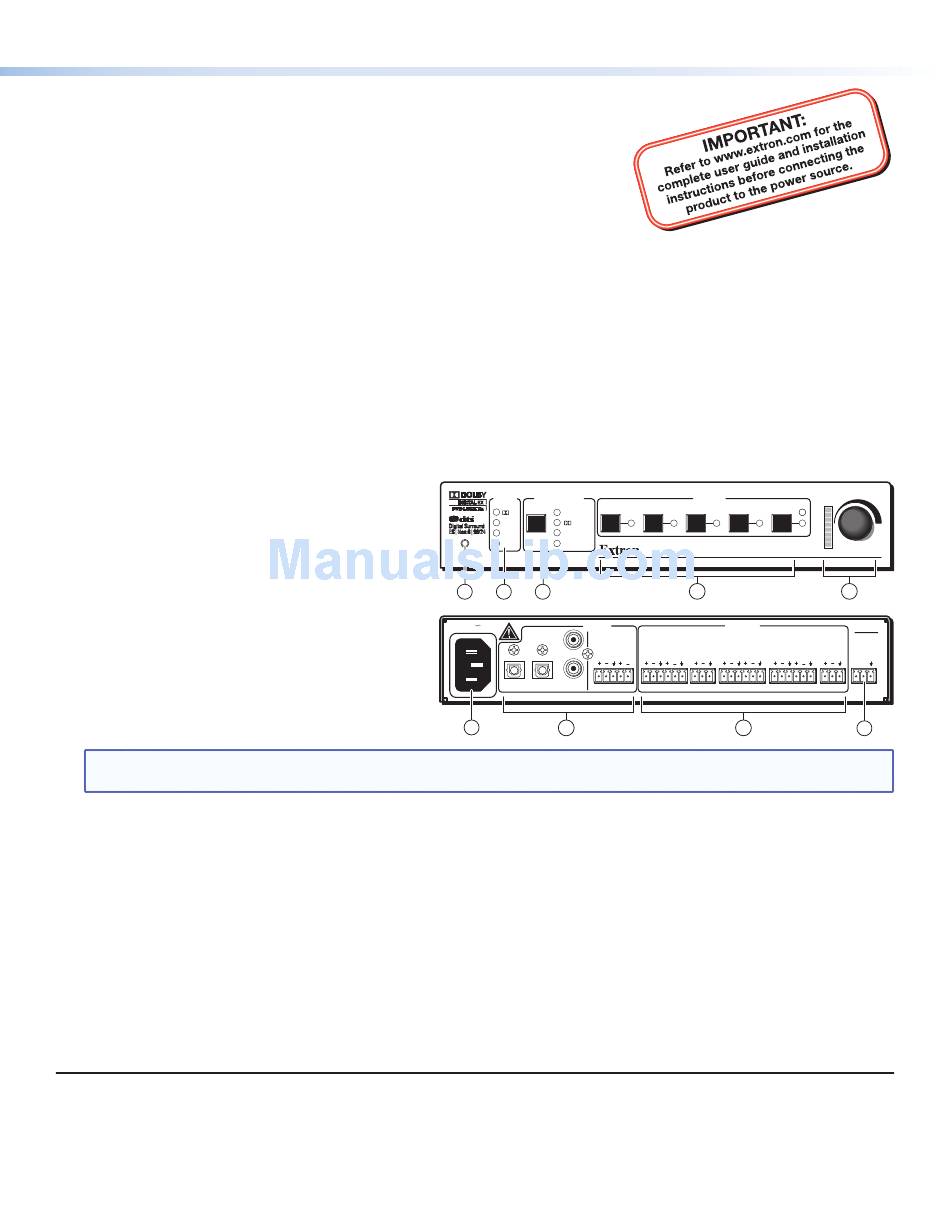

SSP 7.1 Front and Rear Panel Features
a
Configuration port
b
Input source format indicator
c
Mode Override selector
d
Input selections
e
Volume adjustment knob and LED bar /analog input
gain level control and LED bar
f
AC power input
g
Audio inputs
h
Audio outputs
i
RS-232 port
NOTE:
Neither the configuration port nor the RS-232 port take precedence over the other. Instructions from either are
processed in the order they are received.
SSP 7.1 Cable Connections
The SSP 7.1 uses an IEC power cable to connect to a 100 - 240 VAC, 50-60 Hz, power source.
The SSP 7.1 accepts four digital inputs and one analog input:
Inputs 1 and 2 accept digital signals through S/PDIF optical cables.
•
Inputs 3 and 4 accept digital signals through S/PDIF coaxial cables.
•
Input 5 accepts a balanced or unbalanced, stereo or mono analog input through a 5-pin captive screw connector.
•
The SSP 7.1 outputs are balanced/unbalanced, line level, analog signals that feed into multi-channel amplifiers for
configurations up to 7.1 surround sound. See the wiring card (included) to ensure correct connections to the SSP 7.1.
Connect the front panel Config port or rear panel RS-232 port to a PC that has the SSP 7.1 Setup and Control Software
installed (see "SSP 7.1 Setup and Control Software Installation" on the next page).
Manufactured under license from Dolby Laboratories. Dolby, Pro Logic, and the double-D symbol are trademarks of Dolby Laboratories.
Manufactured under license under U.S. patent numbers: 5,451,942; 5,956,674; 5,974,380; 5,978,762; 6,226,616; 6,487,535; 7,003,467;
7,212,872 and other U.S. and worldwide patents issued and pending. DTS, DTS Digital Surround, ES, and Neo:6 are registered trademarks
and the DTS logos, symbol and DTS 96/24 are trademarks of DTS, Inc.
© 1996-2010 DTS, Inc. All Rights Reserved.
www.extron.com
www.extron.com
).
SOURCE MODE OVERRIDE
1
D DOWNMIX
DTS PL II/IIx
PCM DTS NEO:6
2-CH TO ALL
CONFIG
1 2 3
100-240V .5A INPUTS
50-60Hz
DIGITAL ANALOG
3
5
L
R
4
1 2
6
7
).
INPUTS
CLIP
2 3 4 5
SURROUND SOUND PROCESSOR
4
OUTPUTS
SUB
FRONT CENTER SURROUND BACK WOOFER
L R C LS RS LB/CB RB SUB
8
VOLUME
SSP 7.1
5
SSP 7.1
RS-232
Tx Rx
9
