Installation and Operator's Manual
(PVI-3.0/3.6/4.2-OUTD-x-US Rev: 2.1)

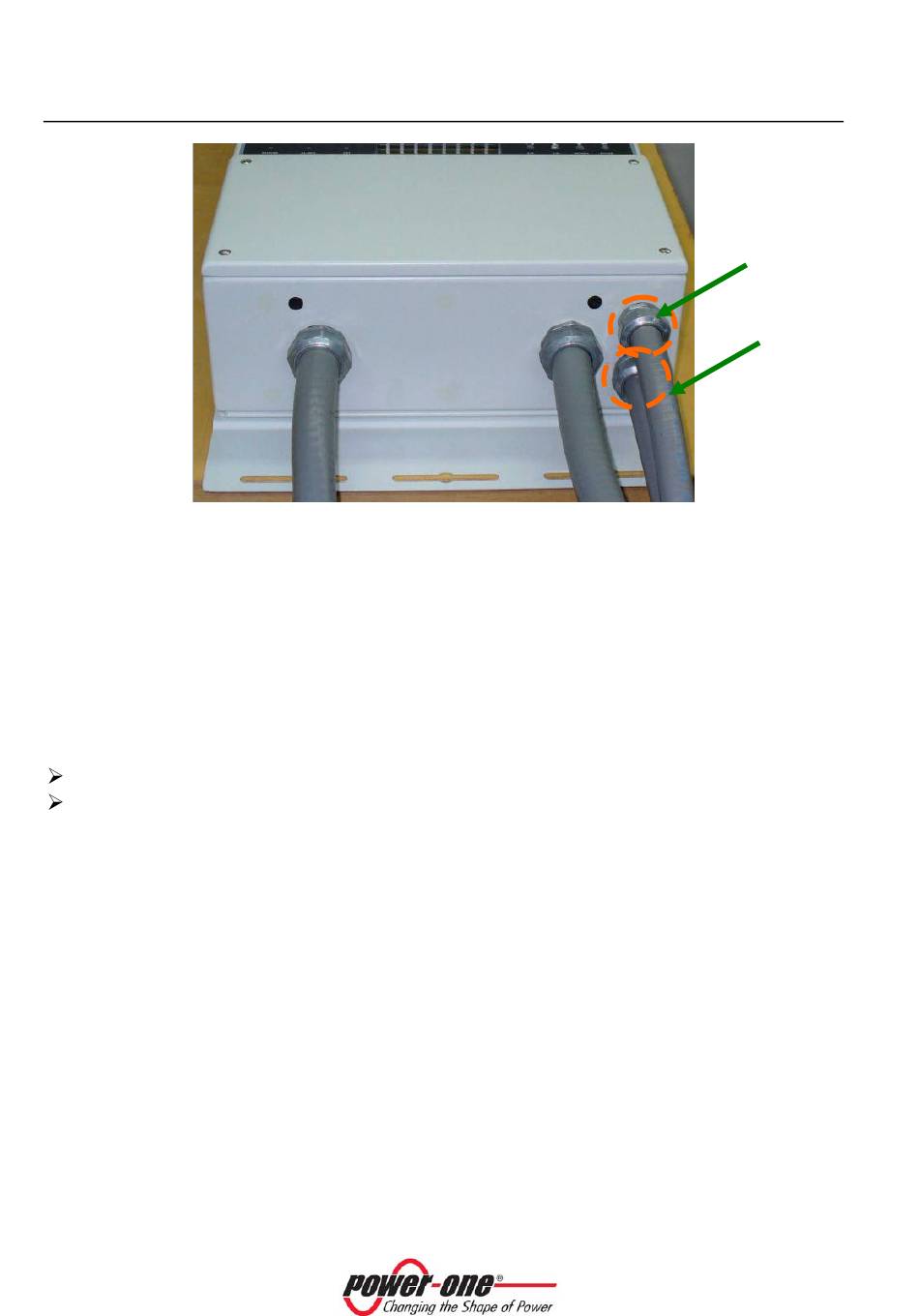

Fig.23a - Holes for cables necessary for RS-485 port connection or wiring for
RJ12 connector connection (without the switch box).
After passing through cable gland, cables are connected inside of the unit to RS-485
terminal blocks that can be reached by removing the front cover. Refer to paragraph
3.3.2 for details on correct front cover removal and reassembly procedure. Refer to
paragraph 3.3.7 for details on correct cabling.
Signal wires must be connected to +T/R and –T/R terminals
Ground wire must be connected to RTN terminal
Page 82 of 108
RS485
Alarm
