Installation and Operator's Manual
(PVI-3.0/3.6/4.2-OUTD-x-US Rev: 2.1)
WARNING: Due to the high voltage present on the power cable in the
Switch Box, ALWAYS disconnect the Switch Box from the DC power cables
as described in the "Switch Box Connecting and/or Disconnecting procedure"
(see section 3.3.2) prior to working on the cables.

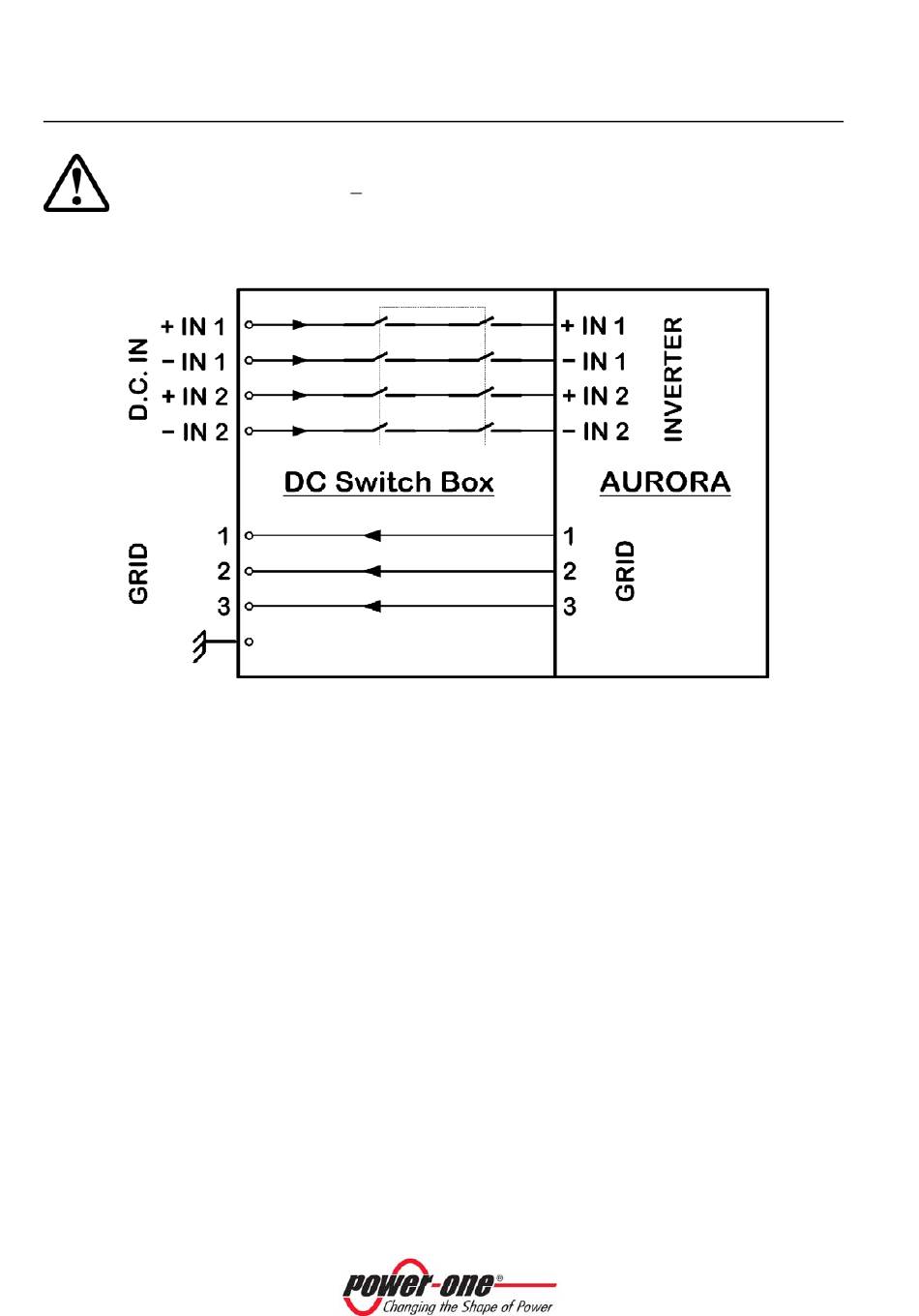

Fig. 11 - SD-01 Switch Box DC Electrical Schematics
Page 30 of 108
