DATA CHECK AND COMMUNICATION

6.1

Connection through RS-485 serial port or RJ12 connectors

6.1.1
RS-485 serial port
RS-485 serial port uses a three-wire cable: two wires are for signals and the third one
is for a ground connection. The cables are routed through the hole located on the
bottom of the Switch box which is blanked with waterproof plugs (see Fig. 23 -23a).
Supplied cable gland must be installed in the hole selected for use.

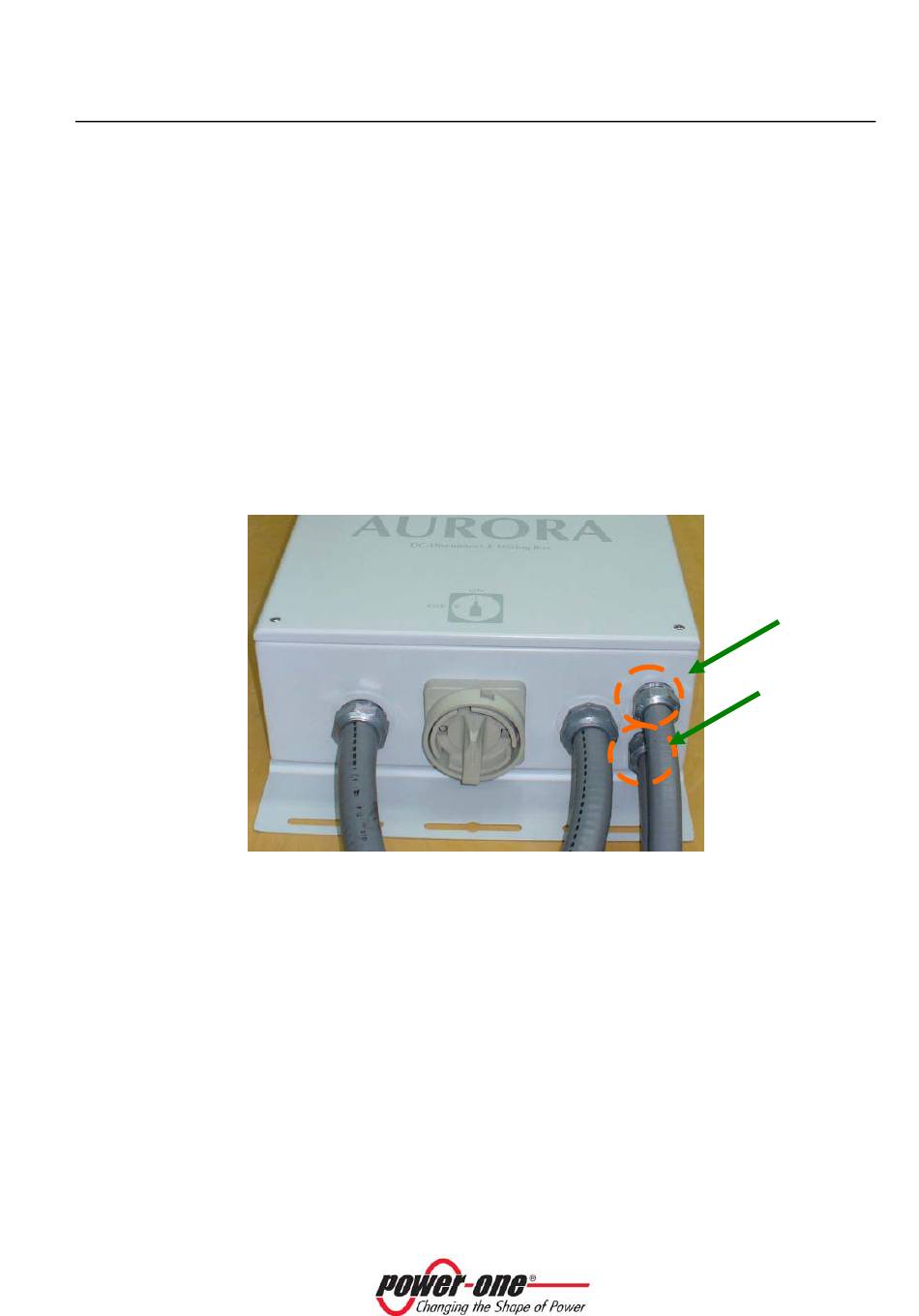

Fig.23 - Hole for cables necessary for RS-485 port connection or wiring for RJ12
connectors connection.
Page 81 of 108
RS485
Alarm
