Installation and Operator's Manual
(PVI-3.0/3.6/4.2-OUTD-x-US Rev: 2.1)
3.3.3
Aurora Switch Box Description
Pos. Fig. SB-01
A
B
C
D
WARNING: The Switch Box disconnects the DC current from the
photovoltaic panels when the switch is in "OFF" position (see the electrical
schematics in Fig.11 SD-01 – Electrical Schematics DC Switch Box" and
DOES NOT disconnect the AC line going to the Grid. To disconnect the
inverter from the AC Grid, the AC switch (not included in the Switch Box)
must be disconnected (see Fig. 9 - "Connection Diagram").

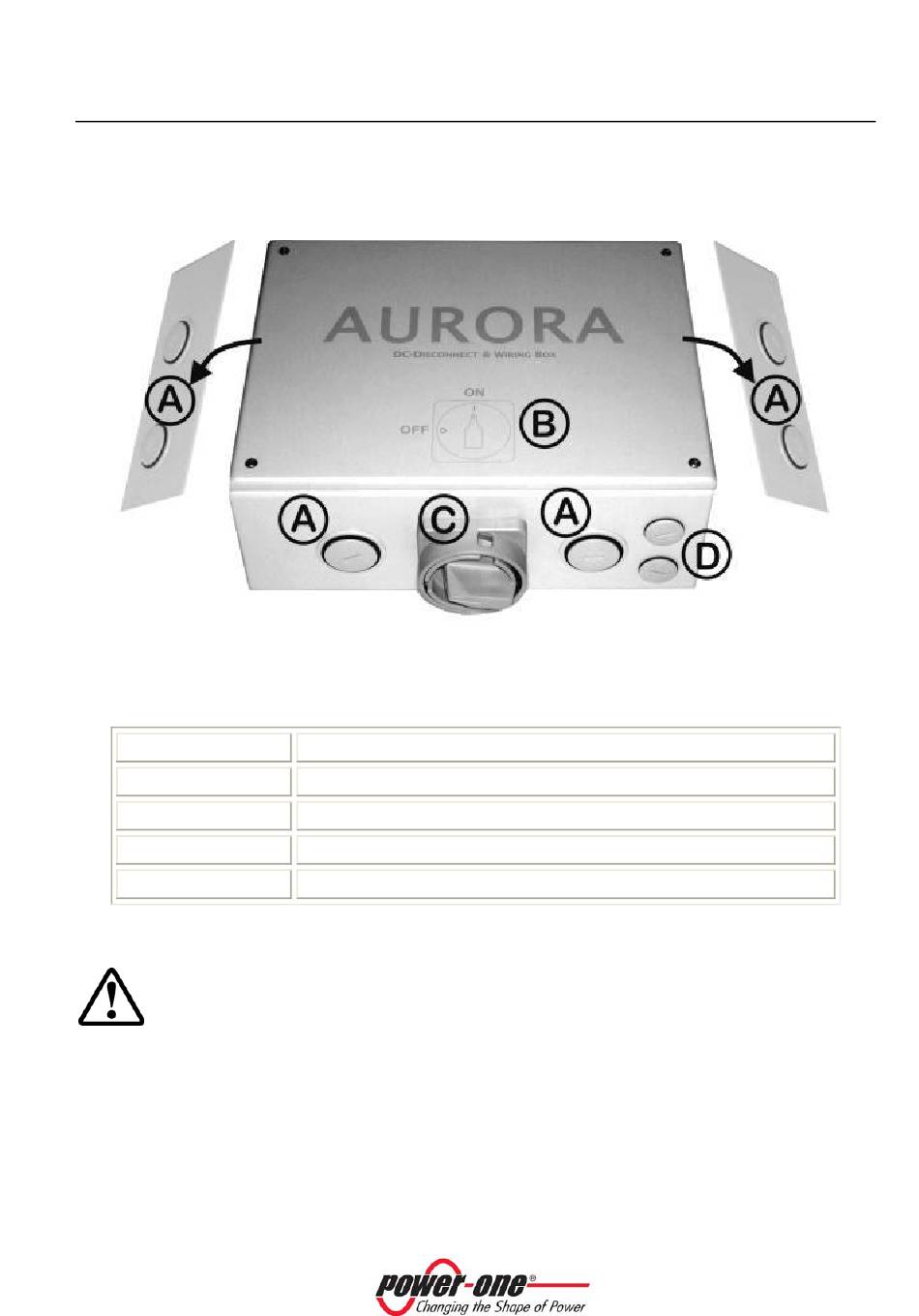

Fig. 11 - SB-01 – DC Switch Box Layout
DC and AC Power cable knockouts – SIZE: G1"
Silkscreen "ON" / "OFF"
Signal cable entries – SIZE: G1" ½
Description
DC Switch
Page 29 of 108
