Installation and Operator's Manual
(PVI-3.0/3.6/4.2-OUTD-x-US Rev: 2.1)
3.3.2 Removing the Front Cover and Accessing the Internal Terminal
Block.
WARNING: Before performing the following instructions, ALWAYS
perform the "
INVERTER FROM THE SWITCH BOX PROCEDURE"
and described in section 3.4 1.
To remove the front cover, loosen the 4 screws shown in fig 10 pos "A", using the
flathead screwdriver provided in the box with the inverter.

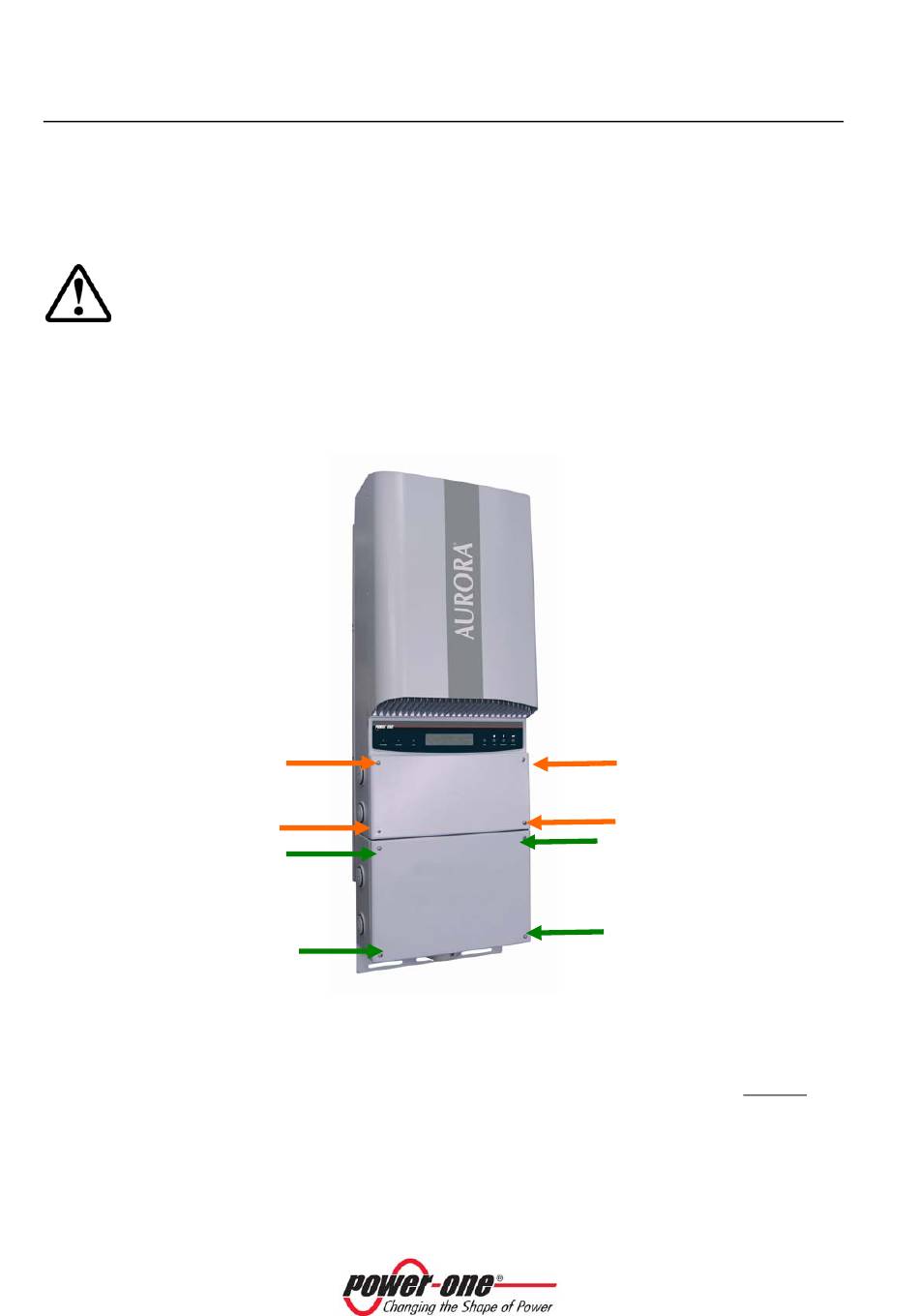

Fig.10 - Aurora Inverter with Front Panel and DC Switch
When the connection operations are completed, reinstall the front cover and tighten the
4 screws into the cover with at least 1.5Nm (13.2 in-lbs) torque to ensure proper
waterproof sealing.
ELECTRICAL DISCONNECTION OF THE
A
A
B
B
Page 28 of 108
A
A
B
B
located
