Installation and Operator's Manual
Page 12 of 108
(PVI-3.0/3.6/4.2-OUTD-x-US Rev: 2.1)
The S-US models are provided with an integrated 600V, 25A DC switch as shown on
fig. 1a.

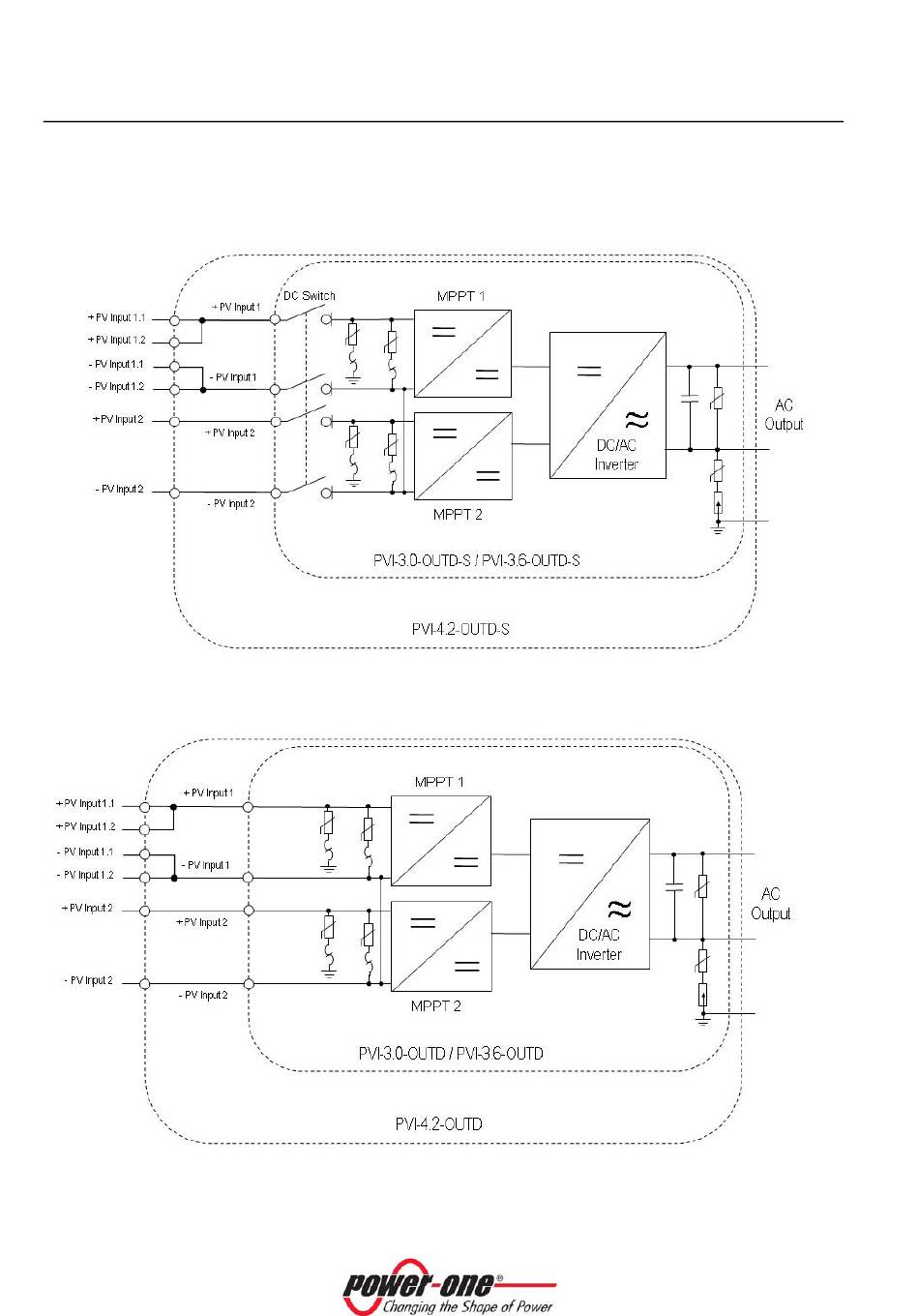

Fig.1a – Schema funzionale inverter con DC switch integrato.
Fig. 1b - Block diagram of inverters model without integrated DC switch
