Installation and Operator's Manual
(PVI-3.0/3.6/4.2-OUTD-x-US Rev: 2.1)
5.3

LED indicators

There are three LEDs at the side of the display: the first LED from the left (POWER)
indicates proper operation of the inverter, the LED in the middle (FAULT) indicates a
fault condition, whereas the LED on the right (GFI) indicates a ground fault.
1. The green "Power" LED indicates that the Aurora inverter is operating correctly.
This LED flashes upon start-up, during the grid check routine. If a correct grid
voltage is detected and solar radiation is strong enough to start up the unit, the LED
stays on steady. If not, the LED keeps flashing until solar radiation becomes strong
enough to start up the inverter. In this condition, the display will read " Waiting for
sun...."
2. The yellow "FAULT" LED indicates that the Aurora inverter has detected a fault
condition. A fault description will appear on the display.
3. The red "GFI" (ground fault) LED indicates that Aurora is detecting a ground fault
in the DC side of the photovoltaic system . When this kind of fault is detected, the
Aurora inverter immediately disconnects from the grid and the corresponding fault
indication appears on the display. The inverter remains in this condition until the
operator presses the ESC key to re-start the grid connection sequence. If the
inverter does not reconnect to the grid, contact service to have the system checked.
1 2
LED indicator combinations and their meanings are listed in the following table.
3

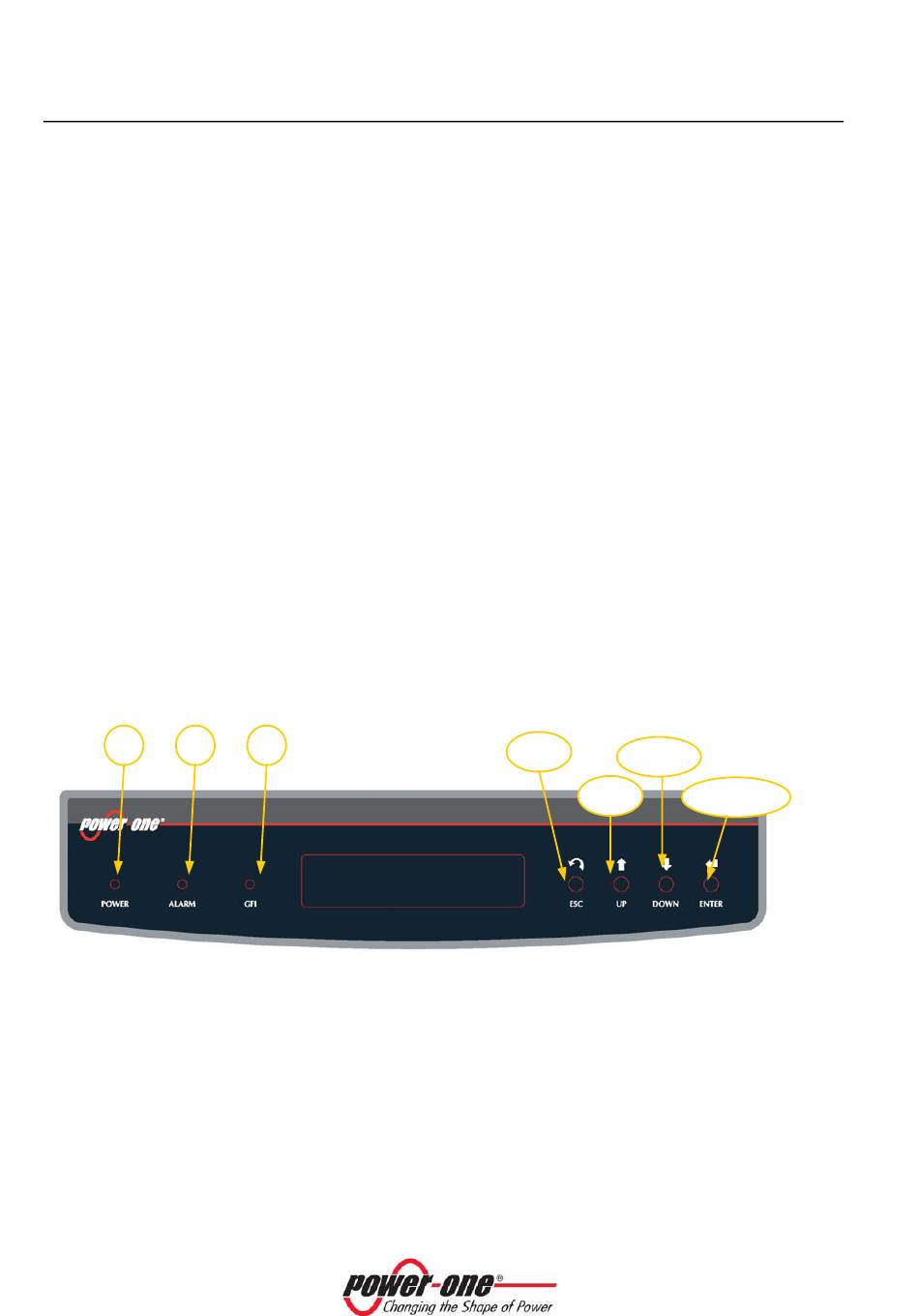

Fig.19 - LED Location
Page 56 of 108
ESC
DOWN
UP
ENTER
