Installation and Operator's Manual
(PVI-3.0/3.6/4.2-OUTD-x-US Rev: 2.1)
POS
Terminal Block AC OUT
A
DIN bars for accessories
B
Grid Standard Table
C
Main Ground
D
minimum wire size)
Ground
E
DC IN Terminal Block
F
Cable Knockouts
G

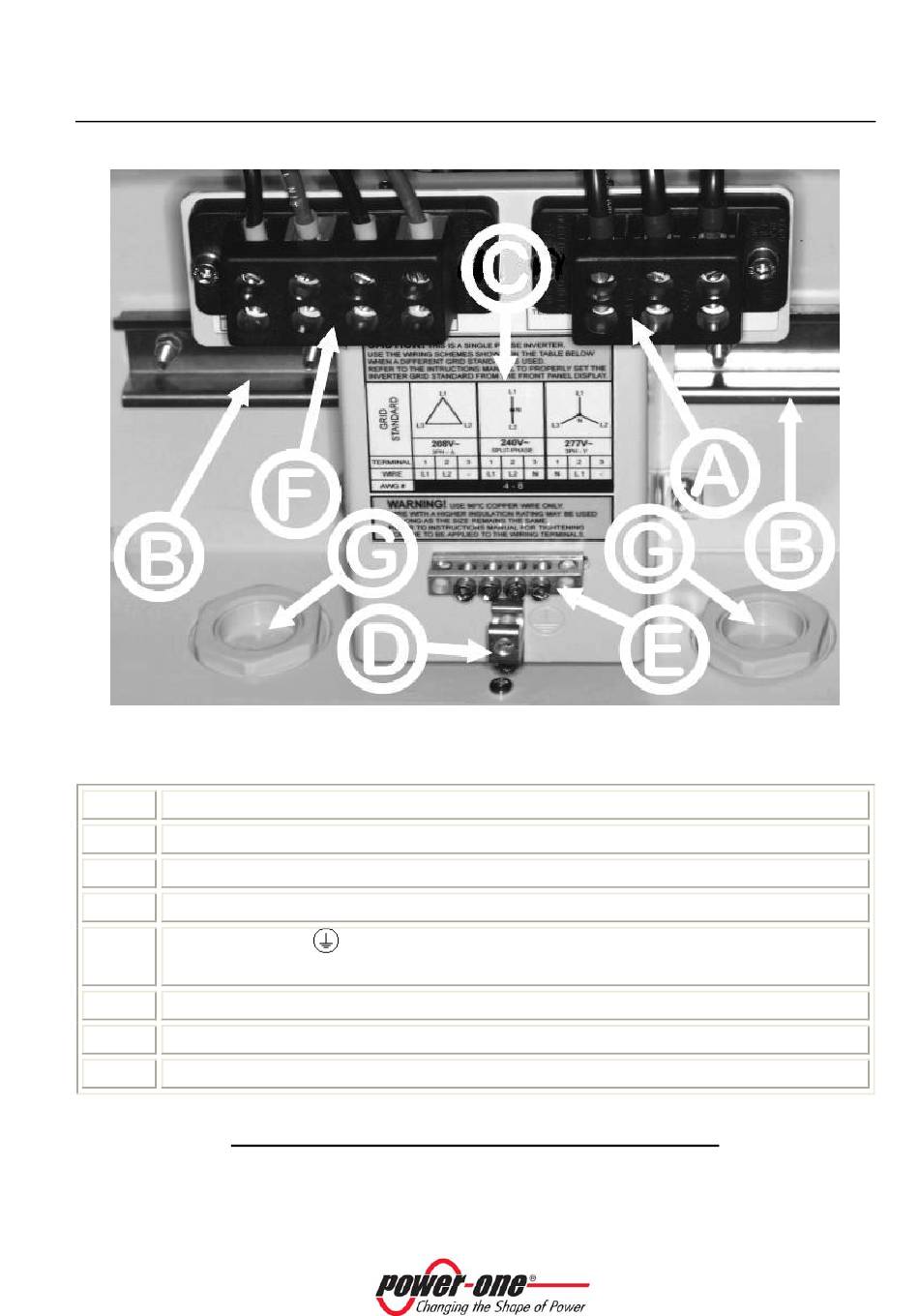

Table SBD – Switch Box Internal Parts Summary.
Fig. 11 SB-02 –Switch Box
Details
- Max Wire Size = AWG# 4 (Refer to local code for
Page 31 of 108
