Installation and Operator's Manual
(PVI-3.0/3.6/4.2-OUTD-x-US Rev: 2.1)
Step 2: Lay down the cables between the Aurora inverter and the outside passing
trough the provided holes and cable glands on the Switch Box.
Step 2: Connect the communication and the alarm cables to the communication and
alarm terminal block on the right side of the inverter. Follow the marking on the
terminal block for appropriate connection.
WARNING: In order to separate correctly power cable from signal cables
make sure to use the provided cable ties on the inverter and on the Switch
Box. See fig. 15a, 15b for appropriate cabling.

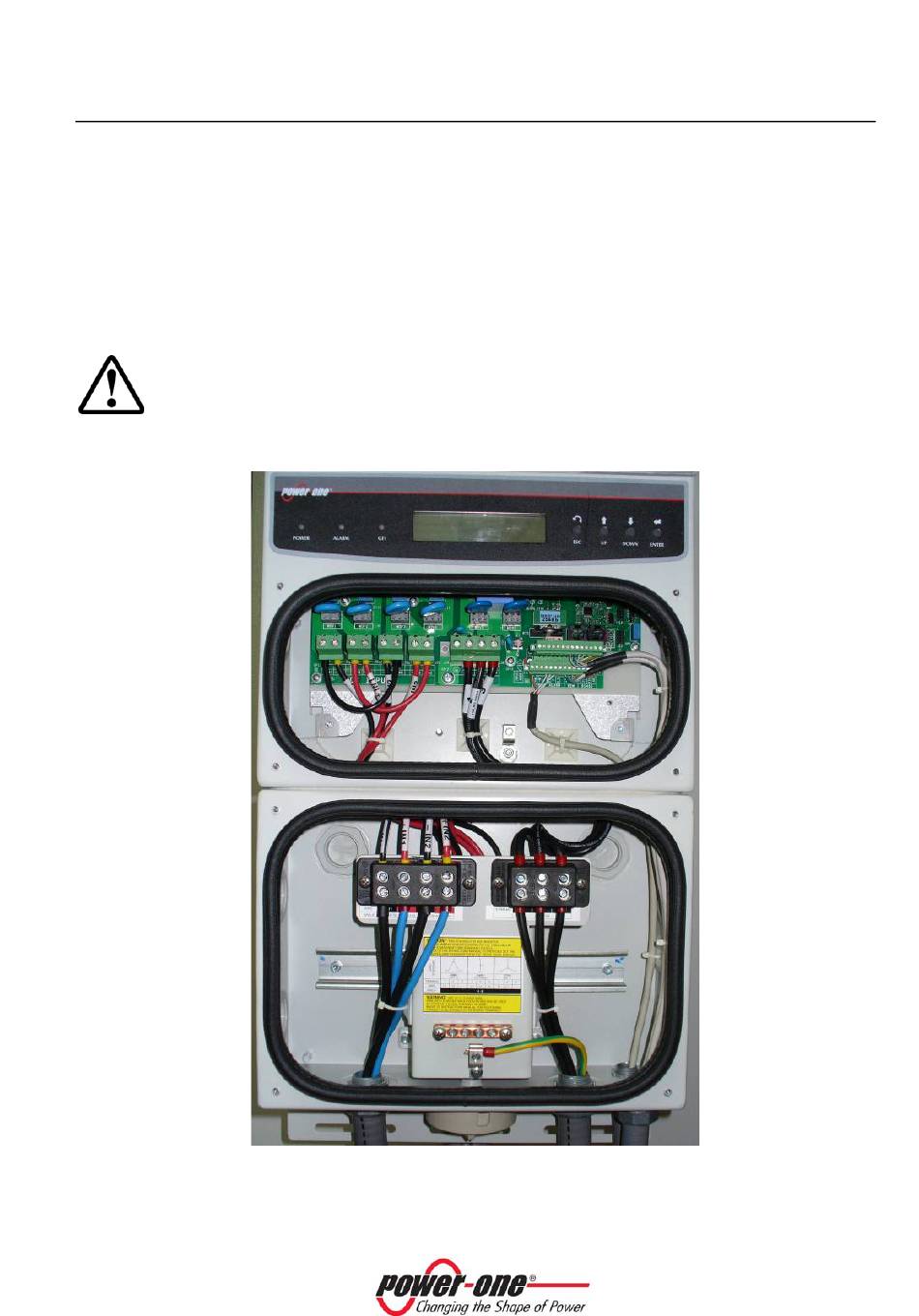

Fig.15a – Complete cabling.
