Installation and Operator's Manual
(PVI-3.0/3.6/4.2-OUTD-x-US Rev: 2.1)

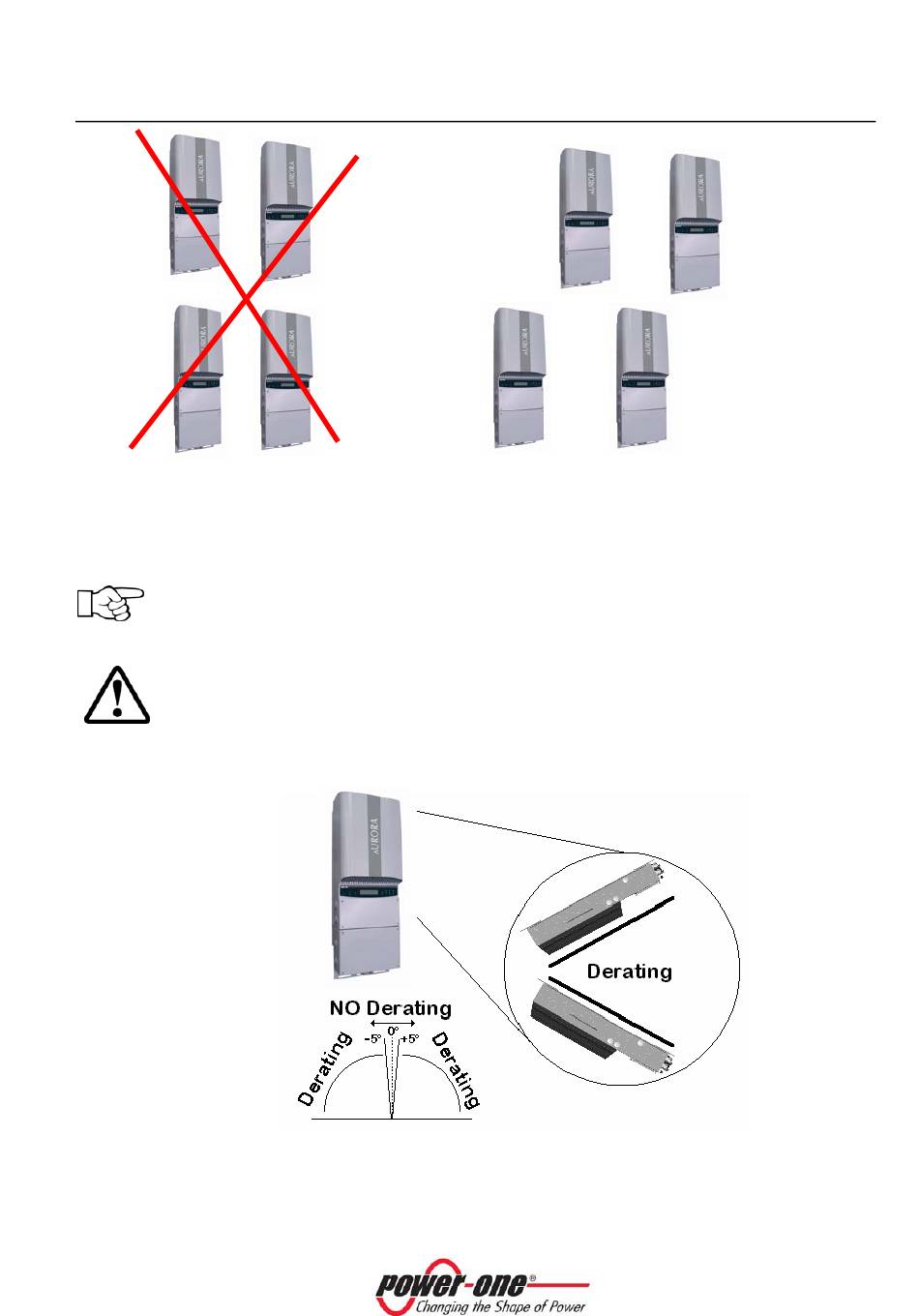

Fig. 6 - Recommended Installation of Aurora Inverters
NOTE: Tilted mounting is permitted (see Fig. 7), but will reduce heat
dissipation and may result in self-derating.
WARNING: The inverter surface may become hot to the touch during
operation. To avoid burn injury, DO NOT touch the inverter surface during
operation.
RECOMMENDED ARRANGEMENT
Fig. 7 - Tilted Mounting
Page 21 of 108
