Startup

106377_en_04
WARNING: Dangerous contact voltage
Setup and startup may only be carried out by qualified personnel who are familiar with
the necessary safety precautions.
Observe the relevant requirements for setting up and starting up a charging infrastruc-
ture, and, in particular, the applicable safety regulations.
NOTE: Electrostatic discharge
The device contains components that can be damaged or destroyed by electrostatic
discharge. When handling the device, observe the necessary safety precautions
against electrostatic discharge (ESD) in accordance with IEC 61340-5-1.
4.1

Dimensions

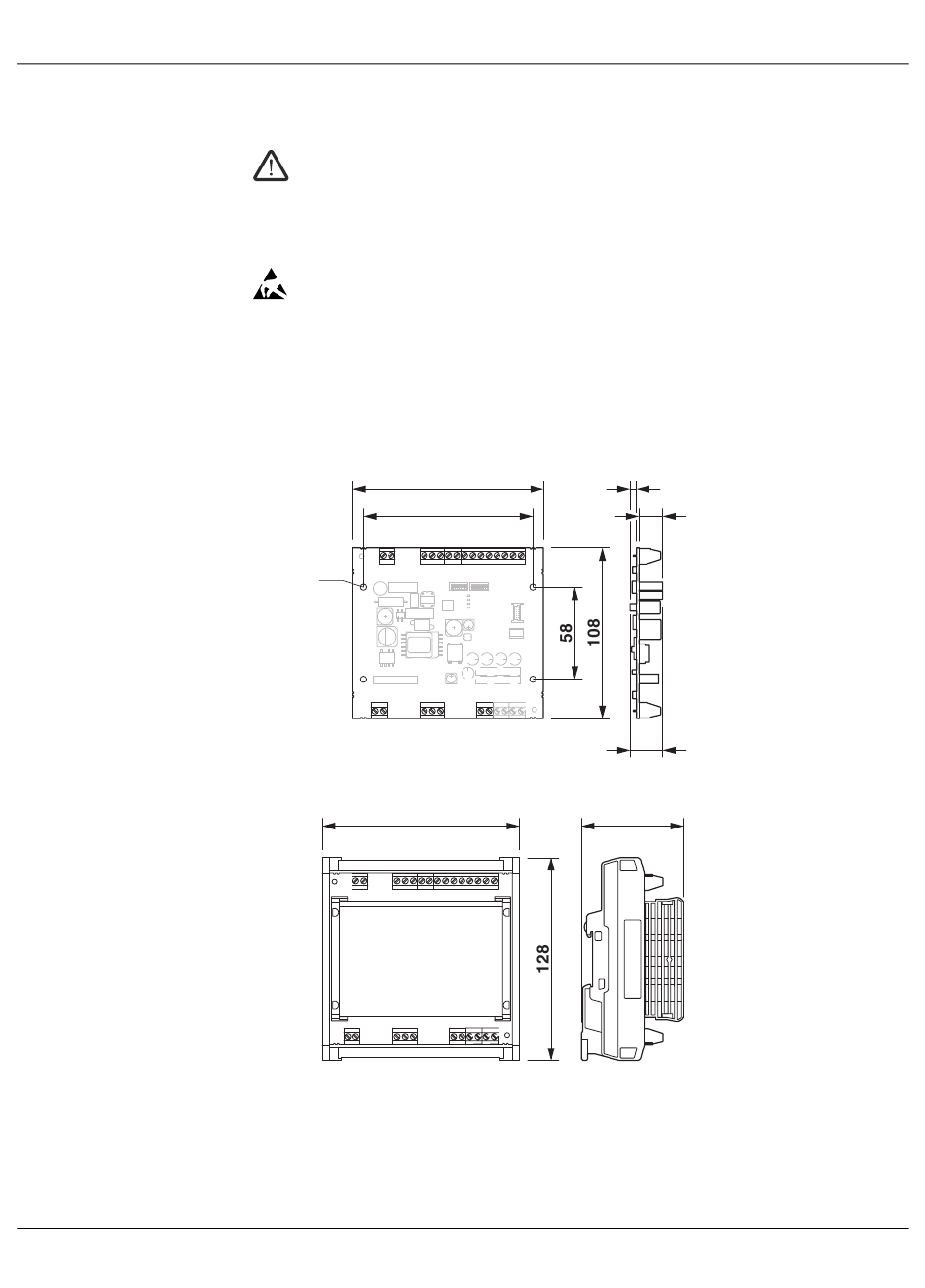

Figure 4-1 Dimensions of EV-CC-...-PCB
Ø4
Figure 4-2 Dimensions of EV-CC-...-HS
124
4,1
120
107 15
20,6
64
