EV Charge Control Basic
S1/DIP 1 = ON
EV-CC-AC1-M3-CC-...,
connection of case C
36 / 68
PHOENIX CONTACT
7.2 Charging enabled with local release and status in-
dication via external LEDs
Charging station with Vehicle Connector
Status indication via external LEDs
The charging process starts if switch k1 is closed and status C is present.
– LED 1 is on when the vehicle is connected to the charging station.
– LED 2 is on during the charging process.
– LED 3 is on in the event of an error.

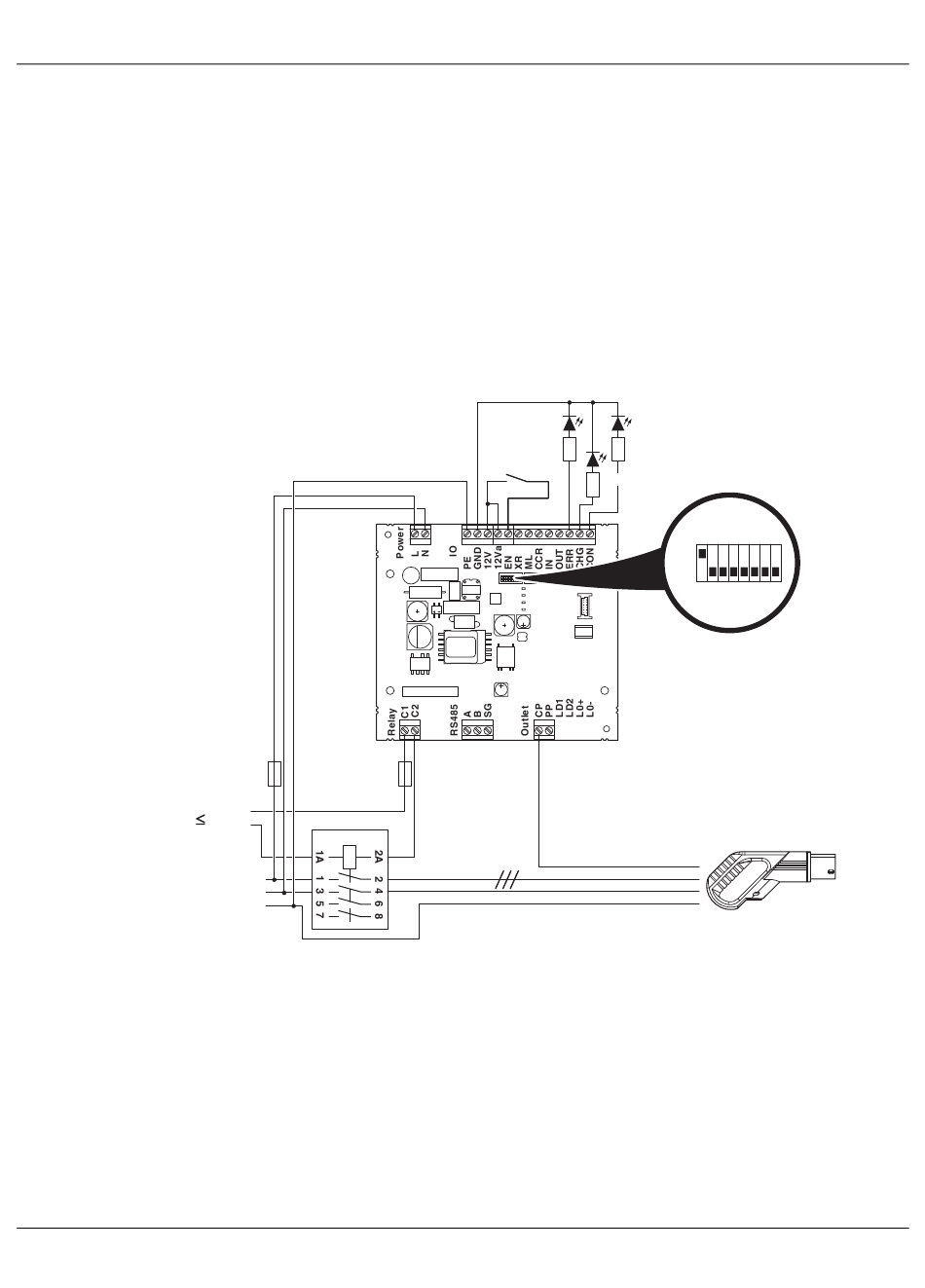

Figure 7-2 Connection example 2
230 V
L, L1-L3
N
PE
LED3 LED1
k1
LED2
S1 S2
PWR
CON
ERR
CHR
1
S1
0
EV-T2M3C-...
EV-T1M3C-...
106377_en_04
