Charging Contactor Monitoring - Phoenix Contact EV Charge Control Basic User Manual

EV Charge Control Basic
S1/DIP 1 = OFF
EV-CC-AC1-M3-CBC-...,
connection of case B
230 V
L, L1-L3
42 / 68
PHOENIX CONTACT
7.7

Charging contactor monitoring

Charging station with Infrastructure Socket Outlet
Locking is carried out if a vehicle is detected.
The charging process starts if the locking feedback is available and status C is present.
If no corresponding signal is detected at input CCR after completion of the charging process
and switching off the charging contactor, the charging controller changes to an error state.

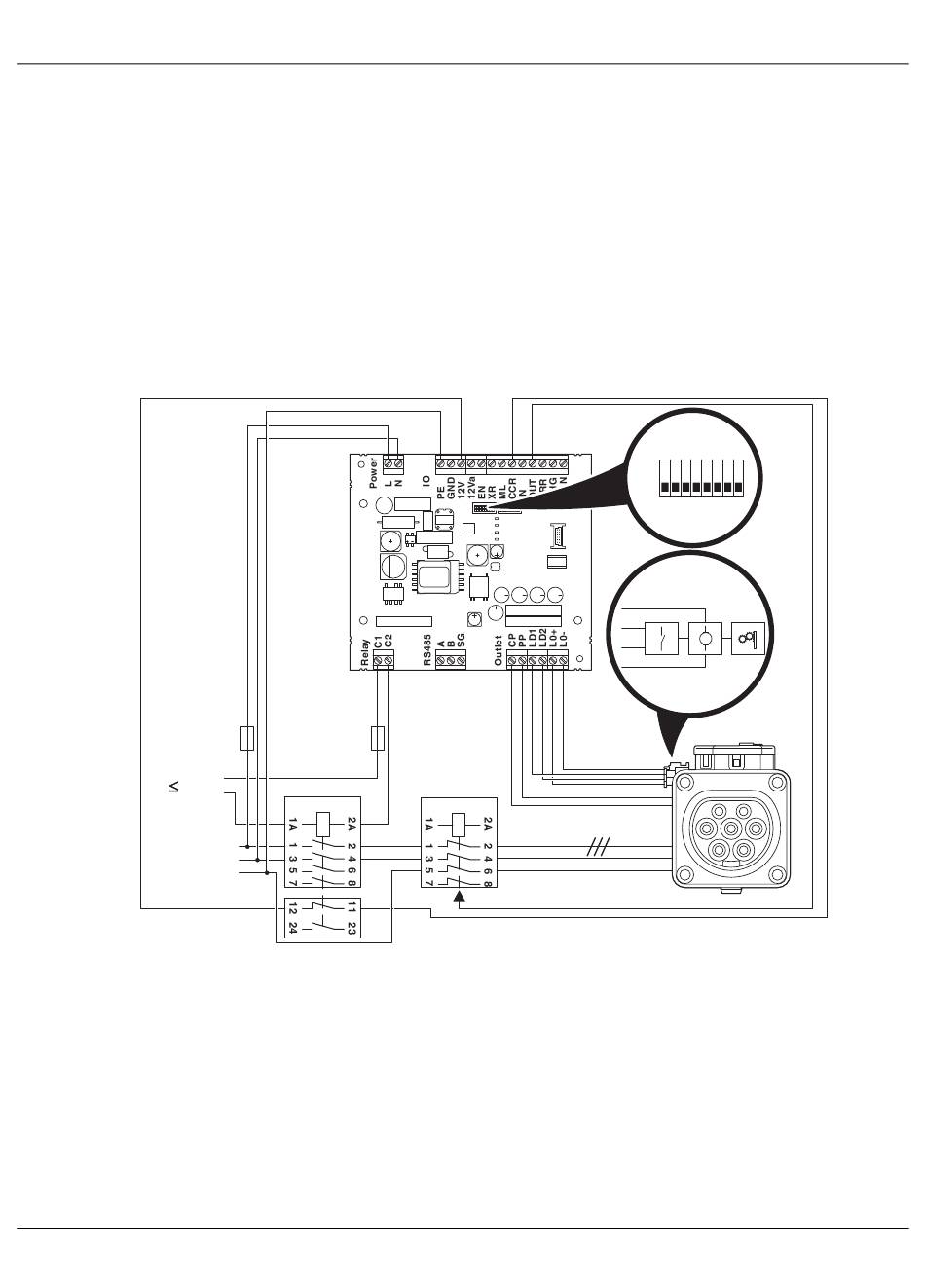

Figure 7-8 Connection example 7
N
PE
S1
S1 S2
PWR
CON
ERR
CHR
RD
GN
YE
BN
1
0
M
EV-T2M3SE12-3AC...
106377_en_04
