4.4

Mounting on the DIN rail

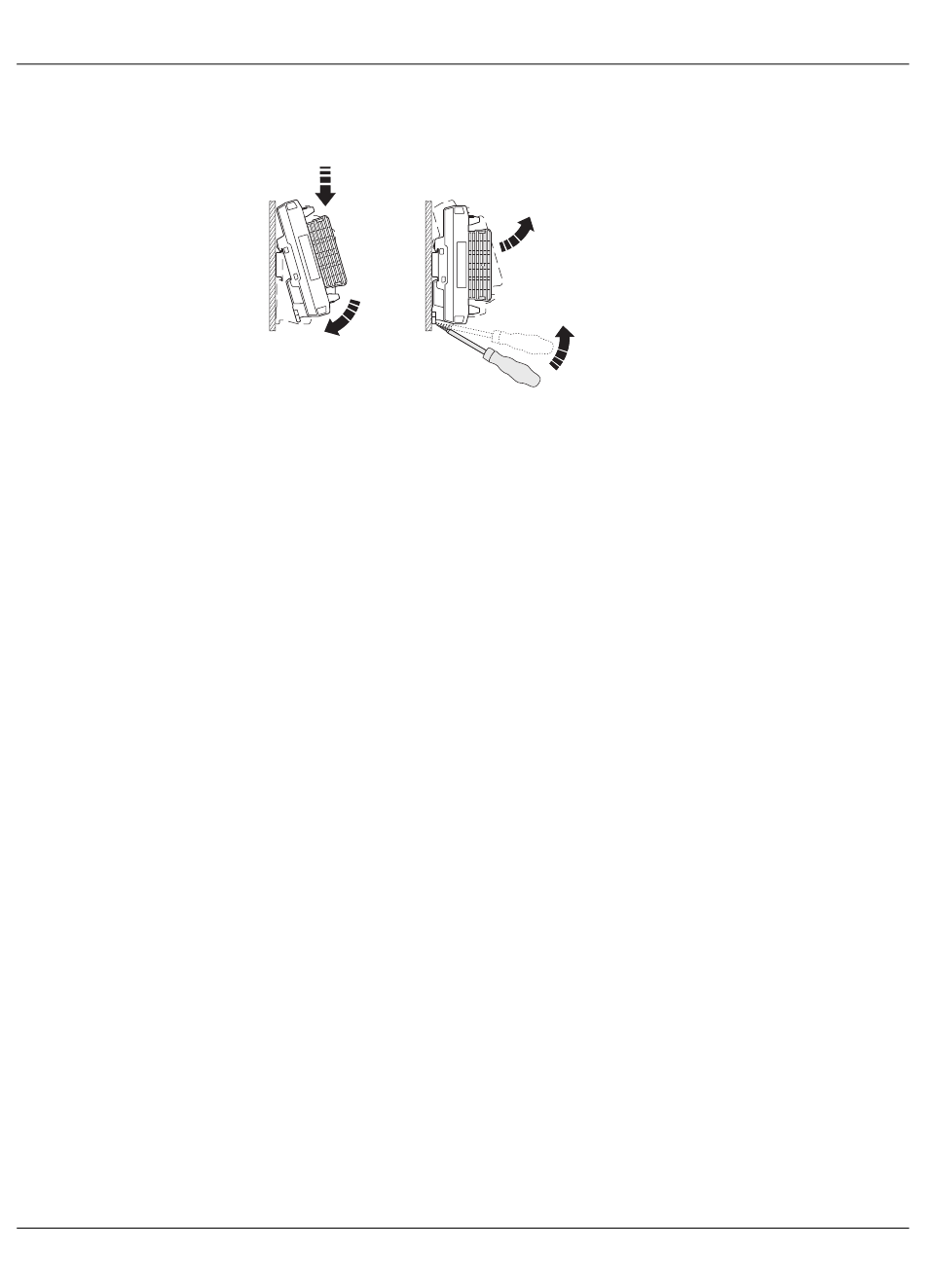

Figure 4-6 Mounting/removal
A
The device can be mounted in any position on the DIN rail.
Mounting on a DIN rail (A)
1. Place the device onto the DIN rail from above.
2. Push the front of the device toward the mounting surface until it engages with a click.
Removing from the DIN rail (B)
3. Push down the locking latch using a screwdriver, needle-nose pliers or similar.
4. Pull the bottom edge of the device slightly away from the mounting surface.
5. Pull the device diagonally upward from the DIN rail.
B
