5.3

Charging cable connection (case B and C)

According to IEC 61851-1, the connection methods for the charging cables are defined as
follows:
Table 5-2 Connection of case B and C according to IEC 61851-1
Connection Description
Case B Charging station with Infrastructure Socket
Outlet
Case C Charging station with Vehicle Connector
Connection of case B

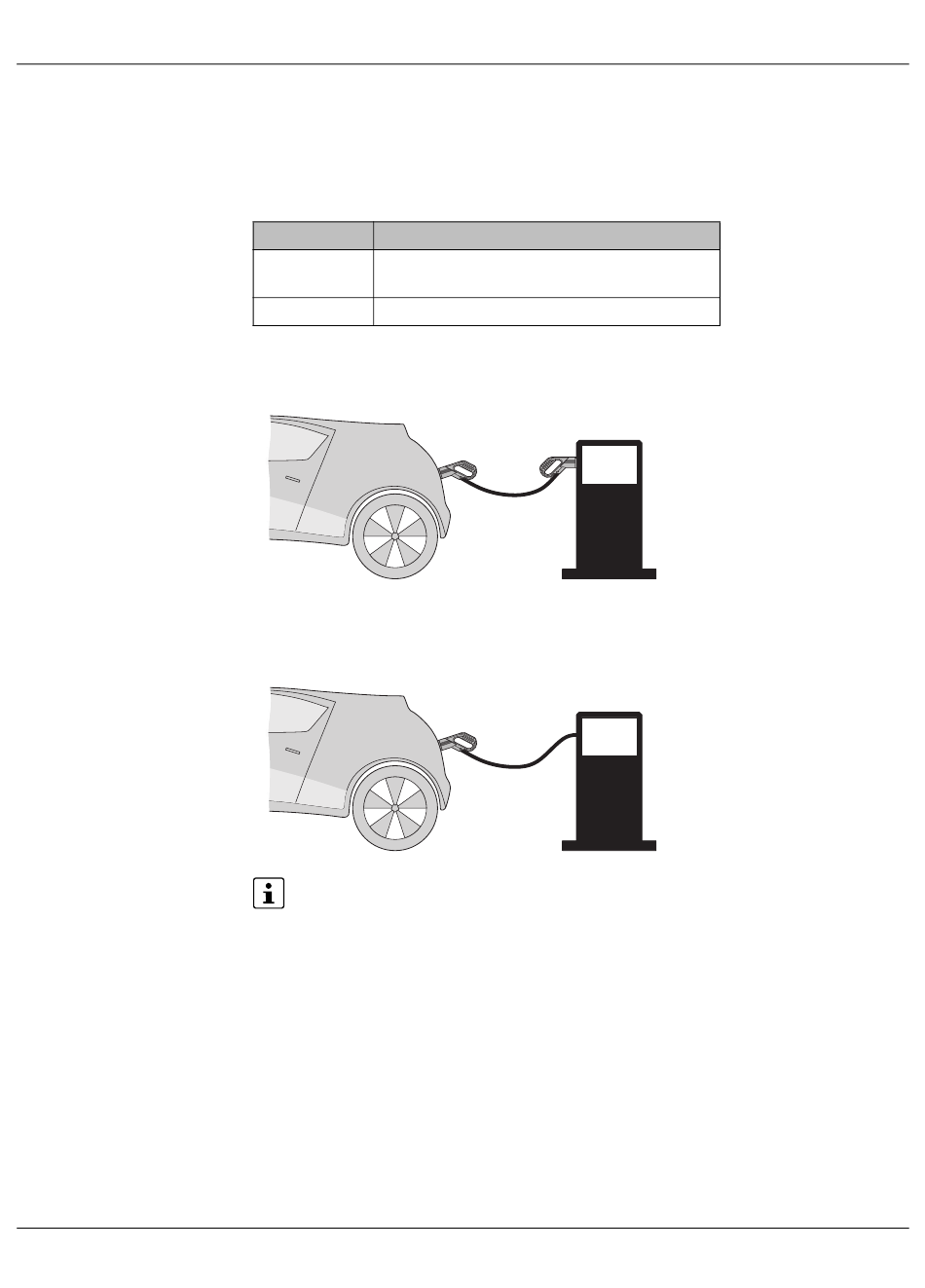

Figure 5-3 Charging station with Infrastructure Socket Outlet – connection of case B
Connection of case C
Figure 5-4 Charging station with Vehicle Connector – connection of case C
Observe the connection methods according to IEC 61851-1 for each product:
– Charging controller for connection of case B and case C for EV-CC-AC1-M3-
CBC-... products
– Charging controller for connection of case C for EV-CC-AC1-M3-CC-... product
Signal contacts and charging sequences
AC
AC
