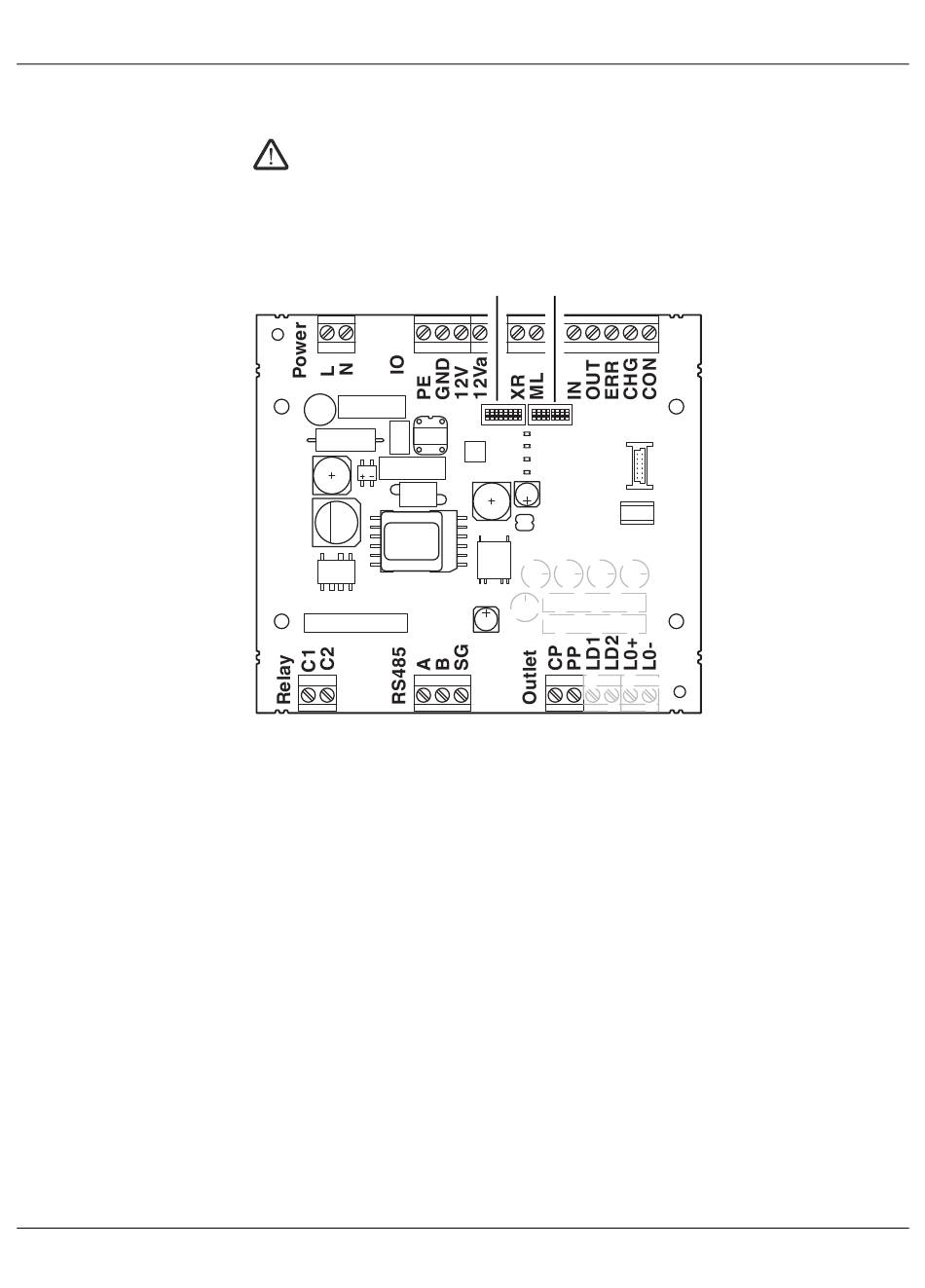

Configuration switches S1 + S2
WARNING: Dangerous contact voltage
Electrical shock from unprotected live parts.
Only set the configuration switches when the device is disconnected from the mains.
Figure 2-3
Configuration switches S1 + S2
S1
S2
S1
S2
PWR
CON
ERR
CHR
106377_en_04
