7.5
Charging enabled via Modbus
Charging station with Infrastructure Socket Outlet
Value 3 is entered in Modbus register 4000; enable via Modbus register 20000.
Locking is carried out if the vehicle is detected at the charging station and status B is pres-
ent.
The charging process starts if the locking feedback is available and value 1 is written to
Modbus register 20000.
Figure 7-5

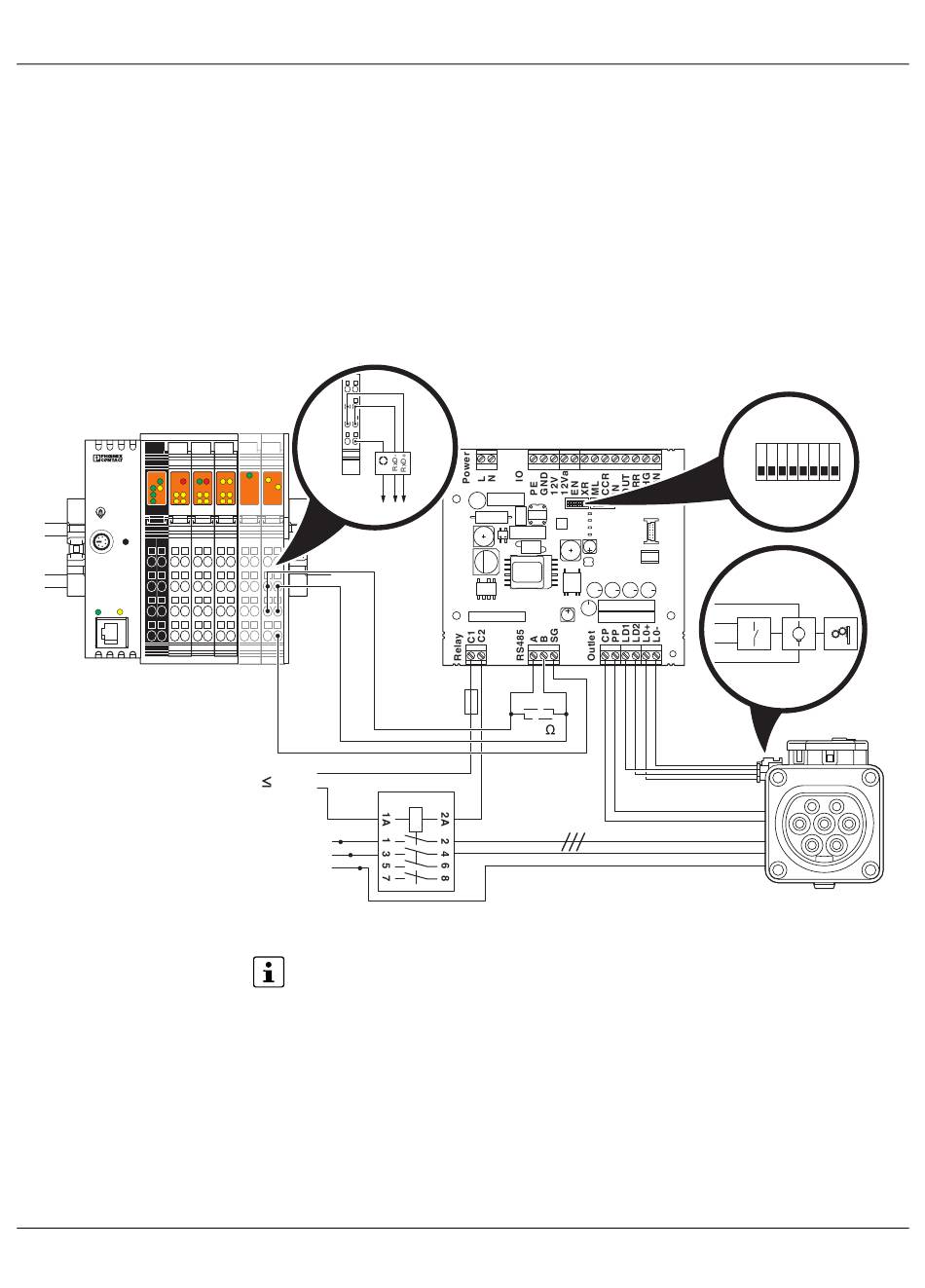

Connection example 5
1.1
2.1
1.2
2.2
1.3
2.3
1.4
2.4
D
RS-485
RxD
RDY FAIL
BSA PF
TxD
I1
I2
I5
I6
I3
I4
I7
I8
230 V
L, L1-L3
N
PE
Please observe that the RS-485 cable must be terminated at one point with a 120 Ω
resistor.
SG B A
120
S1
S2
PWR
CON
ERR
CHR
RD
GN
YE
BN
EV-T2M3SE12-3AC...
PHOENIX CONTACT
Connection examples
32 A
1
S1
0
M
39 / 68
