Connection of high-power loads (e.g., lamps)
– The output stages are supplied with the required voltage of 5 V DC to 30 V DC maxi-
mum via voltage input 12Va.
– In status 0 (OFF), the outputs are connected to GND and in status 1 (ON,) they are con-
nected to the potential of 12Va.
– GND is connected to PE internally.
– Please observe the maximum current capacity of 600 mA per output.

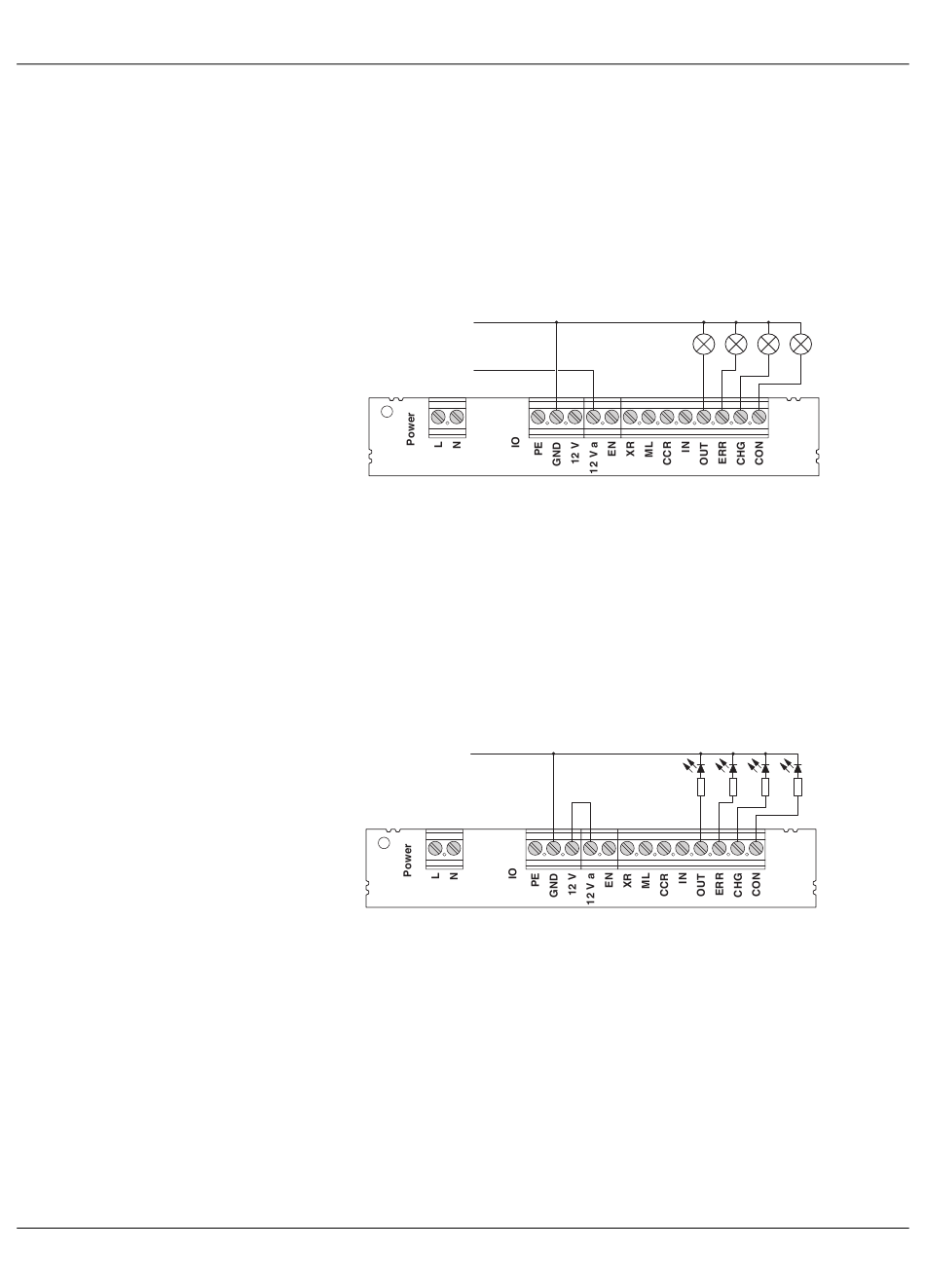

Figure 6-2

Output circuit with lamps

Connection of loads with low current consumption (e.g., LEDs)
– The output stages are supplied with the required voltage of 12 V DC from voltage output
12V via voltage input 12Va.
– Voltage output 12V can carry a maximum of 500 mA.
– In status 0, the outputs are connected to GND and in status 1, they are connected to
12Va.
GND is connected to PE internally.
Figure 6-3

Output circuit with LEDs

GND
+5 V DC ... +30 V DC
GND
OUT ERR CHG CON
OUT ERR CHG CON
