Wiring the outputs and inputs

106377_en_04
The circuits that use lamps and LEDs are only examples. You can also connect other loads,
such as optocouplers, relays or digital inputs of a controller.
6.1

Outputs

In status 0, the outputs are connected to GND and in status 1 they are connected to voltage
input 12Va. A power supply of 5 V to 30 V DC can be applied at voltage input 12Va.
The maximum current carrying capacity of the switching transistors is 600 mA. If voltage
input 12Va is supplied via the 12 V connection, then a maximum of 500 mA in total are avail-
able at all outputs.
NOTE: Possible damage to the transistors
A supply voltage must never be connected to the outputs, as one of the transistors is
controlled at all times and the transistors would be destroyed as a result.
The outputs are not short circuit proof or protected against overload.
The function of the outputs can be configured. For details, please refer to the Modbus
register description in

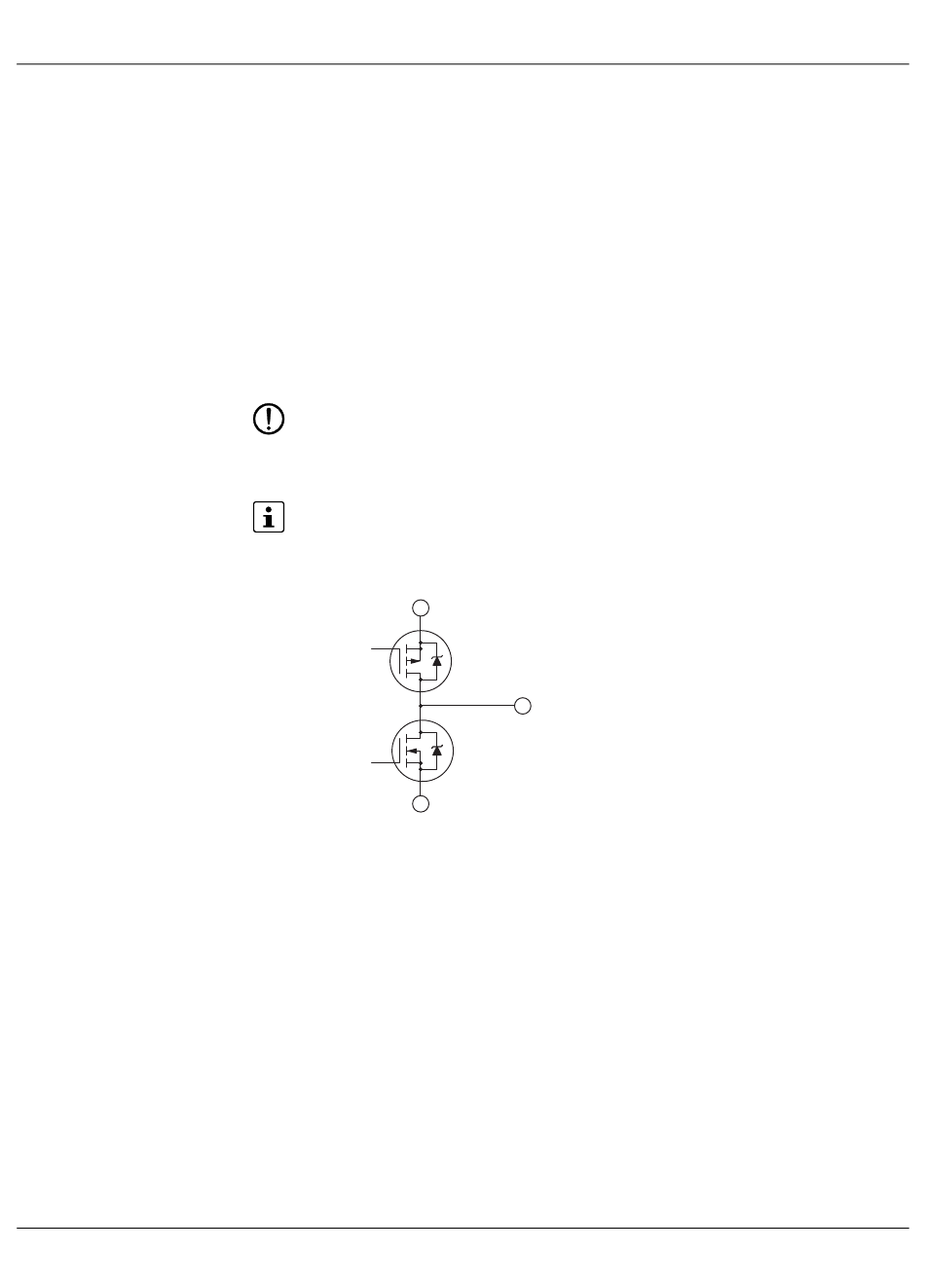

Figure 6-1 Transistor wiring of the outputs
V 12a
S
G
D
D
G
S
GND
Section 9.
OUT
Wiring the outputs and inputs
