INTRODUCTION

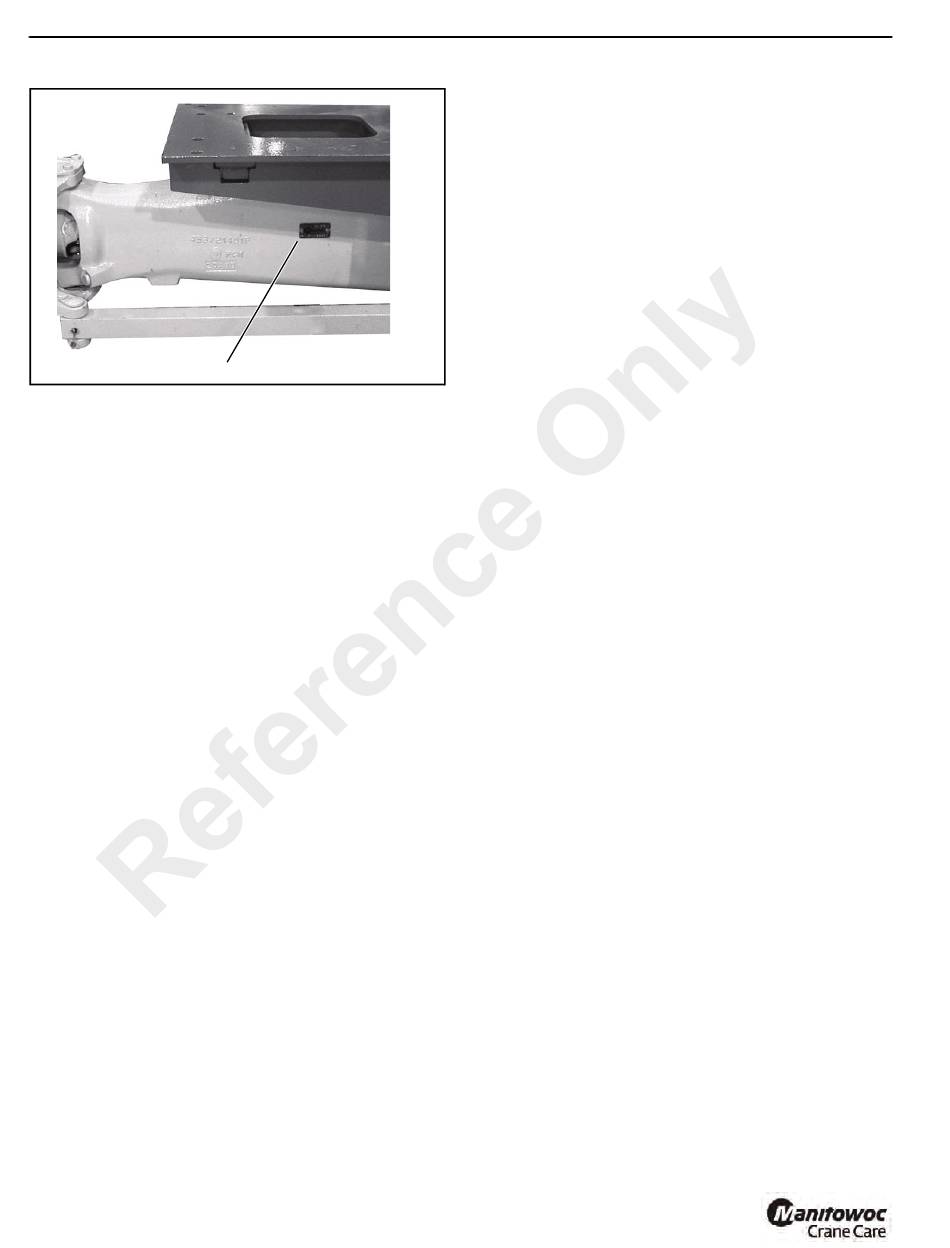

Rear Drive Axle S/N Location

SPECIFICATIONS

ENGINE
Diesel Engine
Make and Model......................................................................................... Cummins 4B3T.3 – 85 diesel, Tier II
Type of Aspiration ...................................................................................... Turbocharged
Horsepower................................................................................................ 85 hp @ 2500 rpm
Low Engine Idle Speed............................................................................... 800 rpm
Maximum Engine Speed ............................................................................ 2600 rpm
Gasoline/L.P.G. Engine
Make and Model......................................................................................... GM4.3L EFI V6, ZEPA & CARB 2004
Horsepower................................................................................................ 110 hp @ 2500 rpm
Low Idle Speed........................................................................................... 700 rpm
Maximum Engine Speed ............................................................................ 2600 rpm
BOOM
Construction............................................................................................... Telescopic, welded box sections
Number of Sections.................................................................................... Three or Four
Reach
Three Section ......................................................................................... 18 ft. 6 in. to 41 ft. (5.65 m to 12.5 m)
Four Section ........................................................................................... 18 ft. 6 in. to 52 ft. 3 in. (5.65 m to 15.03 m)
MAST ROTATION - 360°
Mast Bearing (Diameter) ............................................................................ 33.884 inches (860.6 mm)
Swing Drive Mechanism............................................................................. Hydraulic motor driven gearbox
Swing Speed .............................................................................................. 2.1 rpm
ELECTRICAL
Type ........................................................................................................... 12 volts, direct current
Alternator ................................................................................................... 63 amps
Battery (Two with cold weather start) ......................................................... 90 amp/hr each
FUEL TANK
Capacity ..................................................................................................... 18.5 gal. (70 L)
HYDRAULIC SYSTEM
1-2
p0073
FIGURE 1-6
