HYDRAULIC SYSTEM
1. Cylinder Tube
2. Piston Nut
3. Piston Assembly
4. Wear Ring*
5. O-Ring*
6. Piston Seal*
7. Piston
8. O-Ring*
9. Gland Head Assembly
10. O-Ring*
11. Back-Up Ring*
12. Gland Head
13. Rod Seal*
14. Rod Wiper*
15. Cylinder Rod
*= Seal Kit
Tighten nut to a torque
of 25 lb-ft (34 Nm)
a0439
4-64

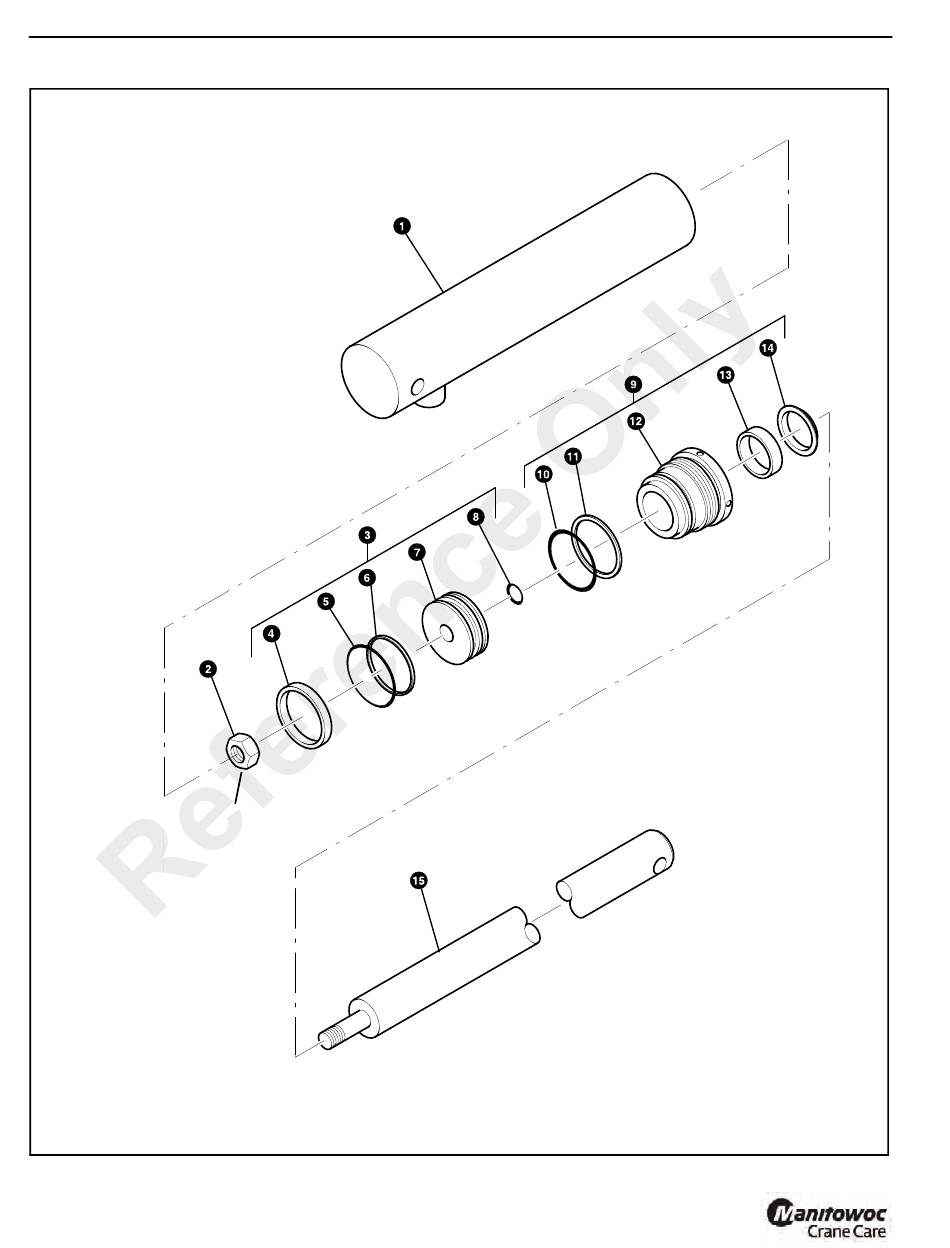

Axle Oscillation Lockout Cylinder
Published 10-21-2010, Control# 198-04
5540F/YB5515 SERVICE MANUAL
FIGURE 4-66
