HYDRAULIC SYSTEM
1. Cylinder Tube
2. Piston Nut
3. Piston Wear Ring (2) *
4. Piston Seal *
5. O-Ring *
6. Piston
7. O-Ring *
8. Tube Stop
9. O-Ring *
10. Ring *
11. Gland
12. Gland Wear Ring (2) *
13. Rod Seal
14. Wiper *
15. Rod
* = Seal Kit Parts
a0440
4-62
Tighten nut to a
torque of 3900 lb. ft
(5304 Nm)

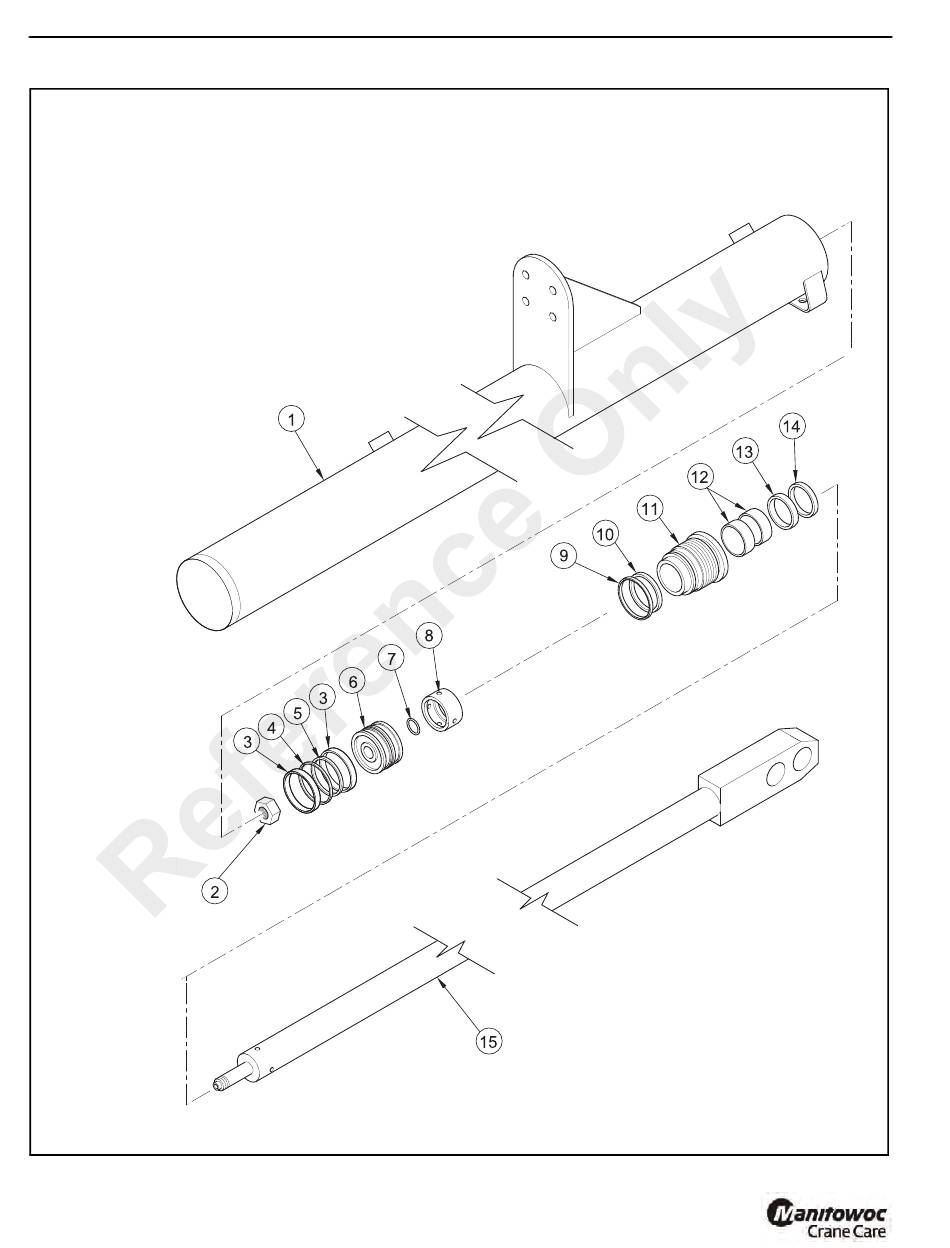

Lower Crowd Cylinder
Published 10-21-2010, Control# 198-04
5540F/YB5515 SERVICE MANUAL
FIGURE 4-64
