HYDRAULIC SYSTEM

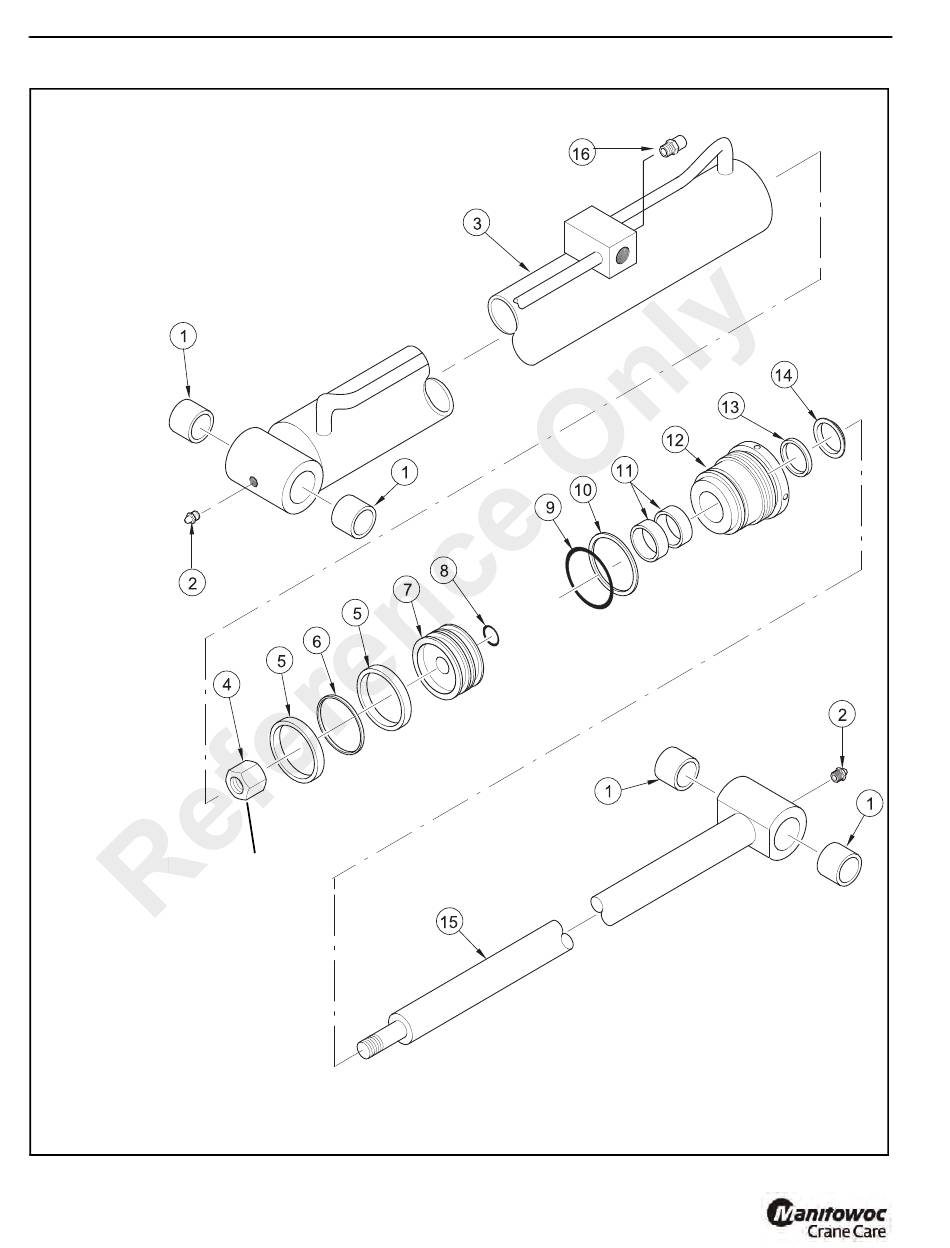

1. Bushing (4)
2. Grease Fitting
3. Cylinder Tube
4. Piston Nut
5. Wear Ring (2) *
6. Piston Seal *
7. Piston
8. O-Ring *
9. O-Ring *
Tighten nut to a
10. Back Up Ring *
11. Wear Ring * torque of 1200 lb-ft
12. Gland Head
13. Rod Seal *
14. Rod Wiper *
15. Cylinder Rod
16. Counterbalance
Valve Cartridge
17. Rod Wiper*
18. Cylinder Rod
19. Plug
20. Fitting
* = Seal Kit Parts
a0432
4-60
(1632 Nm)
Lift Cylinder
Published 10-21-2010, Control# 198-04
5540F/YB5515 SERVICE MANUAL
FIGURE 4-62
