Item Description
1 Mast
2 Right Counterweight
3 Winch
4 Left Counterweight
5 Washer
6 Bolt
7 Washer
8 Nut
9 Bolt
10 Washer
11 Swing Bearing
12 Lock Washer
13 Bolt
14 Swing Motor
15 Nut
16 Tulsa Swing Gear Box
17 Bolt
18 Eccentric Ring
19 Pinion Gear Cover
20 Bolt
21 Lock Washer
22 Washer
23 Bolt
24 Bolt
25 Stop Assembly
26 Hydraulic Swivel
27 Bolt
28 Gasket
29 Braden Swing Gearbox
30 Bar
31 Bolt
a0488
Tulsa

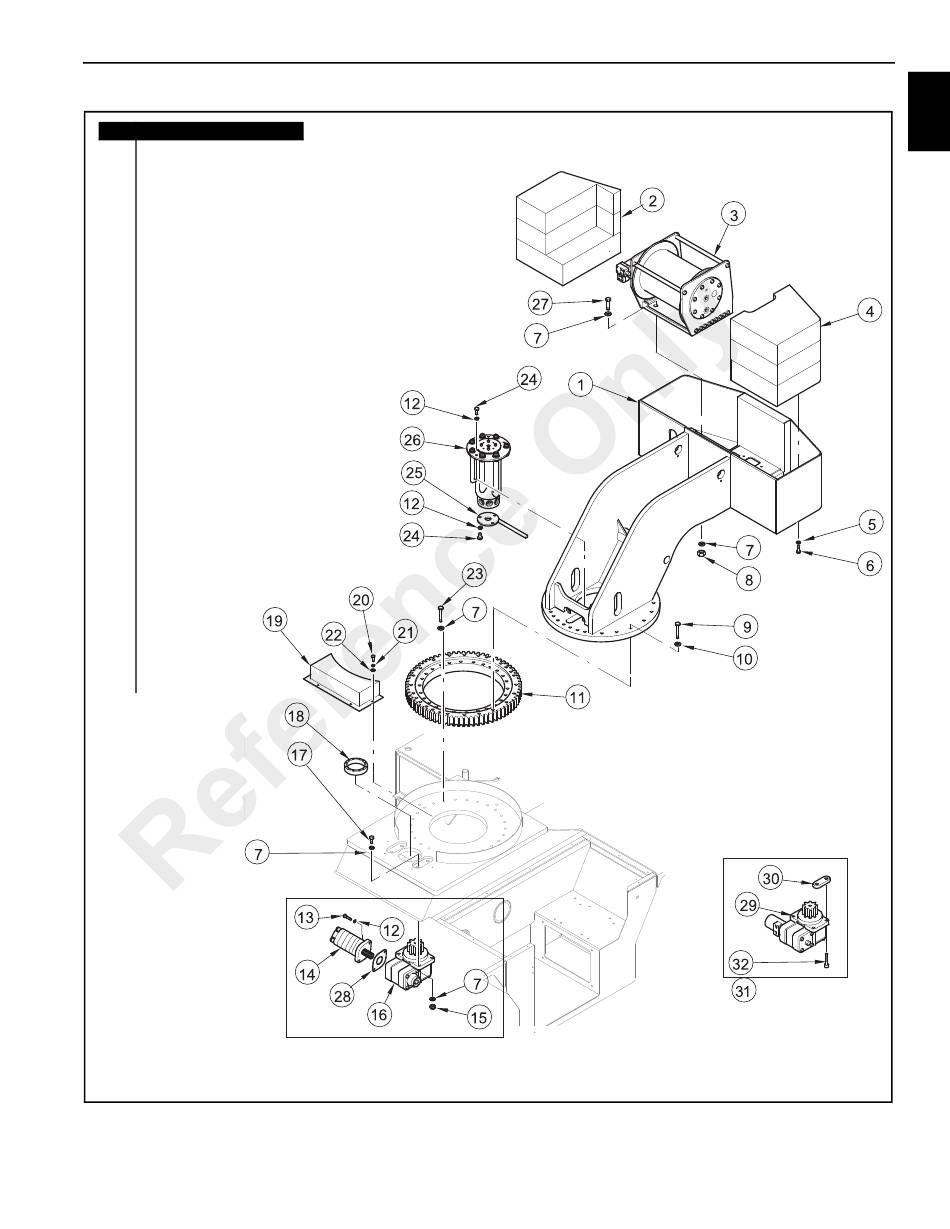

Mast Assembly
11-55
STRUCTURALS
11
Braden
FIGURE 11-125
