STRUCTURALS
Remove and discard the O-ring from the outside of the
drum closure.
a2217
10. Remove the seal and bearing from inside of closure.
11. Remove the primary sun gear and thrust washer
(Figure 11-68) from the primary planet carrier.
a2218
11-36
12. Remove the primary planet carrier from the drum
(Figure 11-69). Refer to "Planet Carrier Service," for
additional information.

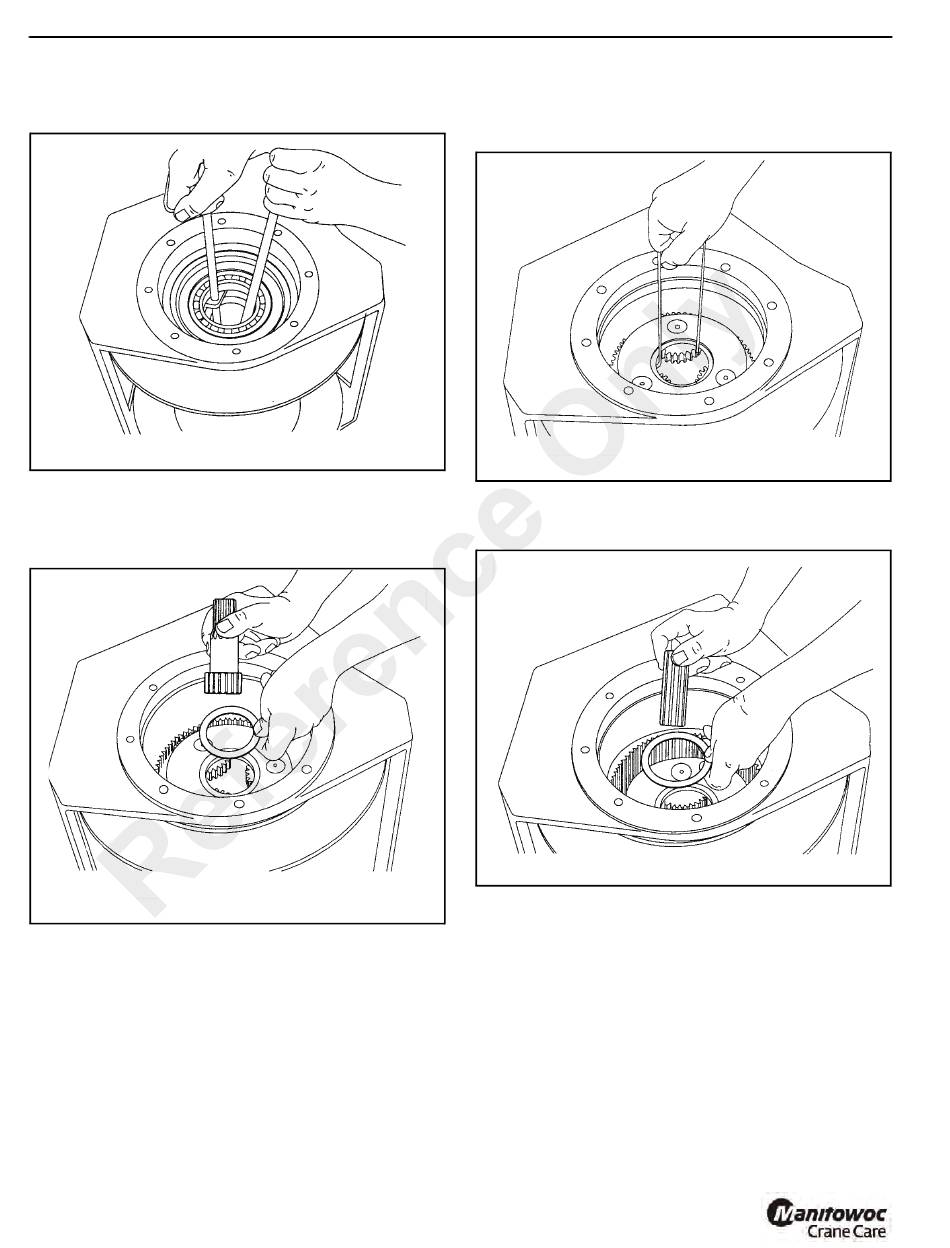

FIGURE 11-67
a2219
13. Remove the output sun gear and thrust washer
(Figure 11-70) from the output planet carrier.
a2220
14. Remove the output planet carrier (Figure 11-71) from
FIGURE 11-68
the drum. Refer to "Planet Carrier Service", for additional
information.
5540F/YB5515 SERVICE MANUAL
FIGURE 11-69
FIGURE 11-70
