ENGINE AND ENGINE SYSTEMS
p1659
Dual Fuel Engine Warning Light
This light is for operator inspection upon powering the
system with the ignition switch. This light displays error
codes, if present, when the ignition switch is turned on,
engine off. The codes are conveyed by flashing the light in
such a manner that the first numeral flashed, a pause, and
then the second number if the code flashed.
The light will flash a code 12 every time the ignition switch is
moved to the ON position; this indicates the system is in the
diagnostic mode. When a code has been set, the code will
be indicated after the code 12 is flashed. For instance, if a
code 24 has been set, the light will flash one time, pause,
flash two times, after which it will flash two times and then
four times, indicating the code 24. If multiple codes are set
they will be displayed in numerical order, not in order of
occurrence.
Refer to Table 6-3 for error codes and error code diagnostics
6-16
Dual Fuel
Warning Light

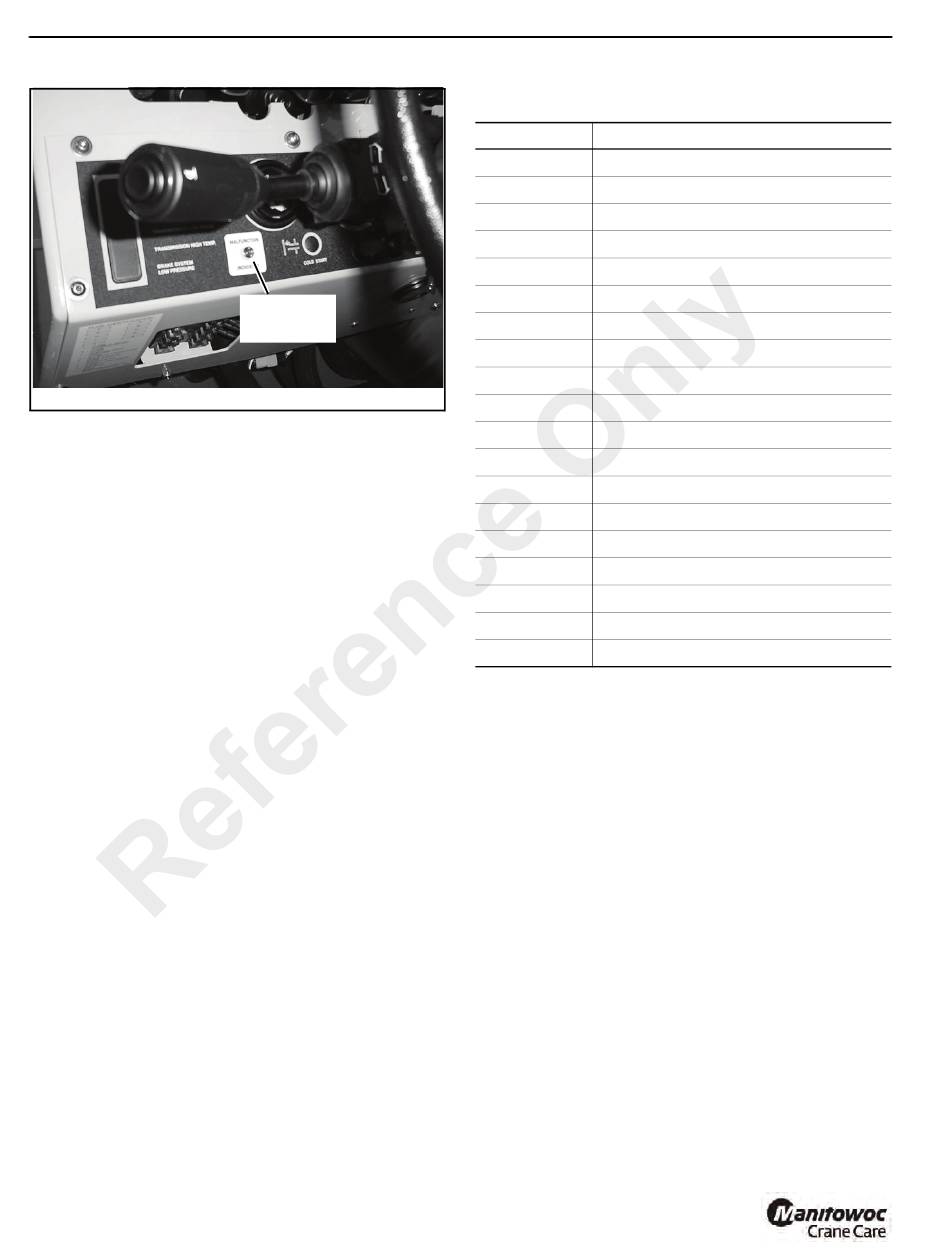

FIGURE 6-18
Published 10-21-2010, Control# 198-04
5540F/YB5515 SERVICE MANUAL
.
Table 6-3: Error Codes
Error Codes
12-
Diagnostic mode indicator
13- Oxygen sensor error
14- Engine coolant tempera -- high
15-
Engine coolant temperature -- low
21-
Throttle position sensor error
22- Throttle body actuator not responding
23- Inlet air temperature sensor -- low
24-
Inlet air temperature sensor -- high
25-
Electronic ignition control error
31- Drive by wire error
32- System voltage low
41-
Manifold absolute pressure sensor error
43-
Fuel Injector fault
51- EPROM fault
52- Analog to digital converter fault
61-
LP solenoid relay fault
62-
Fuel pump relay fault
63- Dual fuel relay fault
64- Ignition power relay output fault
Error Description
