5540F/YB5515 SERVICE MANUAL
a396630

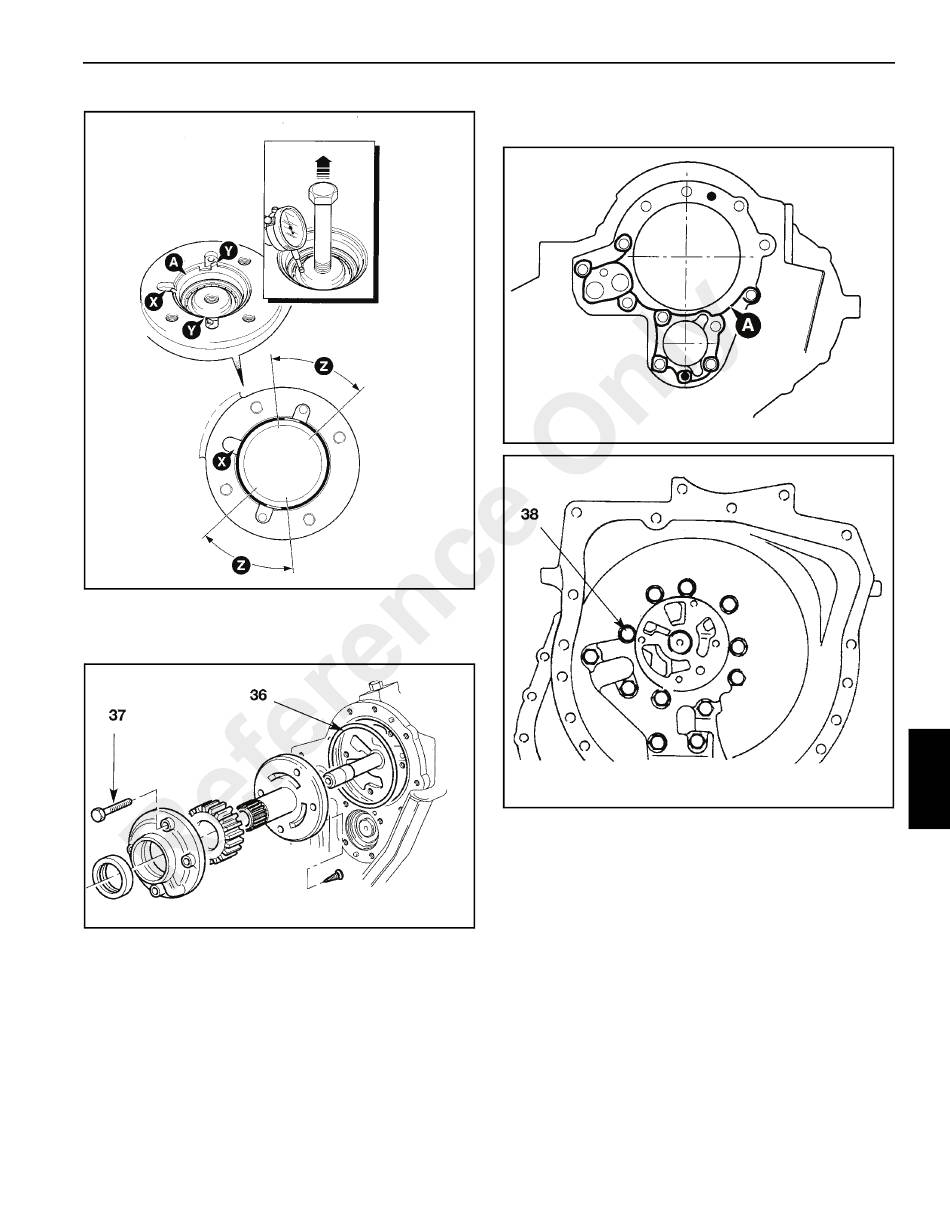

36. Place new pump sealing ring 36 (Figure 7-62) in
position. Make sure that the charge pump drain hole is
clear before fitting a new oil seal to the pump housing.
a388140
37. Install pump taking care to align mounting holes. Apply
Loctite 242 to bolts 37 and, using new sealing washers,
tighten to 31 lb ft (28 Nm) Apply a bead of Loctite 574
Multi gasket to the mating face of the gearbox cover as
shown at A. Refit the torque converter housing. Apply
Loctite 242 to the 12 bolts and tighten to 42 Ib ft (56 Nm).
38. Apply a bead of Loctite 574 Multi gasket to the mating
face of the gearbox cover as shown at A (Figure 7-63).
GROVE
TRANSMISSION AND TORQUE CONVERTER
Install the torque converter housing. Apply Loctite 242 to
the 12 bolts and tighten to 42 Ib ft (56 Nm).
a388020
FIGURE 7-61
221260
39. Install torque converter pressure relief valve assembly
39a (Figure 7-65). Install the valve ball and spring.
Ensure that larger diameter of spring is located securely
over the spigot on the plug. Use a new sealing washer,
apply Loctite 242 to the plug, then tighten. Install the
torque converter pressure regulating valve assembly
FIGURE 7-62
39b; Fit the spool and spring. Apply Loctite 242 to the
plug, then tighten.
40. Using a new gasket 40 mount pressure maintenance
valve onto casing. Apply Loctite 242 to bolts and tighten
to 7.4 lb ft (10 Nm).
NOTE:
Published 10-21-2010, Control# 198-04
To avoid contamination of sealant printed on
gasket face keep in protective wrapper until
needed.
FIGURE 7-63
7
FIGURE 7-64
7-45
