AXLES/DRIVE SHAFTS/WHEELS AND TIRES
must not be at right angles as at Y or at an

intermediate angle as at Z.
3.
Apply grease with a grease gun to the fittings on the

journal crosses and on the slip joint. Apply grease until it
exists through the seals. See Lubrication Procedure on

this page.
4.
Check the drive shaft for correct balance before the

machine is put into operation. Lower the outriggers to lift
the wheels off the ground. Operate the drive train and

check for vibration. If vibration is found, stop the
machine and check the drive shaft. Make sure the drive

shaft yokes are in the same plane.

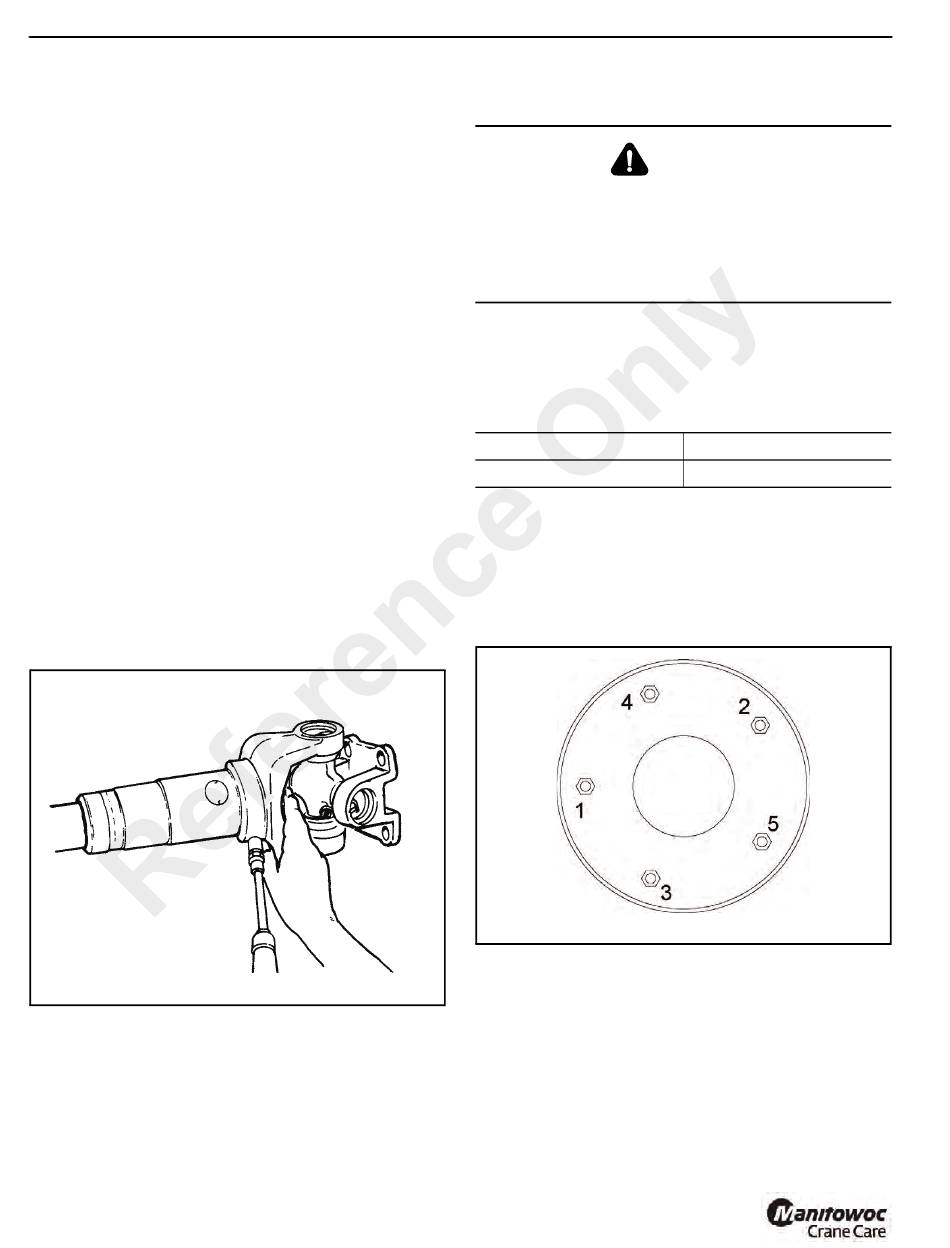

Lubrication Procedure


The drive shaft is an important part of the drive train and

needs regular maintenance. There is a grease fitting on the
slip joint and on each journal cross. Apply grease to these
fittings every week or 50 hours of operation, whichever

occurs first. Use Lithium based, E.P. No. 2 bearing grease.
Always apply enough grease to the fitting to remove old

grease. On the slip joint, apply grease to the fitting until the
grease comes through the hole in the end off the shaft. Put

your finger over the hole Figure 8-53 and continue to apply
grease until the grease shows at the seal on slip joint.

At each lubrication, check the drive shaft for side movement.
As wear in the bearings increases, the side movement will

increase. Movement must be to minimum to prevent
vibration during operation.









a0317



8-30
WHEEL & TIRES
Never try to disassemble the wheel until all air is released
from the tire. The retaining ring and rim of the wheel and
tire can come off with explosive force and can cause
serious injury or death. Be extremely careful when
working with them. Always use a tire and rim cage guard
when inflating tires.

Tire Inflation

Check the tire pressure daily before operation. Also look for
cuts and damage.
385/65R22.5 Radial

Wheel Stud Nuts

The tightening order of the stud nuts is shown in Figure 8-54.
Check the tightness of the lug nuts weekly or after every 50
hours of operation, whichever occurs first.
Wheel stud torque is 500 lb-ft (680 Nm).
a0152
FIGURE 8-53
Published 10-21-2010, Control# 198-04
5540F/YB5515 SERVICE MANUAL
WARNING
Tire Pressures
Tire Size
120 psi. (828 kPa)
Pressure
FIGURE 8-54
