5540F/YB5515 SERVICE MANUAL
p0216
p0217

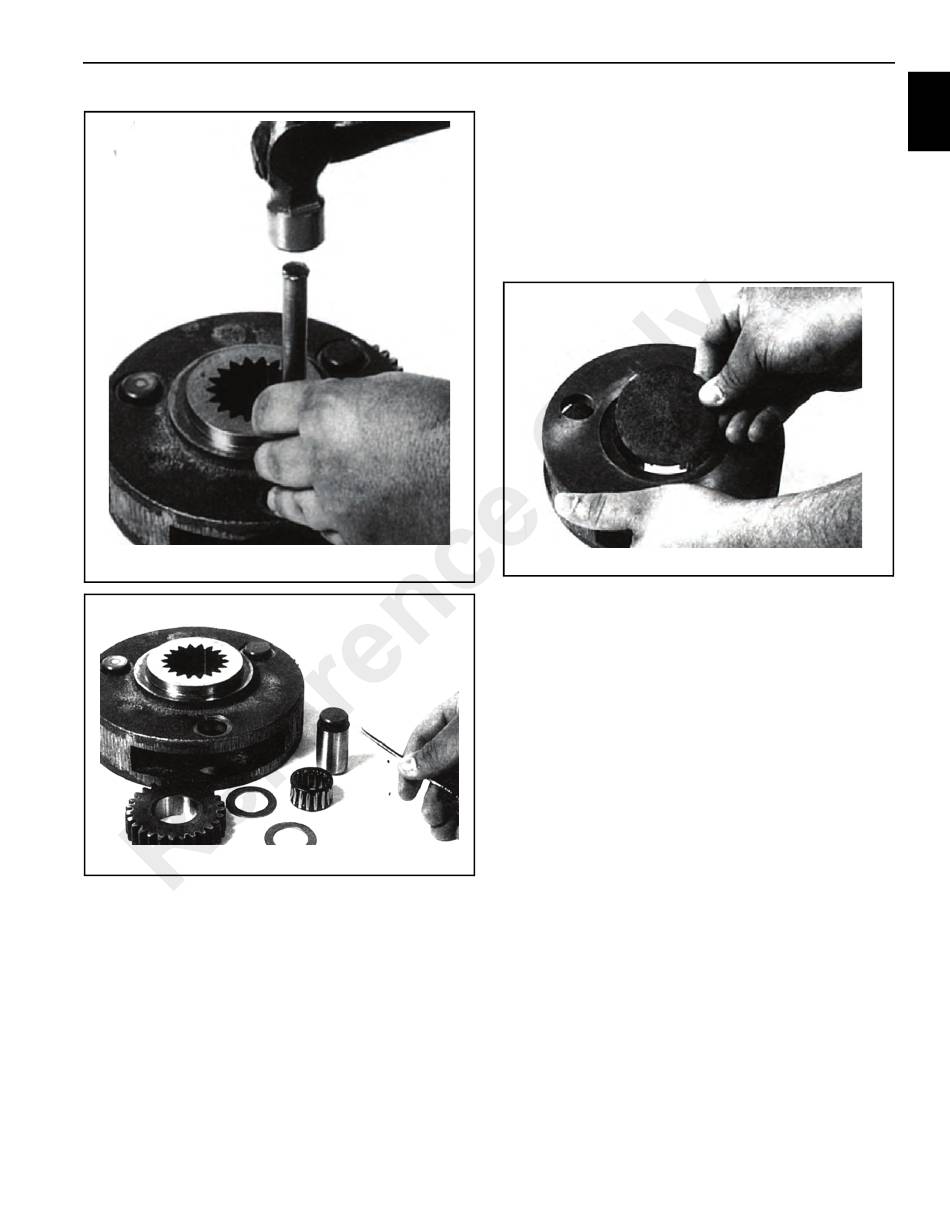

3. Remove the planet gears, thrust washers and bearings
from the carrier (Figure 11-52).
4. Inspect the pins, bearings and gear bores for evidence
of wear and replace if necessary.
5. On the output planet sets, note that two bearings with a
spacer between them are used.
6. Before assembling the planet sets. Be sure to insert the
round plates (Figure 11-53) in the carriers.
p0218
FIGURE 11-51
7. To assemble the planet sets, be careful to line up the
planet pins with the thrust washers and bearing and then
press the knurled part of the pin into the carrier. If the
pins are not lined up properly, the thrust washers can be
shattered during the pressing operation.
FIGURE 11-52
11-27
STRUCTURALS
11
FIGURE 11-53
