AXLES/DRIVE SHAFTS/WHEELS AND TIRES
Published 10-21-2010, Control# 198-04
1. Bearing
2. Oil Seal
3. Hub Swivel
6. Wheel Bearing Cone
7. Wheel Bearing Cup
8. Bearing Carrier
9. Combination Seal
10. Wheel Bearing Cone
11. Wheel Bearing Cup
12. Brake Seal
13. Seal
14. Seal
15. Brake Piston
16. Brake Carrier
17. Annulus Ring
18. Retaining Ring
19. Brake Seal
20. Retainer Plate
21. Verbus Ripp Bolts (4)
22. Friction Plate (3)
23. Counter Plate (4)
24. Pressure Plate
25. Retaining Ring
26. Thrust Pad
27. Planet Gear Carrier
28. Planet Gear Assembly (3)
29. Snap Ring (3)
30. Sun Gear
31. Snap Ring
32. O-ring
33. Bolt (2)
34. Trunnion (2)
35. Bolt (8)
36. Shim
37. Seal (2)
38. Bearing (2)
39. Oil Seal
40. Retaining Ring
41. Bearing
42. Drive Shaft
NOTE! Items 39, 40 and 41
are used on drive axles only.

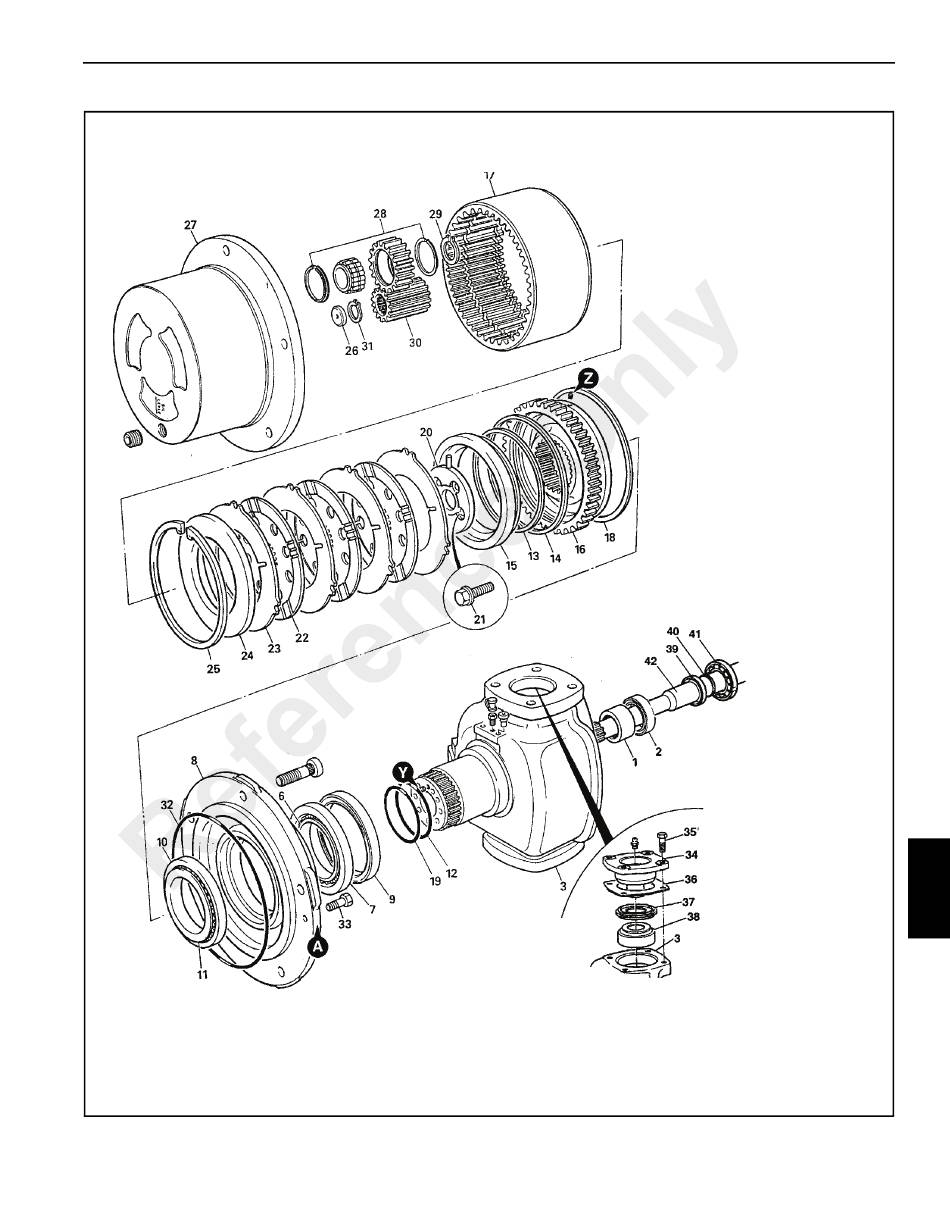

FIGURE 8-45
