HYDRAULIC SYSTEM
1. Spool and Housing
2. O-Ring
3. Load Check Poppet
4. Load Check Spring
5. O-Ring
6. Wiper Seal
7. Seal Plate
8. End Mechanism Kit
9. O-Ring
10. Wiper Seal
11. Seal Plate
12. Spring Seat
13. Spring
14. Screw
15. Spool Cap
16. Cap Screw
17. End Cap
18. Seal Washer (7) *
19. Screw (7)
a1618 a1618
4-46
Spool Valve Section
Published 10-21-2010, Control# 198-04
5540F/YB5515 SERVICE MANUAL

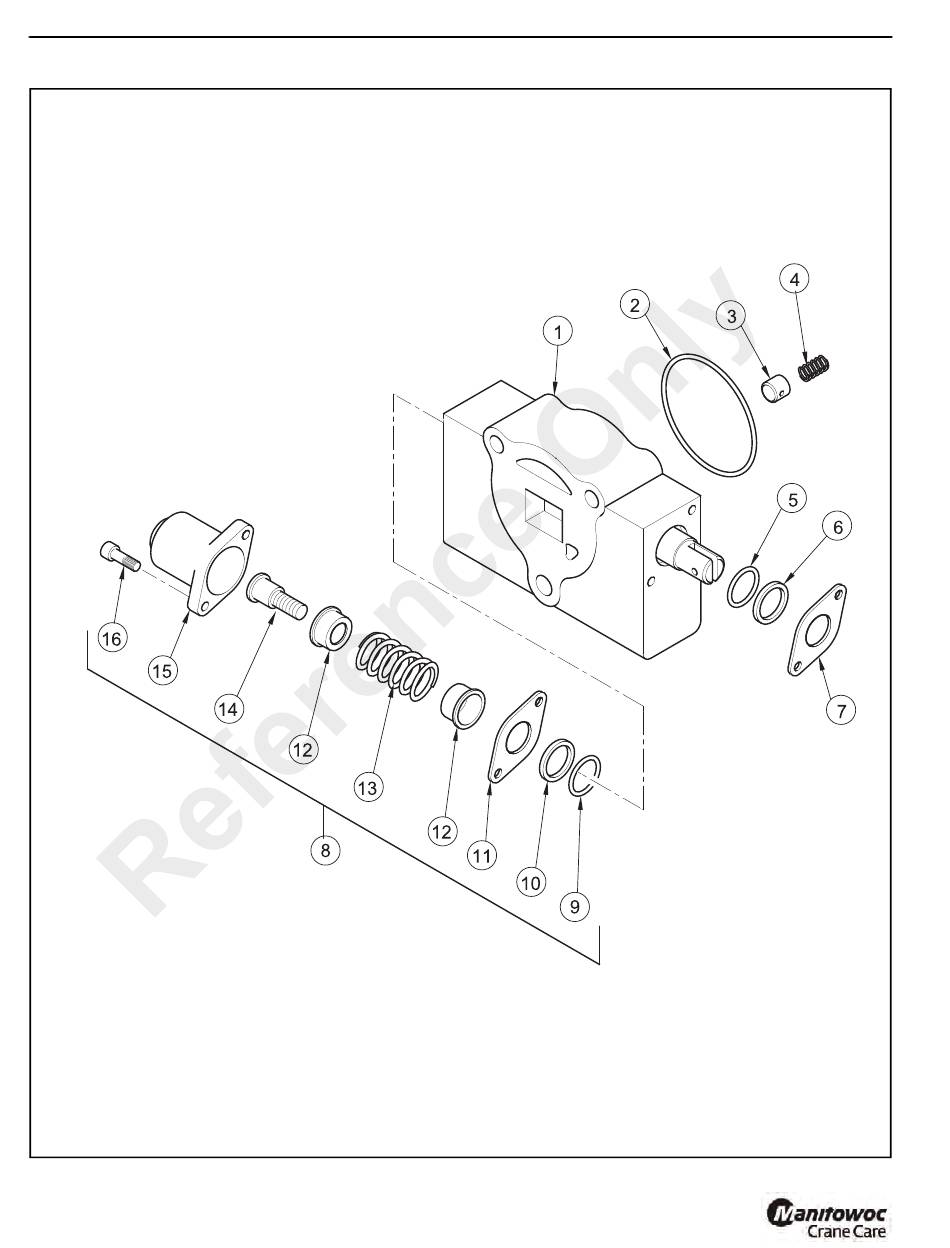

FIGURE 4-43
