Manitowoc Grove 5540F Service Manual page 109

5540F/YB5515 SERVICE MANUAL
1. Main Relief Valve
2. Inlet Valve Section
3. O-Ring
4. Shut Off Plug
5. Swing Valve Spool
Section
6. Mid-Inlet Section
7. Anti-Void Assembly
8. Telescope, Winch and
Boom Lift Valve Spool
Sections
9. Outrigger Valve Spool
Sections
10. Handle Assemblies
11. N/A
12. Plug Assembly
13. Mid-Inlet Section
14. Mid-Inlet Section
15. Mid-Inlet Section
16. Outlet Valve Section
17. Tie Rods
18. Washers
19. Nuts
20. Nuts
21. Washers
22. Plug
a1618 a1618
GROVE

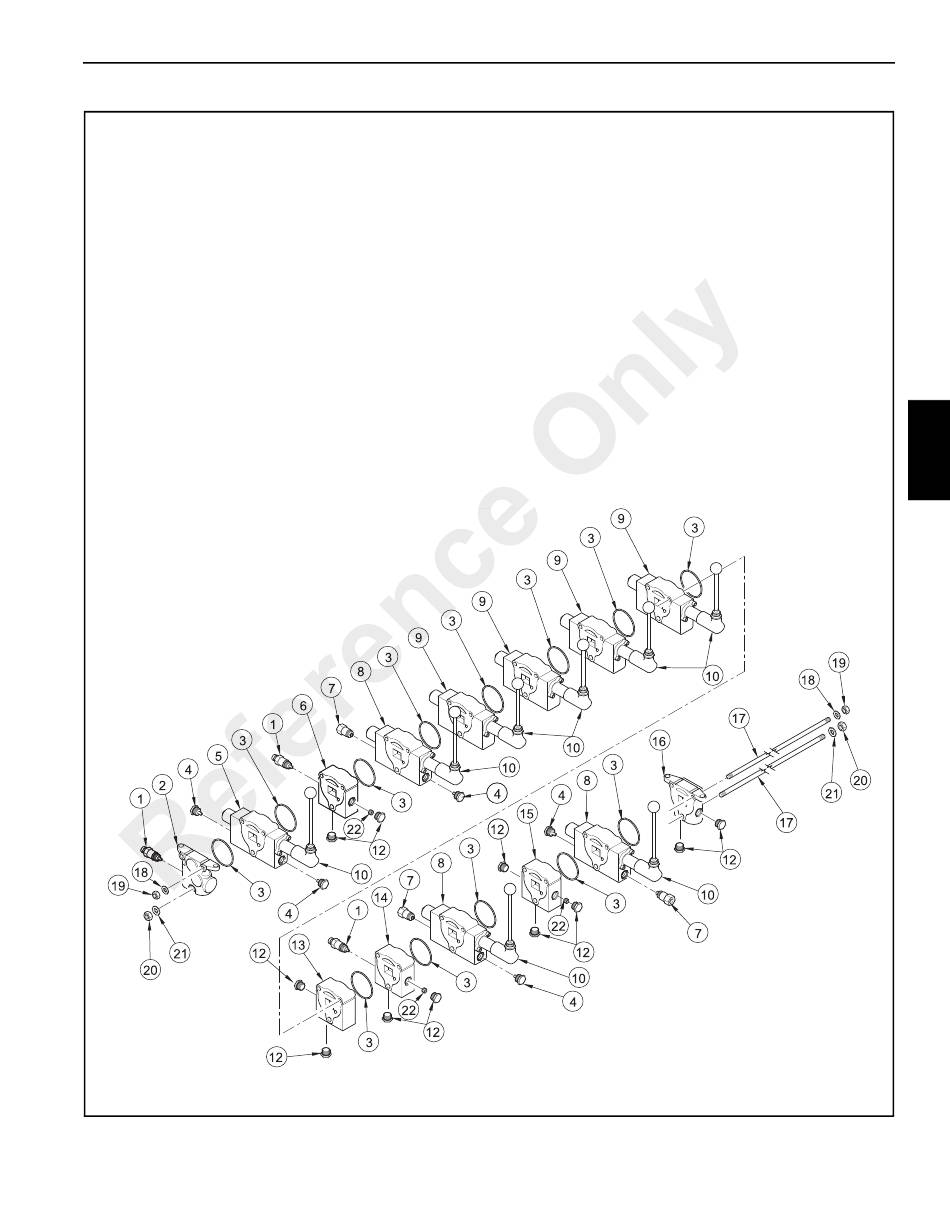

Main Control Valve
Published 10-21-2010, Control# 198-04
HYDRAULIC SYSTEM
FIGURE 4-42
