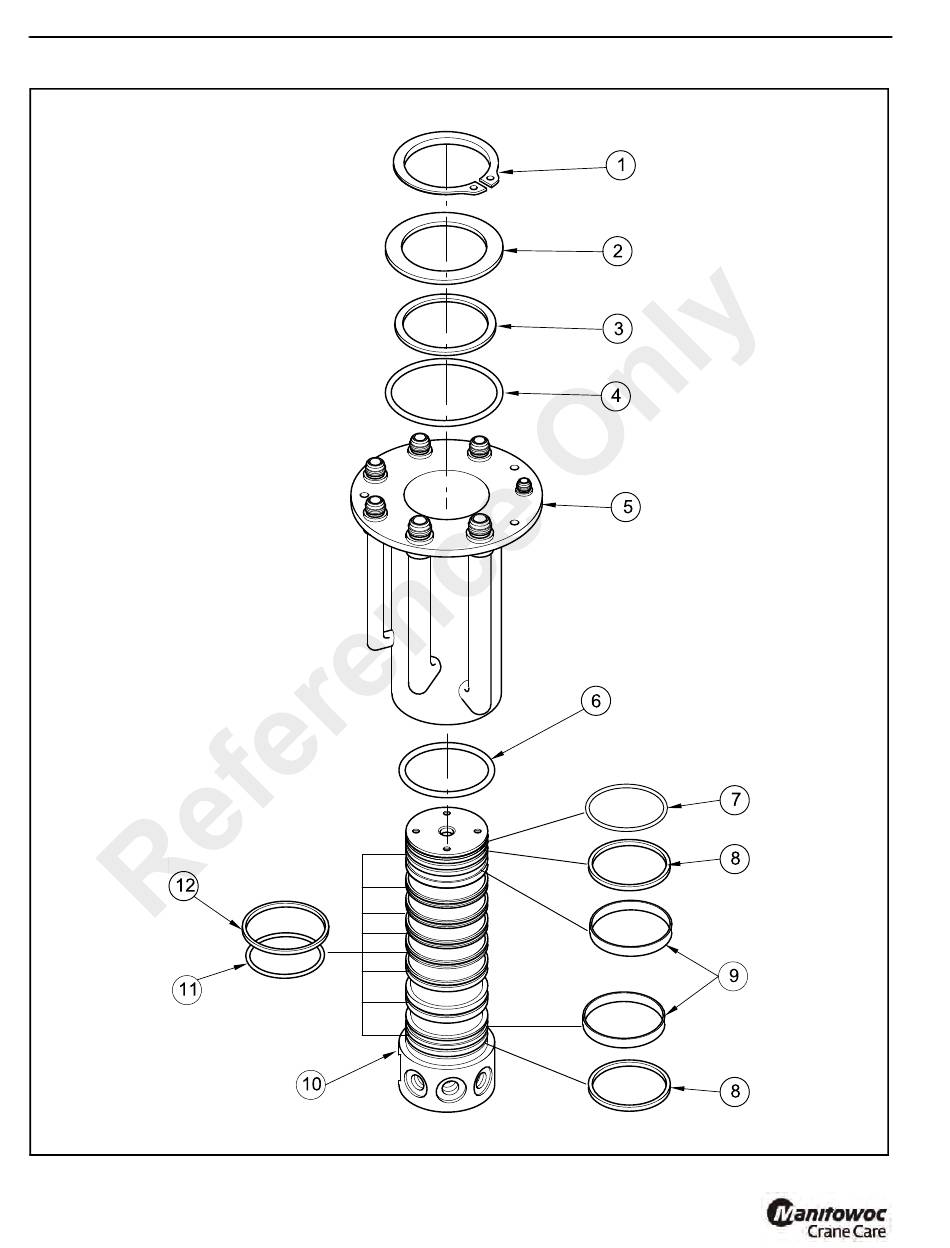

HYDRAULIC SYSTEM



1. Retaining Ring
2. Retainer

3. Thrust Washer *
4. O Ring *

5. Housing
6. O Ring *
7. O Ring *

8. Seal (2) *
9. Wear Ring (2)*
10. Spool

11. O-Ring (8)*
12. Piston Seal (8) *

* Included In Seal Kit

















a1562
4-56
Published 10-21-2010, Control# 198-04
5540F/YB5515 SERVICE MANUAL
FIGURE 4-61
