STRUCTURALS
NOTE: Refer to Figure 11-8 for steps 8 thru 14.
8. Remove the top rear wear pads from boom section 2.
9. Remove the cotter pin and pin securing the telescope
cylinder bracket to the rear of boom section 2. (Refer to
Figure 11-11)
10. Loosen the front top and bottom side wear pads on
boom section 2.
11. Remove the bolts and lock washers securing the wear
pad retainer plates to the front of boom section 2,
remove the retainer plates.
1. Boom Section 2
2. Wear Pad
3. Bolt
4. Lockwasher
5. Wear Pad
6. Wear Pad
7. Plug
8. Set Screw
9. Wear Pad
10. Retainer Plate
11. Bolt
11526
11-6
5540F/YB5515 SERVICE MANUAL
12. Raise up on the boom section 3 assembly and remove
the wear pads from the boom section 2.
13. Slide the assembly out of the boom section 2.
14. As necessary, remove the following items from the boom
section 2:
a. Remove the bolts and lockwashers securing the
lower rear wear pads, remove the wear pads.
b. Remove the front top and bottom side wear pads,
plugs and set screws.

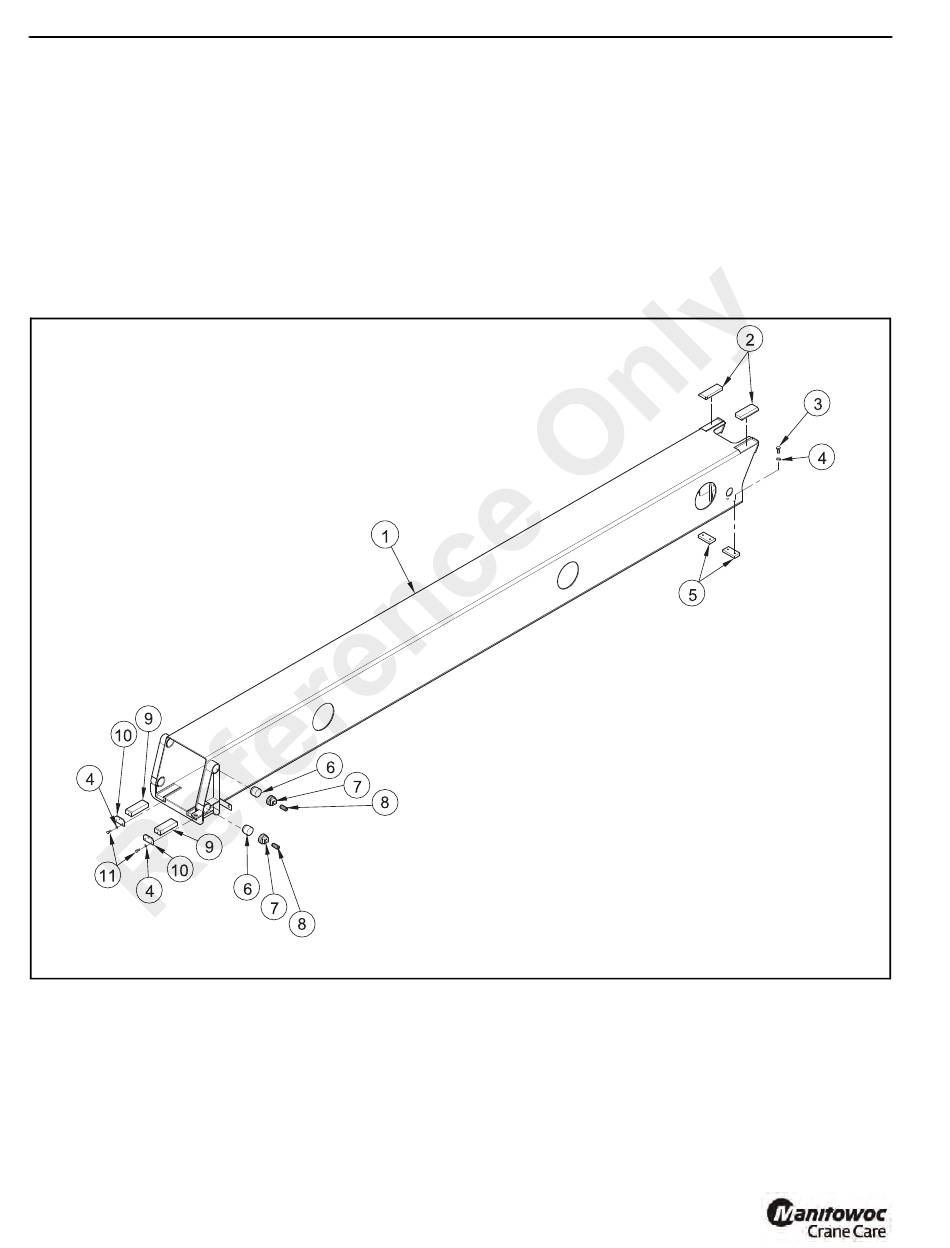

FIGURE 11-8
