1. Switch on the system.

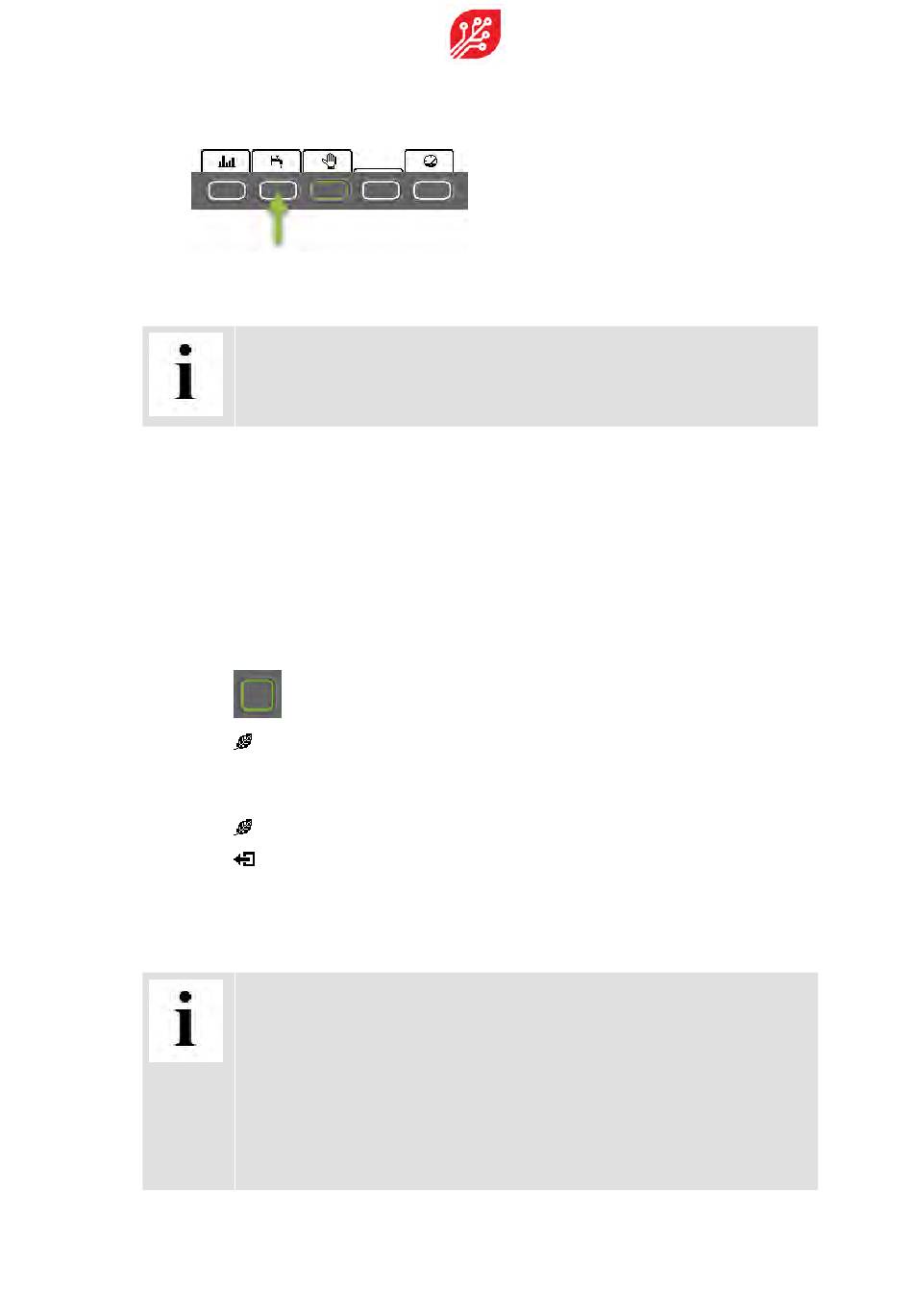

2. Press F2 (Flush):
3. Check that the pressure is 3.0 bar (43.5 psi). The top right of the Control Panel shows
the pressure.
Please note: If the machine has been in storage for a longer period of time,
the pressure may be higher. After flushing the system, the pressure should
return to the regular 3.0 bar (43.5 psi).

4.3 Sensors check

Before each use, check functioning of the detection sensors:
1. Make sure there are no plants in the detection line (to prevent the corresponding
nozzles from spraying continuously in step 6).
2. Switch on the system.
3. Wait for the Main screen to open.
4. Enter the Service mode.
5. Press repeatedly until menu 102 opens.
6. Press to activate Detection. As long as Detection is active, the leaf icon will flash.
7. Activate nozzles by supplying chlorophyl (green plant material) in the corresponding
sensor channels.
8. Press again to stop.
9. Press to return to the Main screen.
Additionally, use one of the other Service mode options in "Nozzle cleaning menu (102)" on
page 43.
Replace a faulty or damaged sensor with a new one.
If no replacement sensor is available, move a functioning sensor from the
outside of the boom to the position of the faulty sensor. In this way, you can
still spray a complete area (even though it is not as wide as you would like it to
be) and communication is not interrupted.
Make sure that the nozzle configuration is correct for this sensor (distance
and height). Also adjust the offset, because this changes if the sensor's
position on the boom is changed. Please contact your supplier to support you
with this step.
WEED-IT Quadro | User Manual - BT-UMWEEDQ-B | 27 / 82
