WEEDit Transport Unloading & Setup Guide
Version 3B for WEED-IT Quadro
Please read this guide, MP-375 kit information and Croplands
Safety booklet before unloading the WEED-IT sprayer.
Items required for assembly and set up.
Suitable lifting equipment to remove upper 6 meter
boom tip from the transport position, (approximate
weight of the 6 meter boom is 500kgs).
Tension wrenches capable of 800 Nm and 250Nm
tension.
Tyre inflation equipment and pressure gauge to suit.
WEEDit Transport Kit (MP-375) information sheet (2
pages) (should be in the red box with controllers etc).

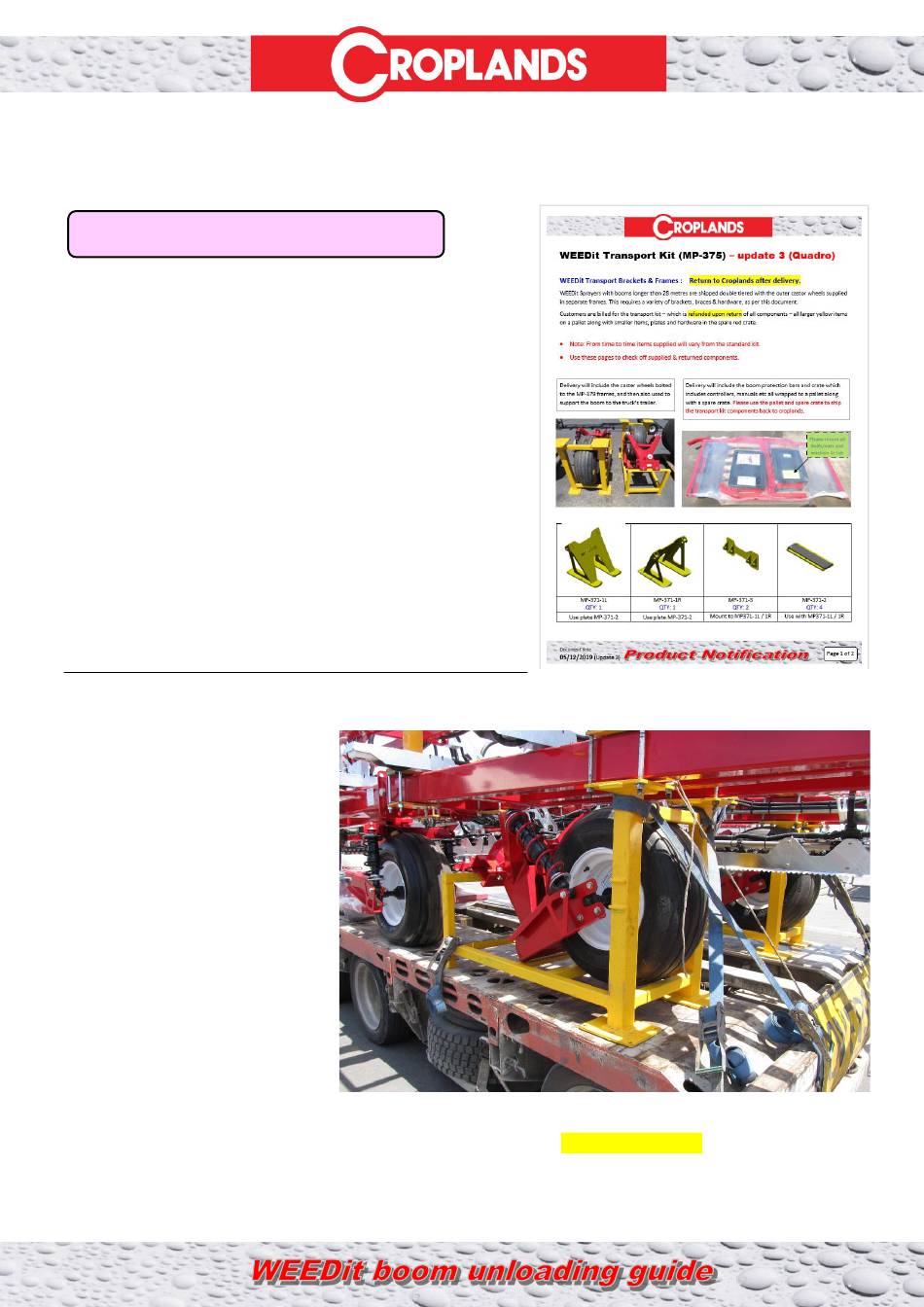

From late 2019 onwards 36m WEED-
IT sprayers are being delivered with
the castor wheels installed into
individual frames which are also
used to support the boom to the
trailer's bed.
(1) Prepare to unload from the
truck. Remove all tie downs etc.
(2) Unload both castor wheel &
frame assemblies.
(3) Connect suitable size tractor to WEEDit unit and tow off the truck - slowly and carefully. Check the clearance
between the spray rails and truck ramps as the machine is unloaded. This is not a 1 man job.
Maximum transport distance of 1 km below 5 KM/H until upper boom is removed.
BT-OMWEED-TRANS (V3B)
(as shown for a 36 metre boom)
Page 1 of 10
