4.2.2 Navigation

All of the submenus for this module contain commands to redisplay the menu or return
to the previous menu. You can always return from a submenu to the next higher menu
by pressing [M] on your keyboard.

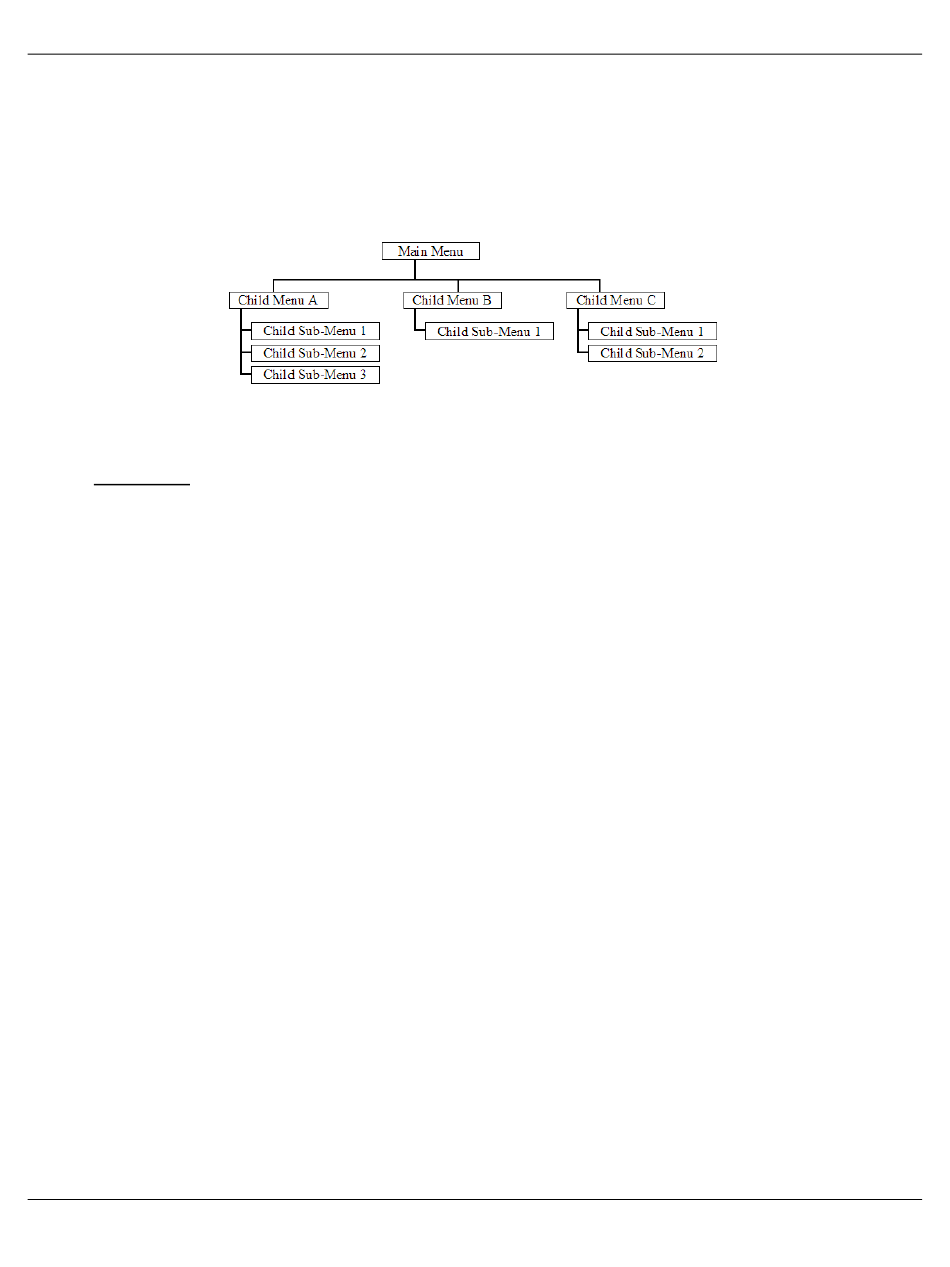

The organization of the menu structure is represented in simplified form in the following
illustration:
The remainder of this section shows the menus available for this module, and briefly
discusses the commands available to you.

Keystrokes

The keyboard commands on these menus are usually not case sensitive. You can enter
most commands in lowercase or uppercase letters.
The menus use a few special characters (?, -, +, @) that must be entered exactly as
shown. Some of these characters will require you to use the SHIFT, CTRL, or ALT keys
to enter them correctly. For example, on US English keyboards, enter the ? command as
SHIFT and /.
Also, take care to distinguish the different uses for uppercase letter "eye" (I), lowercase
letter "el" ( ), and the number one (1). Likewise, uppercase letter "oh" (O) and the
L
number zero (0) are not interchangeable. Although these characters look alike on the
screen, they perform different actions on the module and may not be used
interchangeably.
