MVI69-GSC ♦ CompactLogix or MicroLogix Platform
Generic ASCII Serial Communication Module

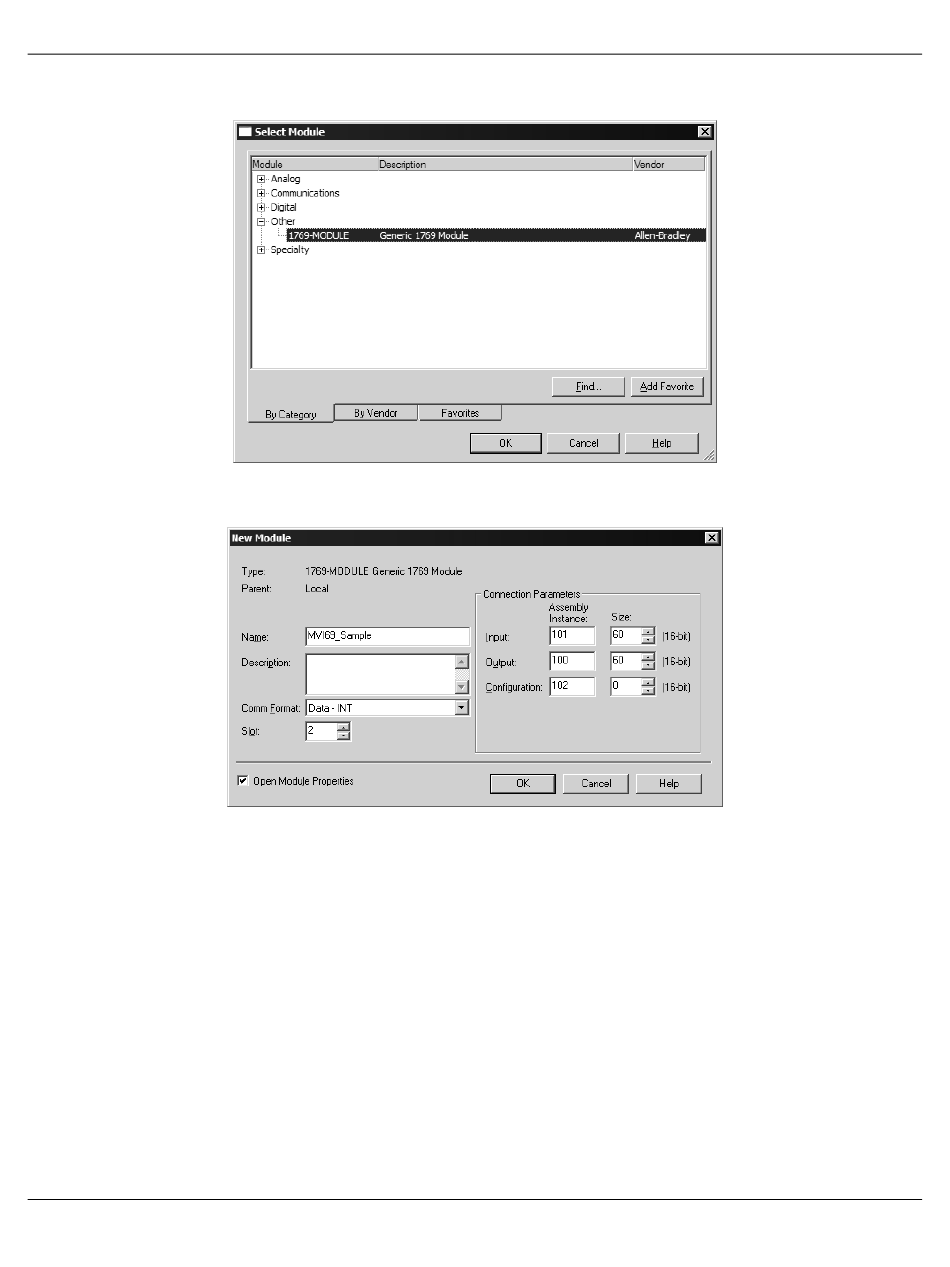

This action opens the following dialog box:
2 Select the 1769-Module (Generic 1769 Module) from the list and click OK.
3 Enter the Name, Description and Slot options for your application, using the values in
the illustration above. You must select the Comm Format as Data - INT in the dialog
box, otherwise the module will not communicate over the backplane of the
CompactLogix rack.
