MVI69-GSC ♦ CompactLogix or MicroLogix Platform
Generic ASCII Serial Communication Module

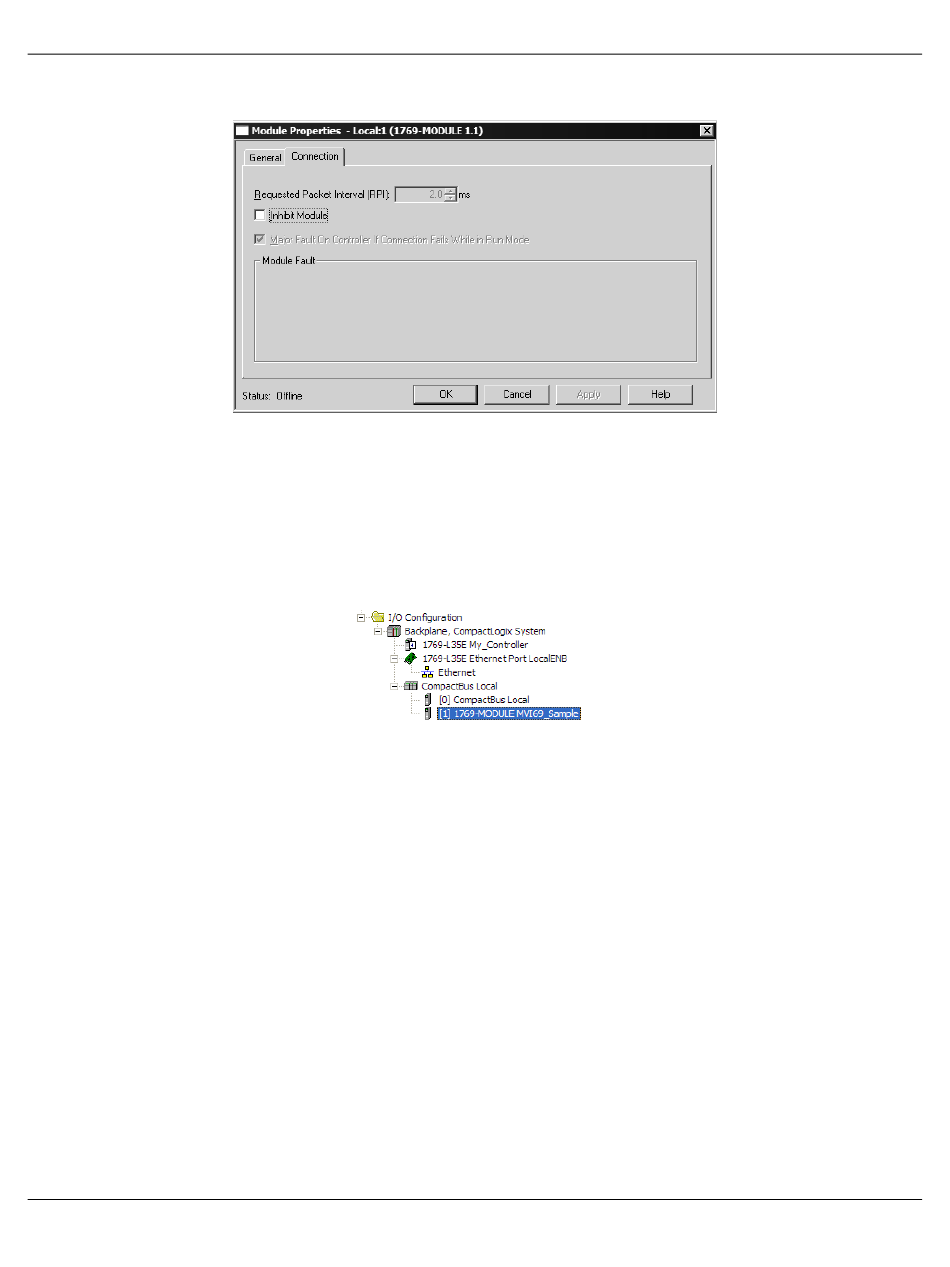

Click OK to continue.
4 Select the Request Packet Interval value for scanning the I/O on the module. This
value represents the minimum frequency the module will handle scheduled events.
This value should not be set to less than 1 millisecond. Values between 1 and 10
milliseconds should work with most applications.
5 Save the module. Click OK to dismiss the dialog box. The Controller Organization
window now displays the module's presence. The following illustration shows the
Controller Organization window:
6 Copy the Controller Tags from the sample program.
7 Copy the User Defined Data Types from the sample program.
8 Copy the Ladder Rungs from the sample program.
9 Save and Download (page 29) the new application to the controller and place the
processor in run mode.
