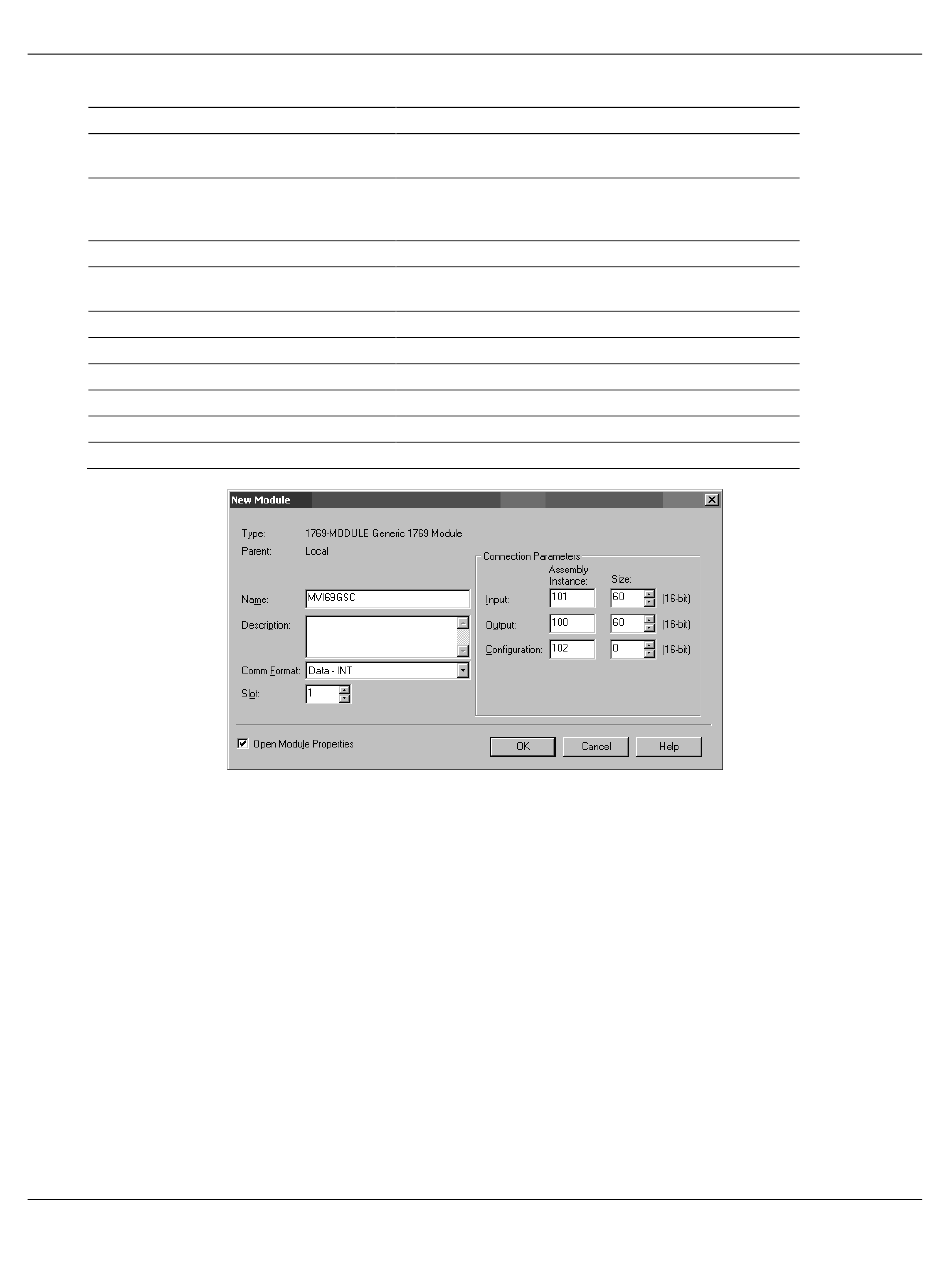

3 Set the Module Properties values as follows:
Parameter
Name
Description
Comm Format
Slot
Input Assembly Instance
Input Size
Output Assembly Instance
Output Size
Configuration Assembly Instance
Configuration Size
ProSoft Technology, Inc.
Value
Enter a module identification string. Example:
MVI69GSC
Enter a description for the module. Example: ProSoft
communication module for ModbusTCP/IP
communication.
Select DATA-INT
Enter the slot number in the rack where the MVI69-
GSC module will be installed.
101
60
100
60
102
0
