MVI69-GSC ♦ CompactLogix or MicroLogix Platform
Generic ASCII Serial Communication Module
1.1

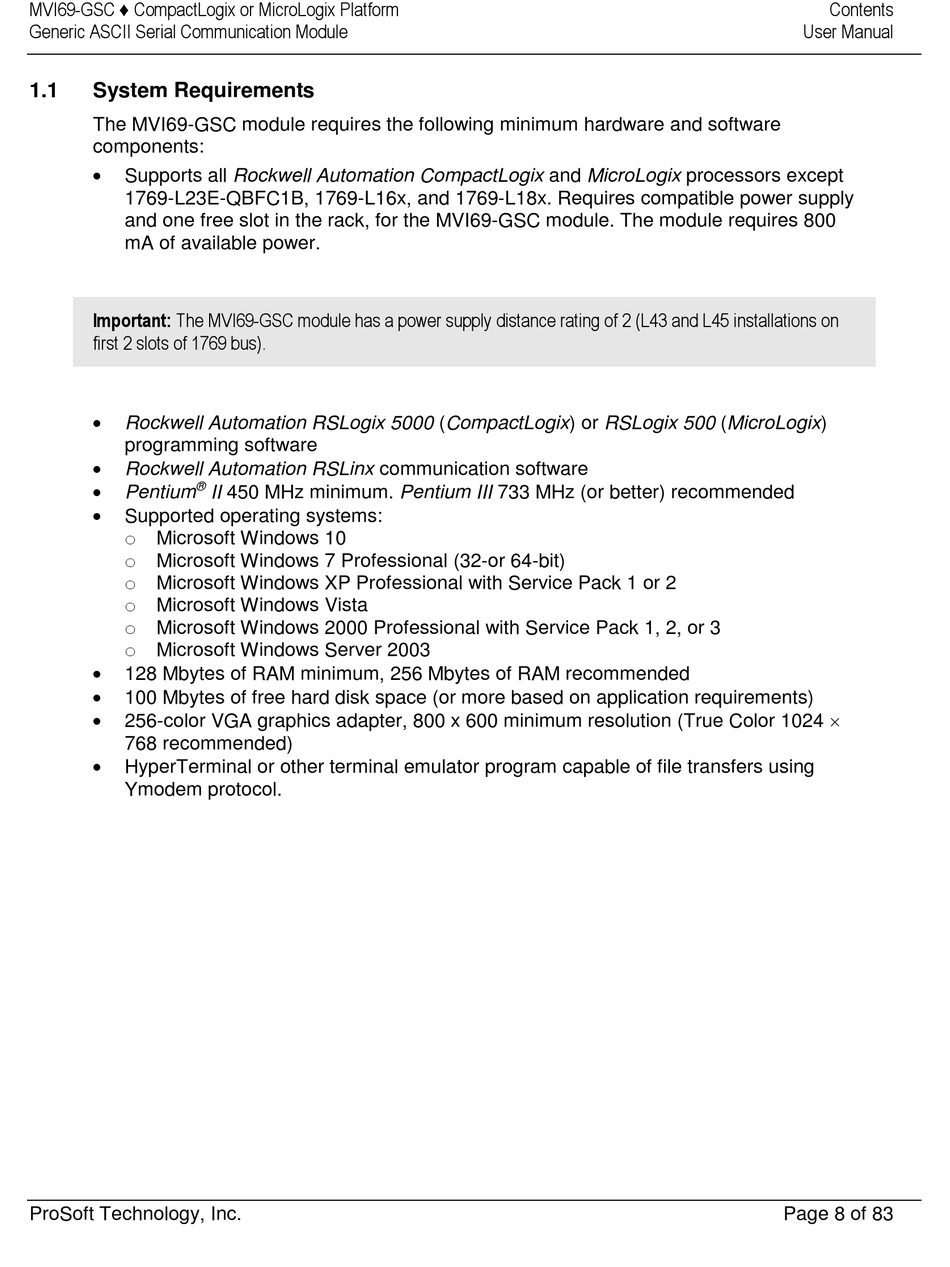

System Requirements

The MVI69-GSC module requires the following minimum hardware and software
components:

Supports all Rockwell Automation CompactLogix and MicroLogix processors except
1769-L23E-QBFC1B, 1769-L16x, and 1769-L18x. Requires compatible power supply
and one free slot in the rack, for the MVI69-GSC module. The module requires 800
mA of available power.
Important: The MVI69-GSC module has a power supply distance rating of 2 (L43 and L45 installations on
first 2 slots of 1769 bus).

Rockwell Automation RSLogix 5000 (CompactLogix) or RSLogix 500 (MicroLogix)
programming software

Rockwell Automation RSLinx communication software

®
Pentium

Supported operating systems:
o Microsoft Windows 10
o Microsoft Windows 7 Professional (32-or 64-bit)
o Microsoft Windows XP Professional with Service Pack 1 or 2
o Microsoft Windows Vista
o Microsoft Windows 2000 Professional with Service Pack 1, 2, or 3
o Microsoft Windows Server 2003

128 Mbytes of RAM minimum, 256 Mbytes of RAM recommended

100 Mbytes of free hard disk space (or more based on application requirements)
 256-color VGA graphics adapter, 800 x 600 minimum resolution (True Color 1024 
768 recommended)

HyperTerminal or other terminal emulator program capable of file transfers using
Ymodem protocol.
ProSoft Technology, Inc.
II 450 MHz minimum. Pentium III 733 MHz (or better) recommended
