MVI69-GSC ♦ CompactLogix or MicroLogix Platform
Generic ASCII Serial Communication Module
7

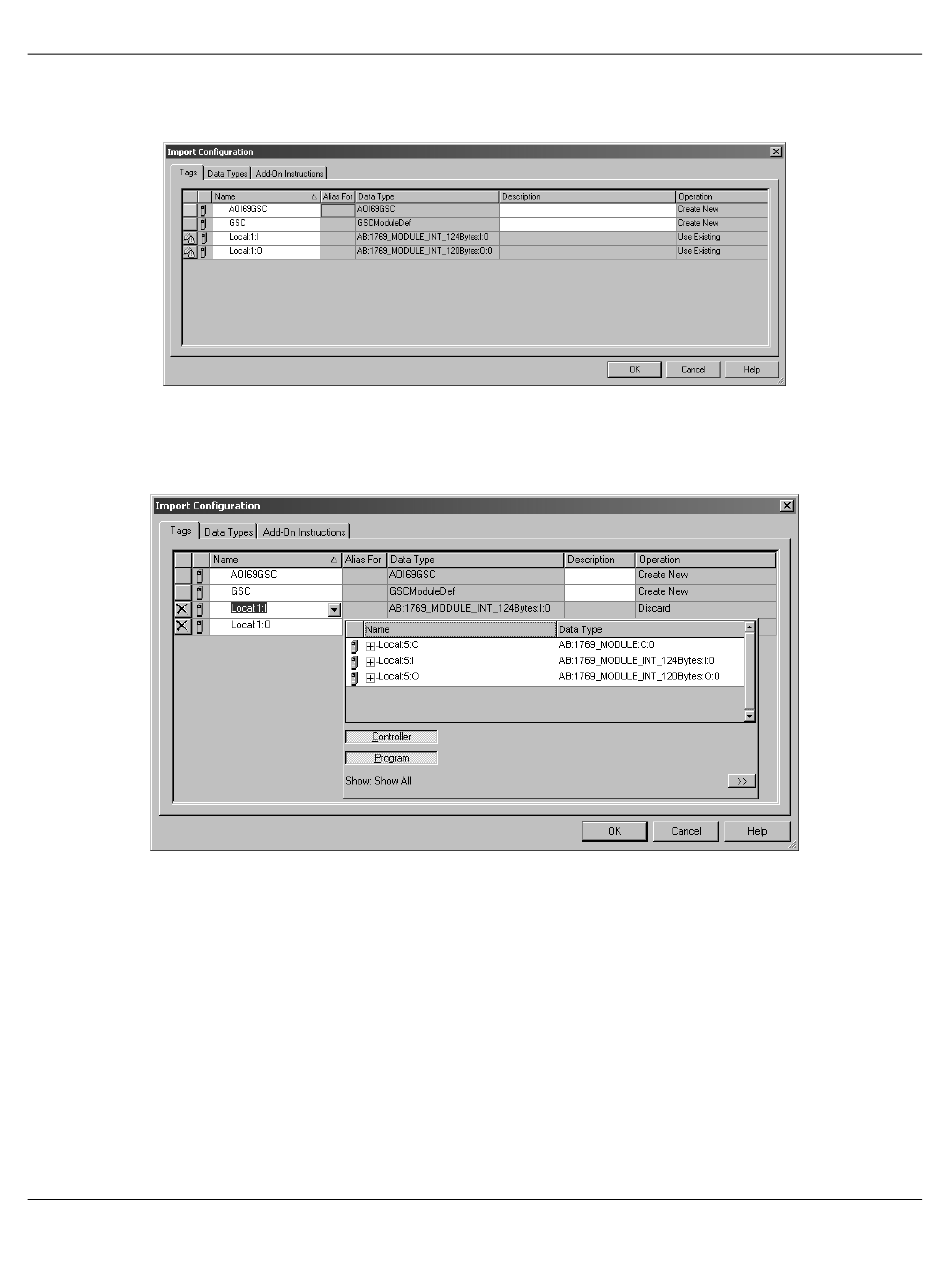

The following window will be displayed showing the controller tags to be created
during the import procedure:
8
If you are using the module in a different slot (or remote rack) select the correct
connection input and output variables associated to the module. If your module is
located in slot 1 of the local rack this step is not required.
ProSoft Technology, Inc.
Contents
User Manual
Page 20 of 83
