ProSoft Technology MVI69-GSC CompactLogix User Manual page 31

MVI69-GSC ♦ CompactLogix or MicroLogix Platform
Generic ASCII Serial Communication Module

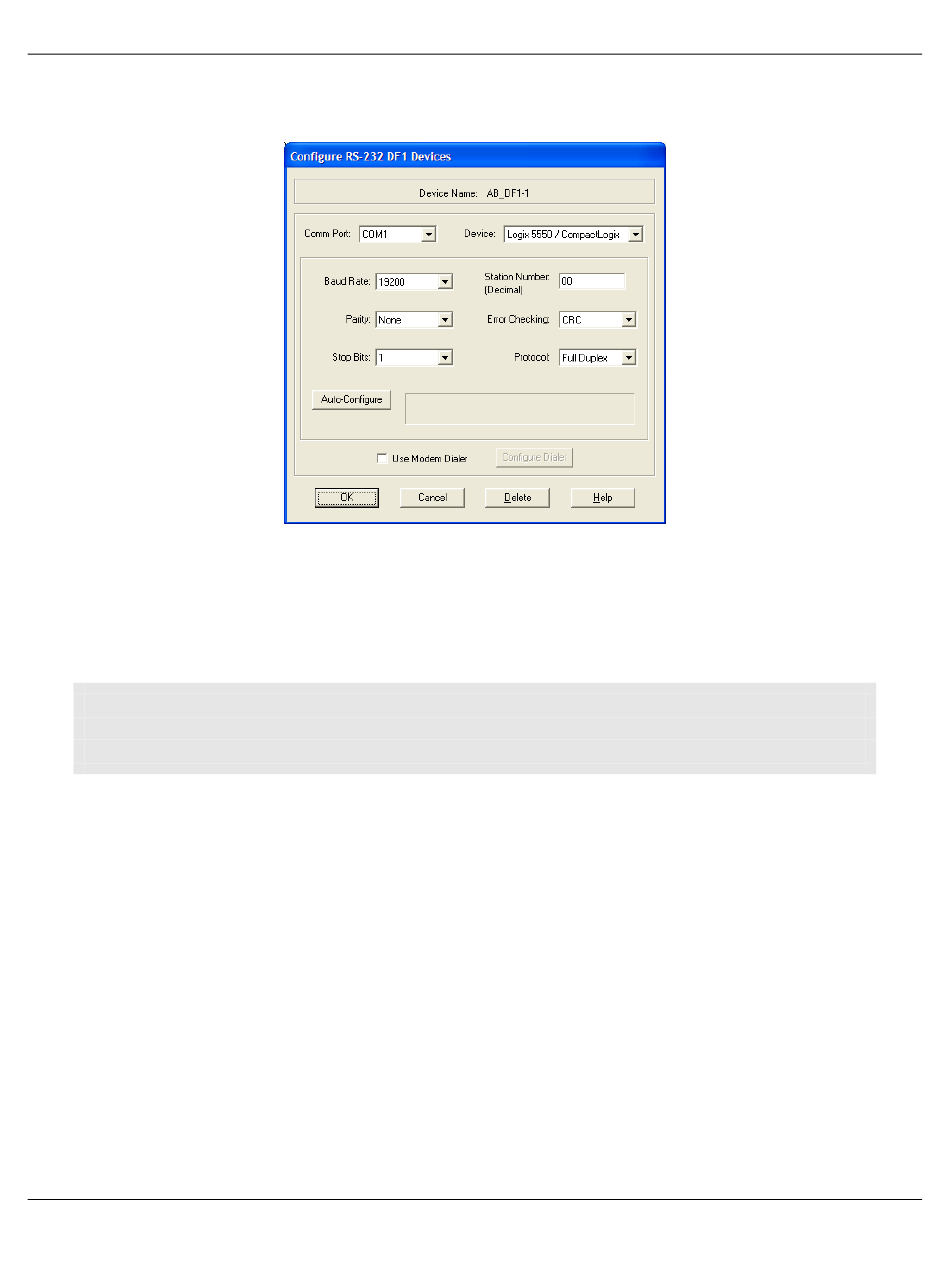

1 Click to select the driver, and then click C
RS-232 DF1 Devices dialog box.
2 Click the A
work with the selected driver.
3 When you see the message Auto Configuration Successful, click the OK button to
dismiss the dialog box.
Note: If the auto-configuration procedure fails, verify that the cables are connected correctly between the
processor and the serial port on your computer, and then try again. If you are still unable to auto-configure
the port, refer to your RSLinx documentation for further troubleshooting steps.
ProSoft Technology, Inc.
-C button. RSLinx will attempt to configure your serial port to
UTO ONFIGURE
. This action opens the Configure
ONFIGURE
Contents
User Manual
Page 31 of 83
