MVI69-GSC ♦ CompactLogix or MicroLogix Platform
Generic ASCII Serial Communication Module
3.1 Adding the Module to an Existing CompactLogix Project
Important: The following steps describe how to install and configure the MVI69-GSC module with RSLogix
5000 version 15 or older. If you are using RSLogix 5000 version 16, please refer to Sample Add-On
Instruction Import Procedure (page 15).
Important: The MVI69-GSC module has a power supply distance rating of 2 (L43 and L45 installations on
first 2 slots of 1769 bus)
If you are installing and configuring the module with a CompactLogix processor, follow
these steps. If you are using a MicroLogix processor, refer to the next section.

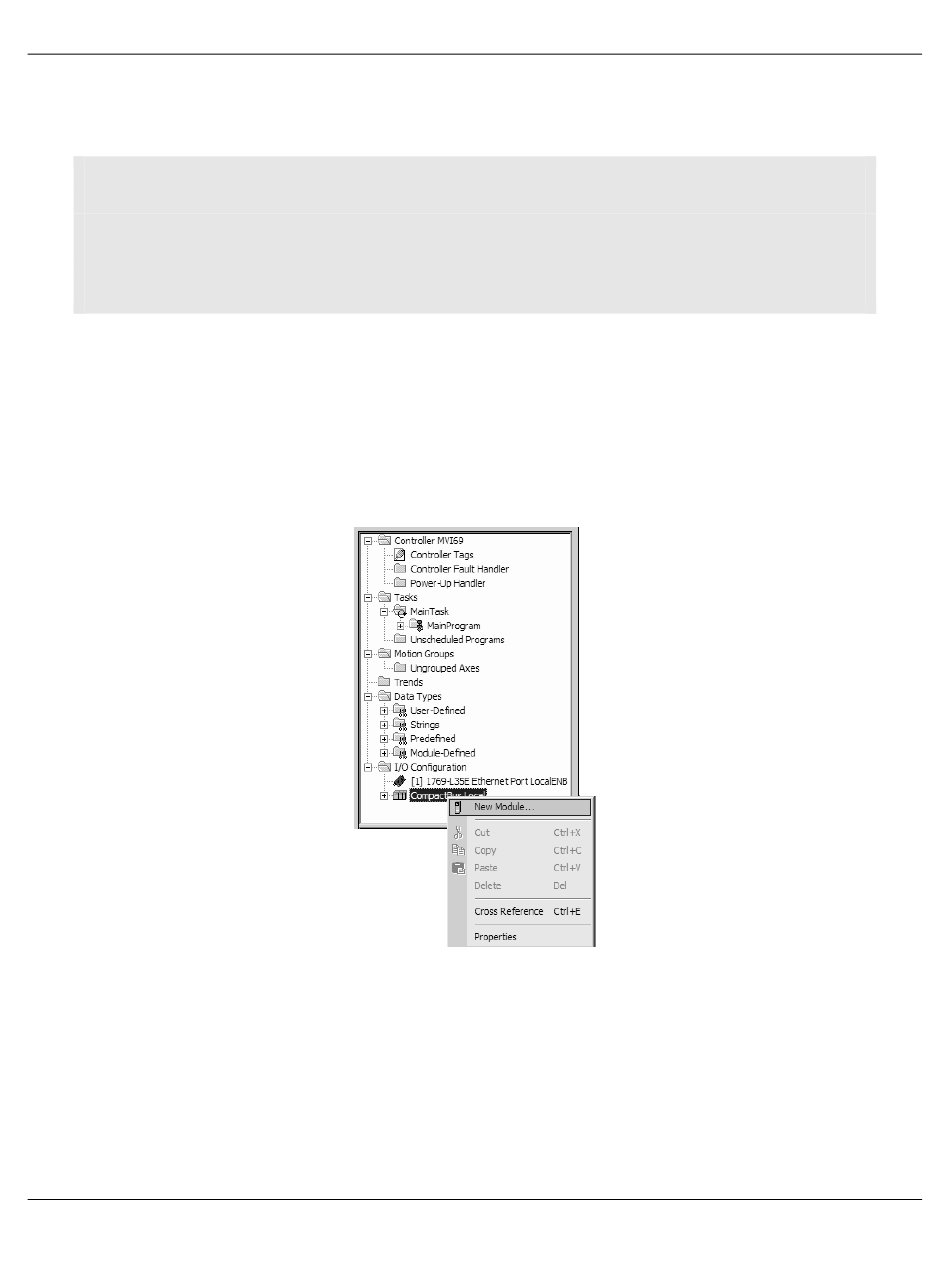

1 Add the MVI69-GSC module to the project. Right-click the mouse button on the
I/O Configuration option in the Controller Organization window to display a pop-up
menu. Select the New Module option from the I/O Configuration menu.
