2.3.1 Configuring the RSLinx Driver for the PC COM Port

If RSLogix is unable to establish communication with the processor, follow these steps.
1 Open RSLinx.
2 Open the C

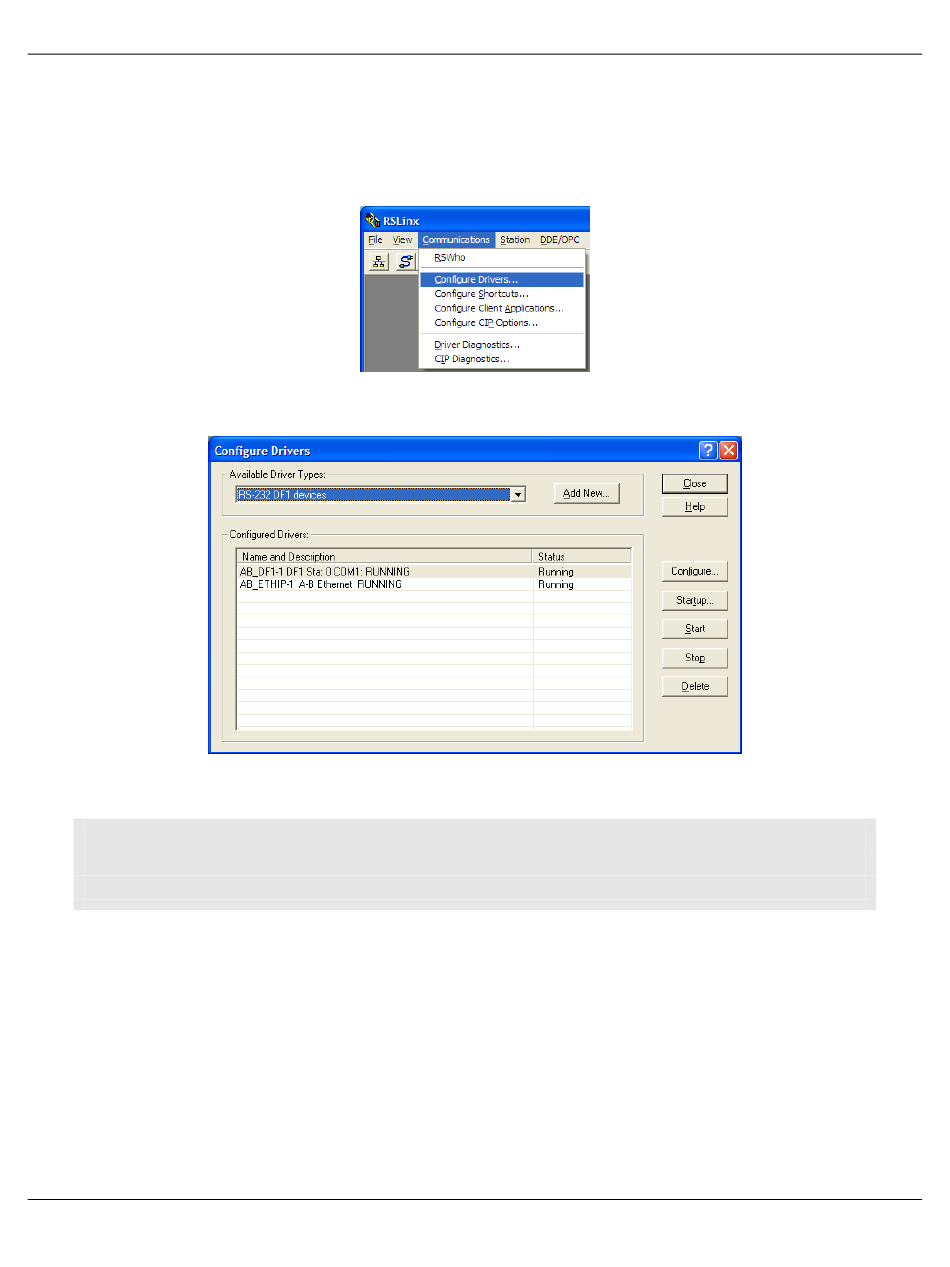

This action opens the Configure Drivers dialog box.
Note: If the list of configured drivers is blank, you must first choose and configure a driver from the Available
Driver Types list. The recommended driver type to choose for serial communication with the processor is
RS-232 DF1 Devices.
ProSoft Technology, Inc.
menu, and choose C
OMMUNICATIONS
D .
ONFIGURE RIVERS
