MVI69-GSC ♦ CompactLogix or MicroLogix Platform
Generic ASCII Serial Communication Module

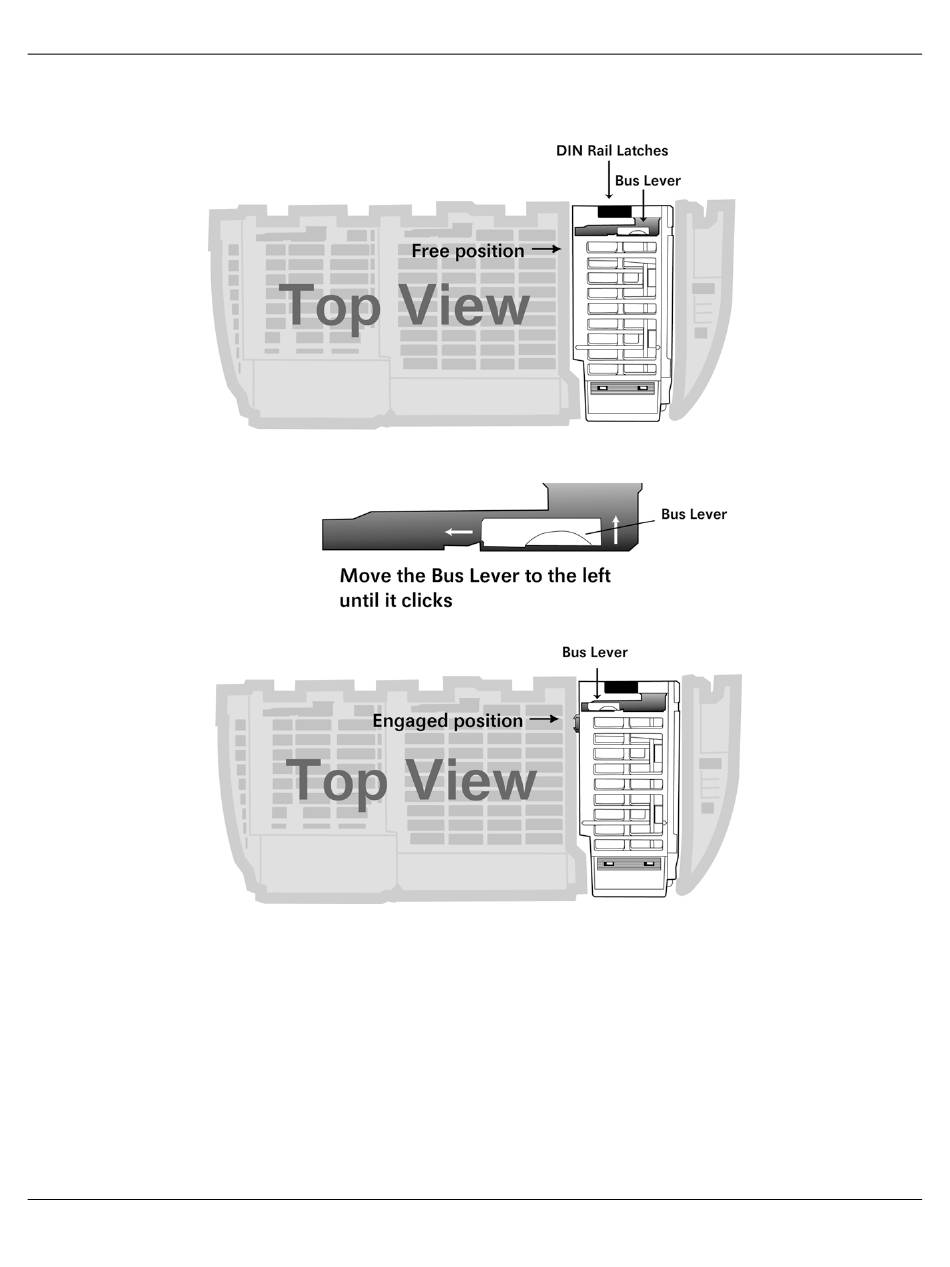

Push the module's bus lever back slightly to clear the positioning tab and move it
3
firmly to the left until it clicks. Ensure that it is locked firmly in place.
4
Close all DIN-rail latches.
ProSoft Technology, Inc.
Contents
User Manual
Page 12 of 83
